Flink Deployments

Updated Feb 27, 2022 ·

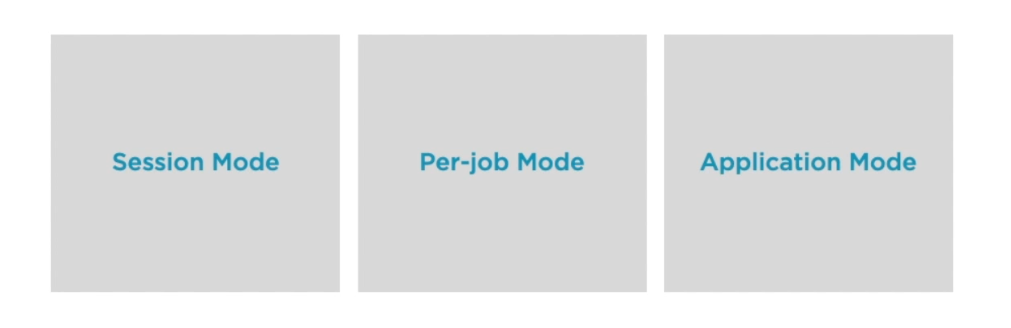

Deployment Modes​

A Flink application is any program that spawns a Flink job and executes these Flink jobs on either a virtual environment (local JVM) or a remote environment (remote cluster). There are three types of Flink clusters:

  • Flink Session Cluster
  • Flink Job Cluster
  • Flink Application Cluster

Previously known as Session mode, this cluster is a long-running, pre-existing cluster that can accept multiple job submissions.

  • continues to be alive even after jobs have completed
  • not bound to the lifetime of a particular job
  • all jobs share the same cluster, thus jobs compete for resources
  • TaskManager slots are allocated on job submission and release once job is complete
  • if a JobManager/TaskManager crashes, all jobs using this components will fail
  • having a pre-existing cluster saves time
  • useful for interactive short-duration queries

Previously known as Per-job mode, this cluster is specifically created for a particular job and is spun up by cluster manager such as YARN and Kubernetes.

  • each job will have its own Flink job cluster
  • once job finishes, cluster is torn down
  • jobs do not compete for resources since each has its own cluster
  • crash of TM/JM only affects the one job that uses them
  • provisiongin the cluster takes time
  • useful for jobs that run for hours or days
  • useful for jobs with high-stability requirements

Previously known as Application mode, this is a dedicated cluster for a Flink application. In this setup, the Flink code is executed on the cluster, not on the client.

  • cluster is closely tied to lifetime of application
  • onc application finishes, cluster is torn down
  • ResourceManager/Dispatcher is tied to one application

Deployment Targets​

There are various ways to deploy Flink:

  • Locally, for testing
  • Standalone, on VMs or baremetal servers
  • YARN, from Apache Hadoop's resource manager
  • Docker, for containerized Flink environment
  • Kubernetes, for automated containerized deployment
  • Mesos, for running distributed systems
