Rate Limiting

Updated Feb 05, 2023 ·

Overview

Rate limiting controls how often users can access your content.

• Limits how many requests a user can make in a set time
• Prevents server overload and abuse
• Commonly used for APIs to manage traffic

You can set rules like 50 requests every 100 seconds or 1 request per second. This helps keep your service stable and fair for all users.

How Rate Limiting Works

The middleware calculates the allowed request rate based on settings:

• Average requests allowed per time period
• Time period to count requests (seconds, minutes)
• Rate equals average requests divided by period

You can also customize limits by IP, host, or headers to allow or block certain users.

Lab: Throttling

This lab shows how to use rate limiting to protect your web app or API.

• Set a low request limit so refreshing a few times triggers the limit
• You set limits like "2 requests per second" to prevent abuse
• Observe what happens when the limit is reached

Rate limiting helps keep your platform running smoothly by blocking users who send too many requests too fast.

Clone the Repository

To try out the lab, clone the project repository from GitHub.

• Github repo: joseeden/labs-traefik

Clone and move into the project directory:

git clone https://github.com/joseeden/labs-traefik.git
cd labs-traefik/05-middleware/04-rate-limiting

Project structure:

05-middleware
├── 04-rate-limiting
│   ├── .gitignore
│   ├── docker-compose.ratelimit.yml
│   ├── traefik.yml
│   └── usersfile

Creating Passwords

For this lab, we'll use basic authentication, so we need a safe way to store user passwords. Passwords must be hashed before adding them to the users file.

To create hashed passwords, install the tool htpasswd:

sudo apt install -y apache2-utils

Here are example user credentials. You can change them if you want:

Username	Password
johnsmith	Thr3@tl3u3lw!dN!QHt
janedoe	@Ll!$szM3lLiND@h0oD

Generate a hash with this command:

htpasswd -nb johnsmith 'Thr3@tl3u3lw!dN!QHt'

You should see output like:

johnsmith:$apr1$cipim6NJ$LK11Xtf0t92UvxjKCV8ii0

Do the same for each user.

Next, create a file named usersfile in the same folder as your Docker compose file. Put all hashed credentials here, one user per line:

johnsmith:$apr1$cipim6NJ$LK11Xtf0t92UvxjKCV8ii0
janedoe:$apr1$t65c7tuF$Qscp40RYl.Tq02pUnSv5r1

Add usersfile to your .gitignore file to keep it out of version control:

.gitignore

usersfile

This usersfile will be used in the Docker compose setup next.

Configure the Docker Compose File

In the cloned repository, the docker-compose.ratelimit.yml file shows how the middleware is connected to the router along with others like basicauth and error pages.

This setup limits users to roughly 2 requests per second and blocks any extra requests beyond that.

docker-compose.ratelimit.yml

version: "3"

services:
  traefik:
    image: traefik:v2.3
    ports:
      - "80:80"
      - "443:443"
      - "8080:8080"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - ./traefik.yml:/etc/traefik/traefik.yml
      - ./usersfile:/usersfile:ro # <-- mount your users file here

  # Catapp service
  catapp:
    image: mikesir87/cats:1.0
    labels:
      - "traefik.enable=true"
      # Routers
      - "traefik.http.routers.catapp.rule=Host(`catapp.localhost`)"
      - "traefik.http.routers.catapp.service=catapp"
      - "traefik.http.routers.catapp.entrypoints=web"
      - "traefik.http.routers.catapp.middlewares=test-auth,test-compress,test-errorpages,test-ratelimit"
      # Services
      - "traefik.http.services.catapp.loadbalancer.server.port=5000"
      # Middleware BasicAuth using usersfile
      - "traefik.http.middlewares.test-auth.basicauth.usersfile=/usersfile"
      # Compress Middleware
      - "traefik.http.middlewares.test-compress.compress=true"
      # Error Pages Middleware
      - "traefik.http.middlewares.test-errorpages.errors.status=400-599"
      - "traefik.http.middlewares.test-errorpages.errors.service=error"
      - "traefik.http.middlewares.test-errorpages.errors.query=/{status}.html"
      # Rate Limit Middleware
      - "traefik.http.middlewares.test-ratelimit.ratelimit.average=2"

  # Error Page service
  error:
    image: guillaumebriday/traefik-custom-error-pages
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.error.rule=Host(`error.localhost`)"
      - "traefik.http.routers.error.service=error"
      - "traefik.http.services.error.loadbalancer.server.port=80"
      # - traefik.frontend.rule=PathPrefixStrip:/wait
      - "traefik.http.routers.error.entrypoints=web"

Deploy and Test

Deploy the stack with the rate limit config:

docker stack deploy -c docker-compose.ratelimit.yml traefik

Output:

Creating network traefik_default
Creating service traefik_traefik
Creating service traefik_catapp
Creating service traefik_error

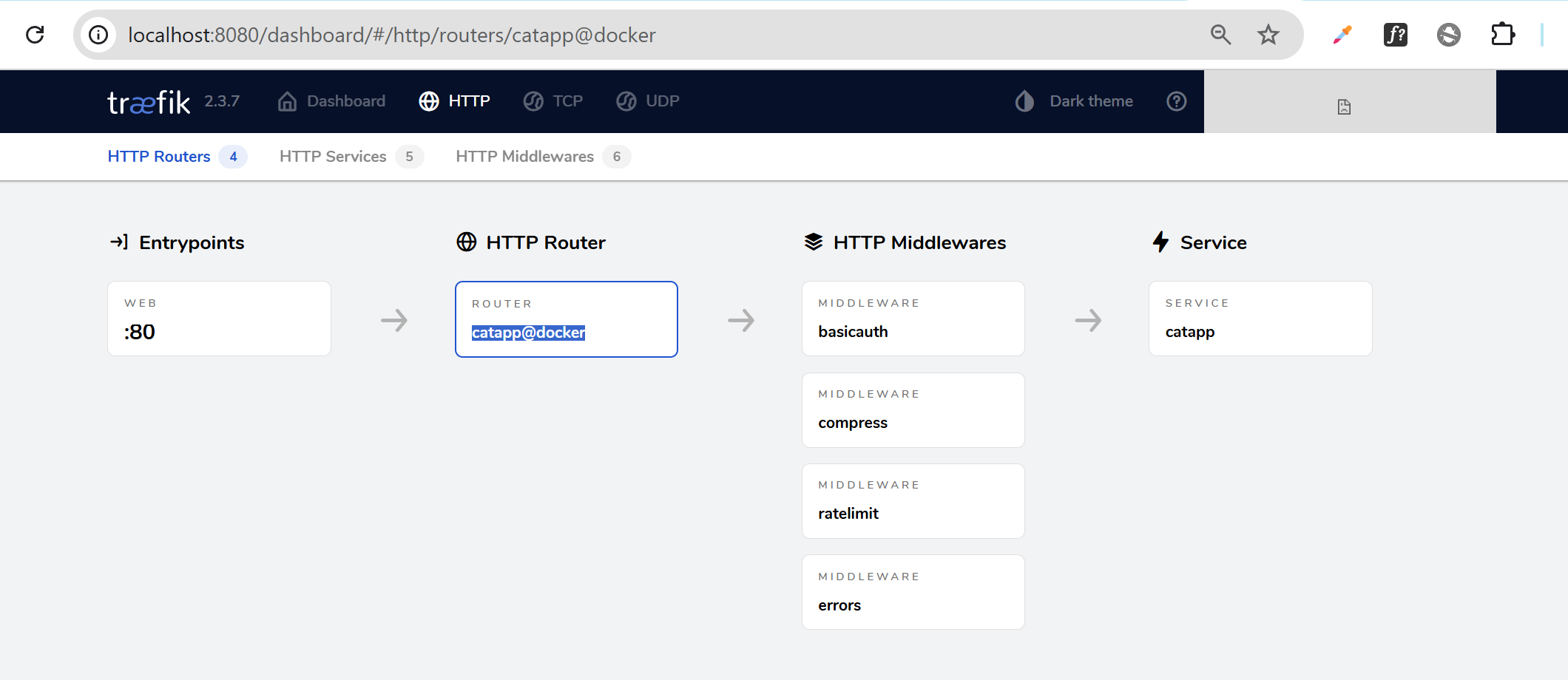

Check the dashboard, go to Routers, and click on catapp@docker. Confirm services and middlewares are running.

http://localhost:8080/

Open your app in a browser, log in, and try refreshing fast. You will see a message blocking too many requests if you refresh too quickly.

http://catapp.localhost/

Cleanup

Delete the deployed stack:

docker stack rm traefik

You can also delete the usersfile:

rm -f usersfile
