Install Keystone

Updated Sep 15, 2023 ·

Overview

Keystone is the identity service of OpenStack. It handles authentication and authorization for all other services. The steps include:

1. Configure SQL database
2. Install required packages
3. Update keystone.conf
4. Initialize Keystone
5. Configure Apache

Each step builds the identity service, which is the core access control of OpenStack.

info

NOTES: The hostnames of all the nodes in this lab are configured in the /etc/hosts file in each node (See Networking and Security).

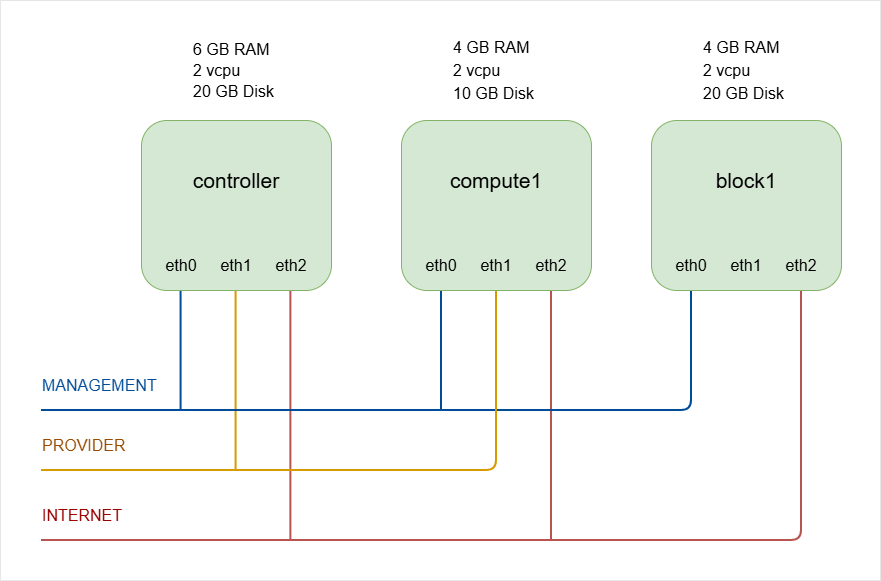

Lab diagram:

Configure MySQL Database

Start by preparing the database for Keystone. Log in as root on the controller node.

1. Loging to MySQL:

   sudo mysql

2. Create the database:

   CREATE DATABASE keystone;

   Output:

   Query OK, 1 row affected

   info

   Always end MySQL commands with a semicolon.

3. Grant privileges to the keystone user for local access:

   GRANT ALL PRIVILEGES ON keystone.- TO 'keystone'@'localhost' IDENTIFIED BY 'openstack';

   Output:

   Query OK, 0 row affected

4. Grant privileges for remote access:

   GRANT ALL PRIVILEGES ON keystone.- TO 'keystone'@'%' IDENTIFIED BY 'openstack';

   Output:

   Query OK, 0 row affected

5. Exit the database:

   exit

The database is now ready for Keystone, which completes the backend setup for identity management.

Install Required Packages

Install Keystone and its dependencies. Keystone runs as a WSGI module under Apache.

apt install -y keystone apache2 libapache2-mod-wsgi-py3 crudini

Packages installed:

• Keystone for identity management
• Apache2 as the HTTP server
• WSGI module for integration
• Crudini for easier configuration editing

After installation, the system is ready for configuration.

Configure Keystone Database Access

The main configuration file is:

/etc/keystone/keystone.conf

In this setup, we can use crudini to set the database connection in the [database] section.

This command sets the connection parameter:

crudini --set /etc/keystone/keystone.conf \
database connection mysql+pymysql://keystone:openstack@controller/keystone

Here, the openstack is the password:

keystone:openstack

Output: No visible output if successful.

This connects Keystone to the MySQL database created earlier.

Configure Token Provider

Set the token provider to fernet in the [token] section:

crudini --set /etc/keystone/keystone.conf token provider fernet

Output: No visible output if successful.

Fernet is the recommended token provider for secure identity tokens. This completes the main Keystone configuration.

Initialize Keystone

Populate the database using the keystone-manage tool.

1. Run the database sync as the keystone user:

   su -s /bin/sh -c "keystone-manage db_sync" keystone

2. Initialize Fernet keys:

   keystone-manage fernet_setup \
   --keystone-user keystone \
   --keystone-group keystone

3. Initialize credential keys:

   keystone-manage credential_setup \
   --keystone-user keystone \
   --keystone-group keystone

4. Bootstrap the identity service with admin credentials.

   keystone-manage bootstrap \
     --bootstrap-password openstack \
     --bootstrap-admin-url http://controller:5000/v3/ \
     --bootstrap-internal-url http://controller:5000/v3/ \
     --bootstrap-public-url http://controller:5000/v3/ \
     --bootstrap-region-id RegionOne

   This command sets:

   • Admin password (openstack)
   • Admin URL (port 35357) --> Use 5000
   • Internal URL (port 5000)
   • Public URL (port 5000)
   • Region name

   UPDATE: In modern deployments, port 35357 is not actually used anymore. Port 5000 is used for everything (public, internal, admin). If you use port 35357 for the admin URL, it will only create the endpoint records in the Keystone database but it will NOT configure Apache or bind Keystone to port 35357.

   You can verify this by running in the controller node:

   ss -ltnp | grep 35357

   If this shows nothing, then Keystone is NOT listening there.

Keystone is now initialized and ready to serve identity requests.

Configure Apache Server

Keystone runs through Apache. Set the ServerName in the Apache configuration file.

sudo vi /etc/apache2/apache2.conf

Add this line under global configuration:

#ServerRoot "/etc/apache2"
ServerName controller

Restart Apache:

sudo systemctl restart apache2
sudo systemctl status apache2

Keystone is now active and accessible via Apache. The identity service is fully installed and ready to authenticate OpenStack services.

Client Environment Scripts

Keystone is installed and the admin user exists. Now we prepare environment scripts so the OpenStack CLI can authenticate properly.

• Create one script per user
• Set required OS environment variables
• Secure the file because it contains passwords

Make sure to load the correct variables so the CLI can talk to Keystone correctly.

Create Admin Environment Script

First, create a script named admin-openrc in the home directory. This file is used for management tasks and will export the following variables:

cat > admin-openrc.sh <<EOF
export OS_PROJECT_DOMAIN_NAME=Default
export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=openstack
export OS_AUTH_URL=http://controller:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2
EOF

In the example above:

• OS_PASSWORD is the admin password set during bootstrap
• OS_AUTH_URL uses the admin endpoint on port 5000.

Restrict access because the password is stored in plain text.

chmod 600 admin-openrc.sh

This protects your credentials and completes the admin environment setup.

Test Admin Script

Load the variables using source. This executes all export statements in the file.

source admin-openrc.sh

Verify that the variable OS_USERNAME is set:

echo $OS_USERNAME

Output:

admin

Now test authentication by requesting a token from Keystone using the OpenStack CLI.

openstack token issue

Sample output:

+------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Field      | Value

   |
+------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| expires    | 2024-02-28T18:04:43+0000

   |
| id         | ********************************* |
| project_id | ********************

   |
| user_id    | ******************************

   |
+------------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+

You should see a token table with an ID, expiration time, project name, and user name.

If this works, Keystone and the admin environment are correctly configured.

Create Demo Environment Script

We'll also prepare a script for a regular user named demo. This script is used for regular user access. It will also use the public endpoint on port 5000.

Note: The distinction between admin and demo users is not the port, but rather the project, username, and password.

Example:

cat > demo-openrc.sh <<EOF
export OS_PROJECT_DOMAIN_NAME=Default
export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_NAME=demo
export OS_USERNAME=demo
export OS_PASSWORD=openstack
export OS_AUTH_URL=http://controller:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2
EOF

Set proper permissions again:

chmod 600 demo-openrc.sh

Before you can use the script, you will need to create the project, user, and role for demo. See next section.

Project, User, and Role

Now that Keystone is installed, we will create essential projects, users, and roles to use OpenStack. These are needed for both service operations and for testing OpenStack features.

Before anything else, make sure you source the admin script from the previous step:

source admin-openrc.sh

Create Service Project

Service users are created for nearly every OpenStack service, and they use this project as their primary project. The command below creates a project named service in domain default:

openstack project create \
--domain default \
--description "Service Project" service

Output:

+-------------+----------------------------------+
| Field       | Value                            |
+-------------+----------------------------------+
| description | Service Project                  |
| domain_id   | default                          |
| enabled     | True                             |
| id          | 297c43239a924e3b831dbd2cedb8f6d7 |
| is_domain   | False                            |
| name        | service                          |
| options     | {}                               |
| parent_id   | default                          |
| tags        | []                               |
+-------------+----------------------------------+

This ensures all service users have a dedicated project to operate in.

Create Demo Project

The demo project is used for testing and experimenting with OpenStack.

openstack project create \
--domain default \
--description "Demo Project" demo

Output:

+-------------+----------------------------------+
| Field       | Value                            |
+-------------+----------------------------------+
| description | Demo Project                     |
| domain_id   | default                          |
| enabled     | True                             |
| id          | 635187ee20ca40228ddef1bd4fb85600 |
| is_domain   | False                            |
| name        | demo                             |
| options     | {}                               |
| parent_id   | default                          |
| tags        | []                               |
+-------------+----------------------------------+

This project lets you safely explore OpenStack without affecting services.

Create Demo User

Now we create a demo user who will work within the demo project.

openstack user create \
--domain default \
--password-prompt demo

Note:

• Username is demo
• User belongs to domain default
• User is enabled and password does not expire

Provide a password when prompted:

User Password:
Repeat User Password:

Output:

+---------------------+----------------------------------+
| Field               | Value                            |
+---------------------+----------------------------------+
| domain_id           | default                          |
| enabled             | True                             |
| id                  | cb17f17c923e471f8eb380fd9a570921 |
| name                | demo                             |
| options             | {}                               |
| password_expires_at | None                             |
+---------------------+----------------------------------+

Create User Role

OpenStack uses role-based access control. Assigning a role defines what a user can do in a project.

openstack role create user

openstack role add \
--project demo \
--user demo user

Note:

• Assigns the user role to the demo user in the demo project
• No output is returned, but the role is active

Roles ensure users only have permissions suitable for their tasks.

Verify Setup

You can check the demo environment by sourcing the credentials and issuing a token.

source demo-openrc.sh
openstack token issue

Note:

• Demo user gets a token to interact with OpenStack
• Admin user has broader permissions compared to demo user

Listing users as demo:

openstack user list

As expected, this will return an error because the demo user is not authorized to see other users.

You are not authorized to perform the requested action: identity:list_users. (HTTP 403) (Request-ID: req-20f90292-4c0d-4ece-9223-191caa17e111)

Try with the admin user:

source admin-openrc.sh
openstack user list

Output:

+----------------------------------+-------+
| ID                               | Name  |
+----------------------------------+-------+
| 9deb02e4c0df40349976aaccd6a2683c | admin |
| cb17f17c923e471f8eb380fd9a570921 | demo  |
+----------------------------------+-------+

This demonstrates role-based access how different users have different permissions depending on their role.
