Data Encryption

Updated Jan 30, 2024 ·

Data-at-Rest Encryption​

Each type of data encryption serves a specific purpose and can be used individually or in combination to protect sensitive information from unauthorized access or disclosure.

  • FDE (Full Disk Encryption):

    • Encrypts entire hard drive, including OS and user data.
    • Data is encrypted when off, decrypted when turned on and used by user.
    • Guards against unauthorized access if device is lost.
    • Examples: BitLocker (Windows), FileVault (macOS).

  • Partition Encryption

    • Encrypts specific drive partitions.
    • Allows selective encryption, leaving other partitions unencrypted.
    • Useful for targeted data protection.

  • File Encryption

    • Encrypts individual files or folders.
    • Enables secure storage and sharing.
    • Examples: VeraCrypt, AES Crypt.

  • Volume Encryption

    • Encrypts entire volumes or logical drives.
    • Shields multiple partitions.
    • Common in enterprise setups.

  • Database Encryption

    • Encrypts data within databases.
    • Protects against unauthorized access.
    • Can be done at the column, row, or table level.

  • Record Encryption

    • Encrypts individual database records or fields.
    • Useful: multiple users with unequal permissions are accessing the same database.
    • Offers precise data protection.
    • Often used for compliance requirements.

Data-in-Transit Encryption​

Secures data while it's being transmitted over networks (or between two systems) to prevent interception or eavesdropping.

  • SSL/TLS

    • Establish secure connections between clients and servers over the internet.
    • Encrypts data exchange to ensure confidentiality and integrity.
    • Securing web traffic (HTTPS), email (SMTPS, IMAPS), and other internet protocols.

  • VPNs (Virtual Private Networks)

    • Encrypted tunnel between a user's device and a remote server or network.
    • Encrypts all traffic going through the tunnel, prevents interception or monitoring.
    • Remote access to corporate networks or for securing public Wi-Fi environments.
    • For more information, please see VPNs.

  • IPSec (Internet Protocol Security)

    • Suite of protocols; secure IP communications by encrypting and authenticating data packets.
    • End-to-end security for IP traffic, ensuring confidentiality, integrity, and authenticity.
    • Often used with VPNs to encrypt traffic between network segments.
    • For more information, please see IPSec

Data-in-Use Encryption​

Protects data while it's being accessed or used by applications or users.

  • Application level
    • Encryption implemented within applications.
    • Protect sensitive data during processing or manipulation.
  • Access Control
    • Controls access to data based on user permissions and authentication.
  • Secure Enclaves
    • Hardware-based secure areas for processing sensitive data.
    • Ensures isolation from other system components.
  • Intel Software Guard Extensions (SGX)
    • Hardware-based security technology for creating secure enclaves within the CPU.
    • Protect data from unauthorized access or modification.

Demo: AESCrypt​

As an example, we can try to use AESCrypt to encrypt a file. I'm running WSL 2 on my Windows laptop. To install AESCrypt on the terminal:

wget https://www.aescrypt.com/download/v3/linux/AESCrypt-GUI-3.11-Linux-x86_64-Install.gz
gunzip AESCrypt-GUI-3.11-Linux-x86_64-Install.gz
chmod +x AESCrypt-GUI-3.11-Linux-x86_64-Install
./AESCrypt-GUI-3.11-Linux-x86_64-Install

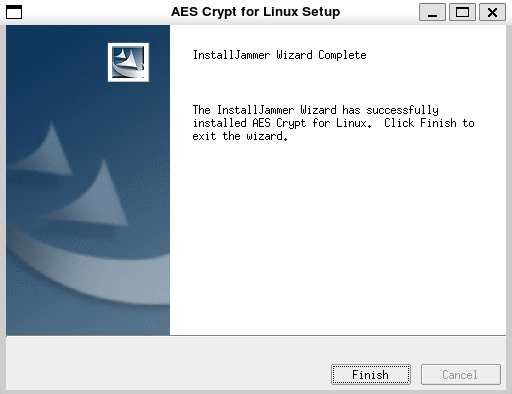

A window prompt will appear. Click Yes > Next > Next > Finish.

Going back to the terminal, type aescrypt then press tab.

$ aescrypt
aescrypt         aescrypt-gui     aescrypt_keygen

Create a sample with the following content:

$ cat test-file.txt
This is a file encrypted using aescrypt utility.
Once encrypted, the contents should become gibberish.

Encrypte the file using AESCrypt. Provide a password when prompted.

$ aescrypt -e test-file.txt
Enter password:
Re-Enter password:

A second file should be created. This is encrypted file. You can now delete the original file.

$ ll | grep test
-rwxrwxrwx 1 joseeden joseeden        103 Jul 19 20:19 test-file.txt*
-rwxrwxrwx 1 joseeden joseeden        404 Jul 19 20:21 test-file.txt.aes*

$ rm -rf test-file.txt

$ ll | grep test
-rwxrwxrwx 1 joseeden joseeden        404 Jul 19 20:21 test-file.txt.aes*

Check the encrypted file:

$ cat test-file.txt.aes
AESCREATED_BYaescrypt 3.11�r.�@j�x�;�eH�I�s���K���a�q�Y6�̵���9�:ĸS���w�4��P)\3O+���J��?2����fޘ_"o����x�R6�ن�xd�[/�$��y̙"bpL��-b��&�g-r��!�Z�J�����٩��3G�r�      P���p#�[Gp�og�c�EA�s    <R�g�in���̓ׄh��l���%�����`).
                                                                                            /��!h��
                                                                                                   �cv�ClYC?    ���1v�␦&U

To decrypt the file, use the aescrypt utility with the -d flag. Note that if you entered an incorrect password, you'll get this warning message:

$ aescrypt -d test-file.txt.aes
Enter password:
Error: Message has been altered or password is incorrect

Now provide the correct password. It will not return any response but it will create the original file.

$ aescrypt -d test-file.txt.aes

$ ll | grep test
-rwxrwxrwx 1 joseeden joseeden        103 Jul 19 21:04 test-file.txt*
-rwxrwxrwx 1 joseeden joseeden        404 Jul 19 20:21 test-file.txt.aes*

$ cat test-file.txt
This is a file encrypted using aescrypt utility.
Once encrypted, the contents should become gibberish.

Demo: FileVault​

For MacOS, we can use the FileVault utility. Go to System Preferences > Security & Privacy > FileVault. Note that is on by default.

Encrypting USB Flash drives​

Encrypting USB flash drives helps protect sensitive data if the drive is lost or stolen.

  • Users may be asked for a passphrase when the drive is connected
  • A smart card might be required to unlock the drive

The drive can still be formatted without the passphrase, but the data remains protected Encryption prevents access to the contents, not the ability to erase the drive.
