Outer Joins

Updated Aug 28, 2019 ·

Sample Tables

Here is the schema for the sample leaderships table:

To download the actual files, you can get them from my Github repository.

• states.csv
• presidents.csv
• prime_ministers.csv
• prime_minister_terms.csv
• monarchs.csv

LEFT JOIN

LEFT JOIN lets you retrieve records from both tables even if there’s no match on the joining field. It returns all records from the left table and the matching records from the right table.

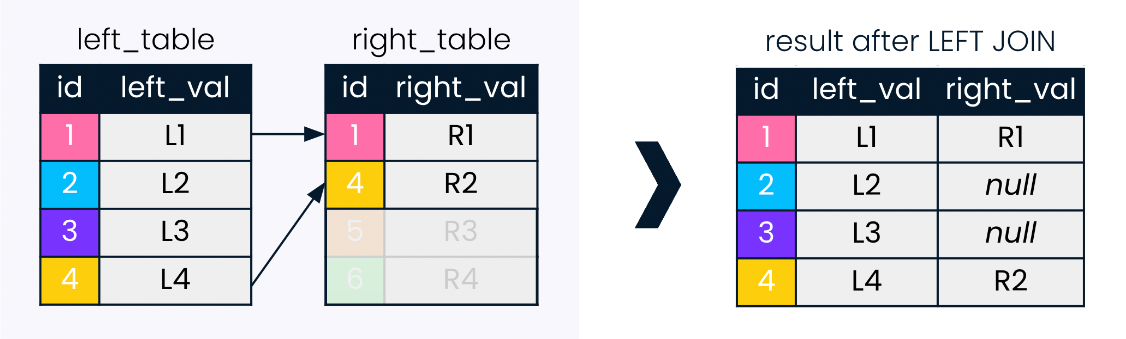

From the example above, we can see that the result of a LEFT JOIN on the id field shows that it includes all records from the left table. On the other hand, an INNER JOIN will only return the records with matches.

Syntax:

SELECT *
FROM left_table
LEFT JOIN right_table
ON left_table.id = right_table.id;

Using the tables in the leadership database, if we want to include all countries with prime ministers and optionally presidents, LEFT JOIN is appropriate. The syntax is similar to INNER JOIN, just replace INNER with LEFT. LEFT JOIN can also be written as LEFT OUTER JOIN.

• The syntax is similar to INNER JOIN; use LEFT instead of INNER.
• It returns null values for missing matches.
• LEFT JOIN can also be written as LEFT OUTER JOIN.

Query:

SELECT p1.country, prime_minister, president
FROM prime_ministers AS p1
LEFT JOIN presidents AS p2
USING (country);

Output:

prime_minister	president
United Kingdom	NULL
Canada	NULL
Australia	NULL
India	Ram Nath Kovind
Japan	NULL
Germany	Frank-Walter Steinmeier
Italy	Sergio Mattarella
South Africa	NULL
New Zealand	NULL
Spain	NULL
Belgium	NULL
Sweden	NULL

RIGHT JOIN

RIGHT JOIN is less commonly used compared to LEFT JOIN. RIGHT JOIN keeps all records from the right table, even if there are no matches in the left table.

• RIGHT JOIN includes all records from the right table.
• Null values are returned for unmatched records from the left table.
• RIGHT JOIN can also be written as RIGHT OUTER JOIN.

The syntax for RIGHT JOIN follows a similar pattern to LEFT JOIN but reverses the roles of the tables. It can also be written as RIGHT OUTER JOIN.

Syntax:

SELECT *
FROM left_table
RIGHT JOIN right_table
ON left_table.id = right_table.id;

In the leadership table example, performing a RIGHT JOIN between prime ministers and presidents will include null values where countries have presidents but no prime ministers.

Query:

SELECT p1.country, prime_minister, president
FROM prime_ministers AS p1
RIGHT JOIN presidents AS p2
USING (country);

Output:

country	prime_minister	president
USA	NULL	Joe Biden
France	NULL	Emmanuel Macron
South Korea	NULL	Moon Jae-in
India	Narendra Modi	Ram Nath Kovind
Germany	Angela Merkel	Frank-Walter Steinmeier
Italy	Mario Draghi	Sergio Mattarella
Brazil	NULL	Jair Bolsonaro
Mexico	NULL	Andrés Manuel López Obrador
China	NULL	Xi Jinping
Russia	NULL	Vladimir Putin

LEFT JOIN vs. RIGHT JOIN

While both LEFT JOIN and RIGHT JOINs are useful, RIGHT JOIN is less common because it can always be converted to a LEFT JOIN.

• LEFT JOIN is often more intuitive
• Due to the natural left-to-right flow of writing and reading queries.
• RIGHT JOIN is less commonly used as LEFT JOIN can achieve the same results.

More Examples

The World Economies database contain the tables below. To limit the number of results in the examples, each table only has 20 records.

countries table

code	name	continent	region	surface_area	indep_year	local_name	gov_form	capital	cap_long	cap_lat
AFG	Afghanistan	Asia	Southern and Central Asia	652090	1919	Afganistan/Afqanestan	Islamic Emirate	Kabul	69.1761	34.5228
NLD	Netherlands	Europe	Western Europe	41526	1581	Nederland	Constitutional Monarchy	Amsterdam	4.89095	52.3738
ALB	Albania	Europe	Southern Europe	28748	1912	Shqiperia	Republic	Tirane	19.8172	41.3317
DZA	Algeria	Africa	Northern Africa	2381740	1962	Al-Jaza’ir/Algerie	Republic	Algiers	3.05097	36.7397
ASM	American Samoa	Oceania	Polynesia	199	null	Amerika Samoa	US Territory	Pago Pago	-170.691	-14.2846
AND	Andorra	Europe	Southern Europe	468	1278	Andorra	Parliamentary Coprincipality	Andorra la Vella	1.5218	42.5075
AGO	Angola	Africa	Central Africa	1246700	1975	Angola	Republic	Luanda	13.242	-8.81155
ATG	Antigua and Barbuda	North America	Caribbean	442	1981	Antigua and Barbuda	Constitutional Monarchy	Saint John's	-61.8456	17.1175
ARE	United Arab Emirates	Asia	Middle East	83600	1971	Al-Imarat al-´Arabiya al-Muttahida	Emirate Federation	Abu Dhabi	54.3705	24.4764
ARG	Argentina	South America	South America	2780400	1816	Argentina	Federal Republic	Buenos Aires	-58.4173	-34.6118
ARM	Armenia	Asia	Middle East	29800	1991	Hajastan	Republic	Yerevan	44.509	40.1596
ABW	Aruba	North America	Caribbean	193	null	Aruba	Nonmetropolitan Territory of The Netherlands	Oranjestad	-70.0167	12.5167
AUS	Australia	Oceania	Australia and New Zealand	7741220	1901	Australia	Constitutional Monarchy, Federation	Canberra	149.129	-35.282
AZE	Azerbaijan	Asia	Middle East	86600	1991	Azarbaycan	Federal Republic	Baku	49.8932	40.3834
BHS	Bahamas	North America	Caribbean	13878	1973	The Bahamas	Constitutional Monarchy	Nassau	-77.339	25.0661
BHR	Bahrain	Asia	Middle East	694	1971	Al-Bahrayn	Monarchy (Emirate)	Manama	50.5354	26.1921
BGD	Bangladesh	Asia	Southern and Central Asia	143998	1971	Bangladesh	Republic	Dhaka	90.4113	23.7055
BRB	Barbados	North America	Caribbean	430	1966	Barbados	Constitutional Monarchy	Bridgetown	-59.6105	13.0935
BEL	Belgium	Europe	Western Europe	30518	1830	Belgie/Belgique	Constitutional Monarchy, Federation	Brussels	4.36761	50.8371
BLZ	Belize	North America	Central America	22696	1981	Belize	Constitutional Monarchy	Belmopan	-88.7713	17.2534

cities table

name	country_code	city_proper_pop	metroarea_pop	urbanarea_pop
Abidjan	CIV	4765000	null	4765000
Abu Dhabi	ARE	1145000	null	1145000
Abuja	NGA	1235880	6000000	1235880
Accra	GHA	2070463	4010054	2070463
Addis Ababa	ETH	3103673	4567857	3103673
Ahmedabad	IND	5570585	null	5570585
Alexandria	EGY	4616625	null	4616625
Algiers	DZA	3415811	5000000	3415811
Almaty	KAZ	1703481	null	1703481
Ankara	TUR	5271000	4585000	5271000
Auckland	NZL	1495000	1614300	1495000
Baghdad	IRQ	7180889	null	7180889
Baku	AZE	3202300	4308740	3202300
Bandung	IDN	2575478	6965655	2575478
Bangkok	THA	8280925	14998000	8280925
Barcelona	ESP	1604555	5375774	1604555
Barranquilla	COL	1386865	2370753	1386865
Basra	IRQ	2750000	null	2750000
Beijing	CHN	21516000	24900000	21516000
Belo Horizonte	BRA	2502557	5156217	2502557

economies table

econ_id	code	year	income_group	gdp_percapita	gross_savings	inflation_rate	total_investment	unemployment_rate	exports	imports
1	AFG	2010	Low income	539.667	37.133	2.179	30.402	null	46.394	24.381
2	AFG	2015	Low income	615.091	21.466	-1.549	18.602	null	-49.11	-7.294
3	AGO	2010	Upper middle income	3599.27	23.534	14.48	14.433	null	-3.266	-21.076
4	AGO	2015	Upper middle income	3876.2	-0.425	10.287	9.552	null	6.721	-21.778
5	ALB	2010	Upper middle income	4098.13	20.011	3.605	31.305	14	10.645	-8.013
6	ALB	2015	Upper middle income	3943.22	13.84	1.896	24.598	17.1	1.827	0.574
7	ARE	2010	High income	34628.63	27.073	0.878	27.372	null	3.843	-0.981
8	ARE	2015	High income	38649.91	34.106	4.07	27.477	null	7.32	2.17
9	ARG	2010	Upper middle income	10412.95	17.361	10.461	17.706	7.75	13.931	39.877
10	ARG	2015	Upper middle income	14643.92	14.111	null	16.89	null	-1.658	3.105
11	ARM	2010	Lower middle income	3121.78	15.797	7.274	29.419	19	30.183	4.09
12	ARM	2015	Lower middle income	3520.95	18.306	3.731	20.956	18.5	15.729	-9.647
13	ATG	2010	High income	13531.78	13.398	3.37	null	null	-3.241	-14.113
14	ATG	2015	High income	15155.16	18.754	0.969	null	null	6.026	-24.307
15	AUS	2010	High income	56362.84	23.584	2.863	27.089	5.208	5.782	15.208
16	AUS	2015	High income	51363.9	22.111	1.461	26.304	6.058	6.022	1.99
17	AUT	2010	High income	46757.13	25.521	1.694	22.654	4.8	13.84	11.989
18	AUT	2015	High income	43749.55	25.353	0.81	23.507	5.75	3.558	3.382
19	AZE	2010	Upper middle income	5847.26	46.567	5.666	18.532	6.048	-1.792	-1.459
20	AZE	2015	Upper middle income	5396.41	26.4	4.049	26.783	6.048	4.08	0.186

To download the actual files, you can get them from my Github repository.

• countries.csv
• cities.csv
• economies.csv

Left Join

1. Perform an inner join with cities AS c1 on the left and countries as c2 on the right. Use code as the field to merge your tables on.

   Solution

   Run the command below:

   SELECT
       c1.name AS city,
       code,
       c2.name AS country,
       region,
       city_proper_pop
   FROM cities AS c1
   INNER JOIN countries AS c2
   ON c1.country_code = c2.code
   ORDER BY code DESC;

   Output (some records may not shown):

   city	code	country	region	city_proper_pop
   Harare	ZWE	Zimbabwe	Eastern Africa	1606000
   Lusaka	ZMB	Zambia	Eastern Africa	1742979
   Cape Town	ZAF	South Africa	Southern Africa	3740026
   Johannesburg	ZAF	South Africa	Southern Africa	4434827
   Durban	ZAF	South Africa	Southern Africa	3442361
   Ekurhuleni	ZAF	South Africa	Southern Africa	3178470
   Sana'a	YEM	Yemen	Middle East	1937451
   Ho Chi Minh City	VNM	Vietnam	Southeast Asia	7681700
   Hanoi	VNM	Vietnam	Southeast Asia	6844100
   Caracas	VEN	Venezuela	South America	1943901
   Maracaibo	VEN	Venezuela	South America	1599940
   Tashkent	UZB	Uzbekistan	Southern and Central Asia	2309600
   Chicago	USA	United States	North America	2695598
   Los Angeles	USA	United States	North America	3884307
   Philadelphia	USA	United States	North America	1567872
   Phoenix	USA	United States	North America	1563025

2. Change the code to perform a LEFT JOIN instead of an INNER JOIN. After executing this query, have a look at how many records the query result contains.

   Solution

   Run the command below:

   SELECT
       c1.name AS city,
       code,
       c2.name AS country,
       region,
       city_proper_pop
   FROM cities AS c1
   LEFT JOIN countries AS c2
   ON c1.country_code = c2.code
   ORDER BY code DESC;

   Output (some records may not shown):

   city	code	country	region	city_proper_pop
   Taichung	null	null	null	2752413
   Tainan	null	null	null	1885252
   Kaohsiung	null	null	null	2778918
   Bucharest	null	null	null	1883425
   Taipei	null	null	null	2704974
   New Taipei City	null	null	null	3954929
   Harare	ZWE	Zimbabwe	Eastern Africa	1606000
   Lusaka	ZMB	Zambia	Eastern Africa	1742979
   Cape Town	ZAF	South Africa	Southern Africa	3740026
   Ekurhuleni	ZAF	South Africa	Southern Africa	3178470
   Durban	ZAF	South Africa	Southern Africa	3442361
   Johannesburg	ZAF	South Africa	Southern Africa	4434827

3. Order the result set by the average GDP per capita from highest to lowest. Return only the first 10 records in your result.

   Solution

   Run the command below:

   SELECT region, AVG(gdp_percapita) AS avg_gdp
   FROM countries AS c
   LEFT JOIN economies AS e
   USING(code)
   WHERE year = 2010
   GROUP BY region
   ORDER BY avg_gdp DESC
   LIMIT 10;

   Output (some records may not shown):

   Region	Avg_GDP
   Western Europe	58130.96149553572
   Nordic Countries	57073.99765625
   North America	47911.509765625
   Australia and New Zealand	44792.384765625
   British Islands	43588.330078125
   Eastern Asia	24962.8076171875
   Southern Europe	22926.410910866478
   Middle East	18204.641515395222
   Baltic Countries	12631.029947916666
   Caribbean	11413.339454064002

Right Join

1. Write a new query using RIGHT JOIN that produces an identical result to the LEFT JOIN provided.

   Solution

   Run the command below:

   SELECT countries.name AS country, languages.name AS language, percent
   FROM languages
   RIGHT JOIN countries
   USING(code)
   ORDER BY language;

   Output (some records may not shown):

   Country	Language	Percent
   Ethiopia	Afar	1.7
   Djibouti	Afar	null
   Eritrea	Afar	null
   Namibia	Afrikaans	10.4
   South Africa	Afrikaans	13.5
   Ghana	Akyem	3.2
   Albania	Albanian	98.8
   Macedonia	Albanian	25.1
   Switzerland	Albanian	3
   France	Alsatian	null
   Honduras	Amerindian	null
