Overview

Microsoft Graph provides a single API endpoint to access Microsoft 365 data, including emails, calendars, files, Teams, and Entra ID information.

• Simplifies authentication and development
• Works with Outlook, Teams, OneDrive, and Entra ID
• Integrate multiple services without managing separate connections

info

Microsoft Graph is related to IAM, but it is not an IAM service by itself. It acts as an API layer that provides access to identity and access management data and operations.

Through Microsoft Graph, applications can interact programmatically with identity data stored in Microsoft Entra ID, which is the core IAM service in Azure.

Because of this integration, Microsoft Graph is commonly used to automate IAM tasks such as managing users, groups, and roles.

Accessing Microsoft Graph

To access Microsoft Graph, open a web browser and navigate to:

https://aka.ms/ge

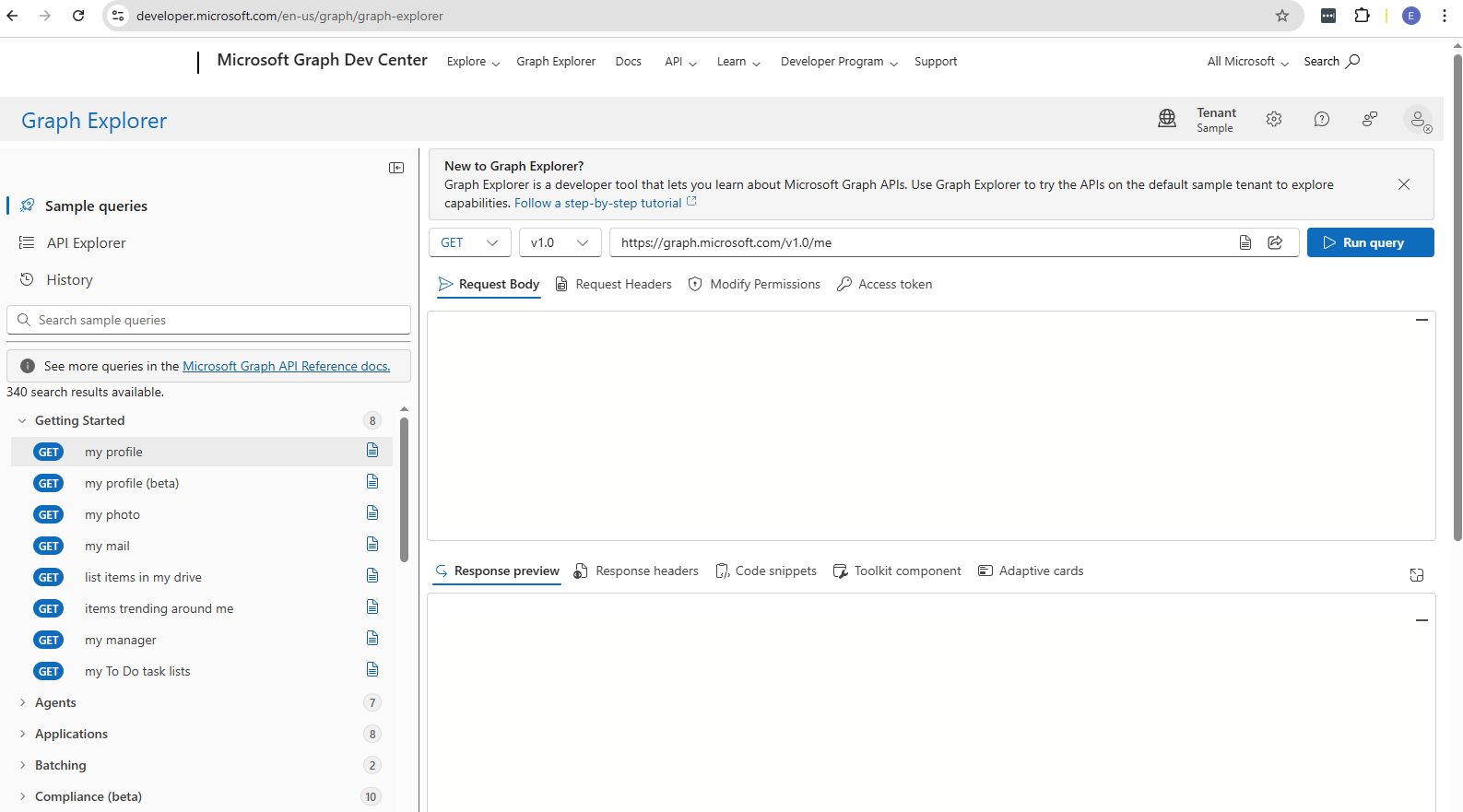

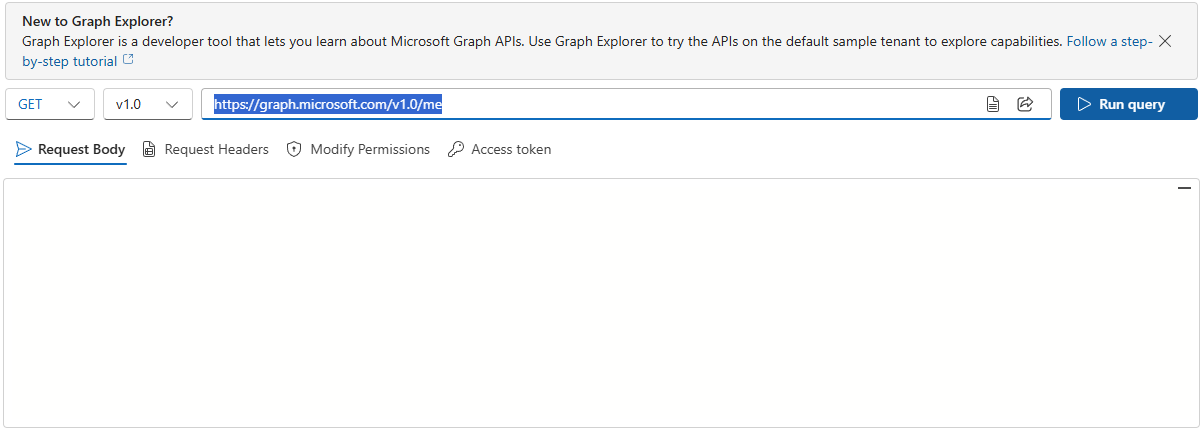

It should bring you to this page:

info

Even without signing in, you can explore a sample tenant and see mock data. When signed in, you get access to your own Microsoft 365 data, such as your profile, messages, calendar events, and more, all based on your permissions.

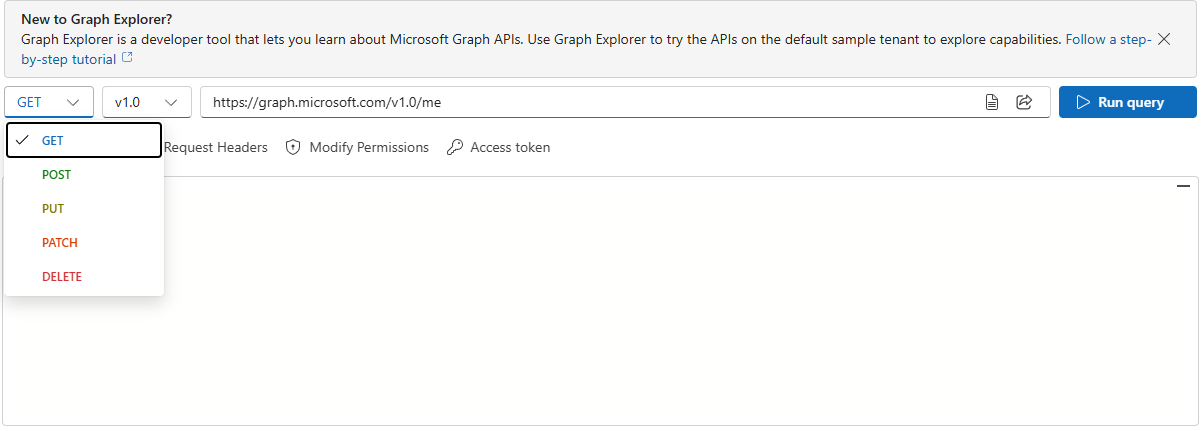

Click the dropdown menu to choose the HTTP method, such as GET, POST, PATCH, or DELETE, depending on whether you want to fetch, create, or update data.

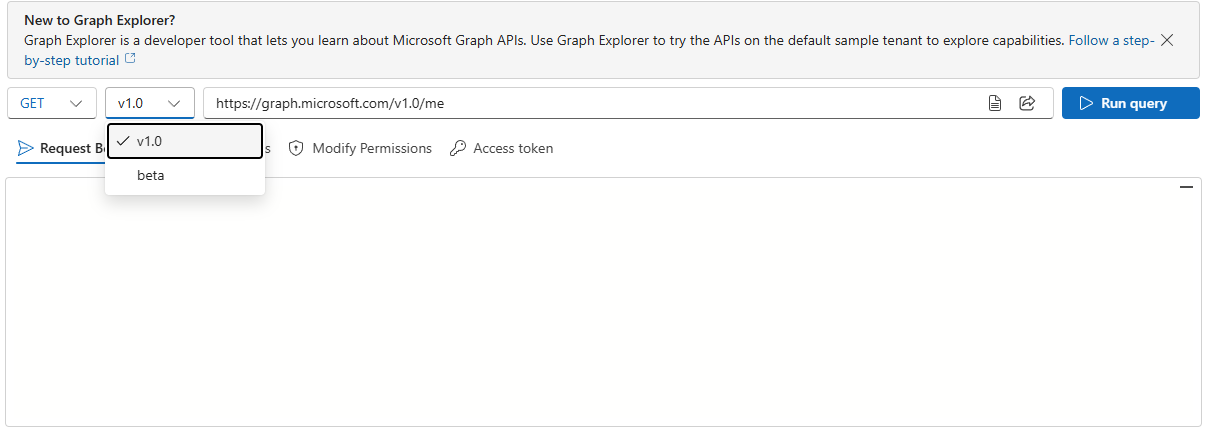

Next to it, the version dropdown is usually set to v1.0, the stable production version, but you can switch to beta to test new features.

The API URL box is where you enter the endpoint you want to query, and the Run Query button executes the request to show the response below.

On the left-hand side, you’ll find a list of sample queries. Clicking one automatically fills in the method, URL, and request body if needed. This saves time and helps you learn common operations without starting from scratch.

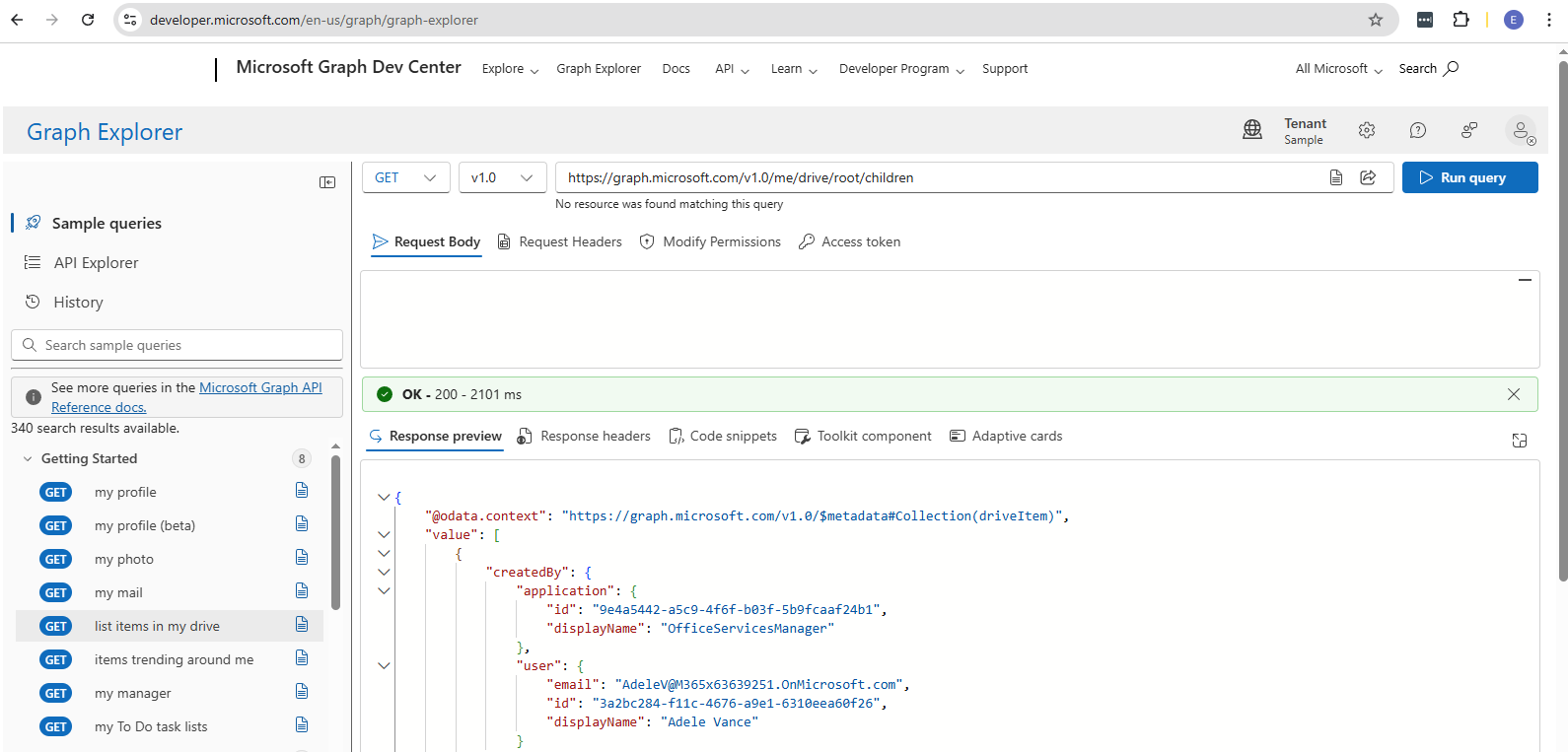

Click Run query. If it's successful, you should see the OK - 200 message and the response in the Response preview field.

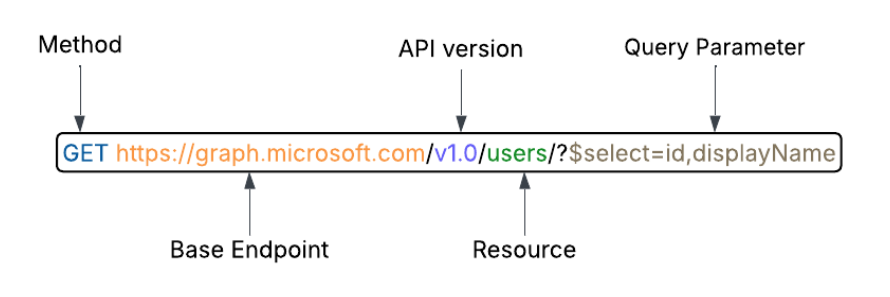

Anatomy of a Graph API Call

Microsoft Graph API allows you to interact with Microsoft Cloud resources using a single endpoint.

Each request consists of several components:

Component	Description	Example
HTTP method	Defines the action	GET, POST, PUT, PATCH, DELETE
Version	Specifies the API version	v1.0, beta
Resource	Identifies the data	/users, /groups, /events
Query parameters	Filter or select specific data	?$filter=displayName eq 'Max'
Headers	Carry metadata like Authorization tokens	Authorization: Bearer <token>

HTTP Methods

HTTP methods define what action you want to perform with the API.

HTTP Method	Description	Example
GET	Retrieves data	Get user information
POST	Creates new data	Add a calendar event
PUT	Replaces data entirely	Replace a document
PATCH	Updates specific fields	Edit a user profile
DELETE	Removes data	Delete a file or user

Versioning

Microsoft Graph has two main versions:

Version	HTTP Link	Description	Example / Use Case
v1.0	https://graph.microsoft.com/v1.0	Stable, production-ready APIs	Retrieve user data in production
Beta	https://graph.microsoft.com/beta	Preview features, may change; for testing only	Test new API features before release

Choosing the right version ensures your app runs reliably in production while allowing testing of new features in beta.

Resources

A resource is the data you work with in Microsoft Graph.

Examples:

• /users for user details
• /groups for group information
• /events for calendar events

Resources define the target of your API calls and determine the data you can access.

Query Parameters

Query parameters customize your API requests.

Examples:

• $select chooses specific fields, like id
• $filter narrows results based on conditions
• $top limits the number of results, e.g., first 5 users

Parameters help you retrieve exactly the data you need without extra overhead.

Headers

Headers provide metadata for requests and responses.

There are two types: Standard headers and API-specific headers.

Header Type	Header Name	Description / Use Case	Example
Standard headers	Authorization	Secure access	Authorization: Bearer <token>
Standard headers	Content-Type	Specifies data format	Content-Type: application/json
API-specific	Retry-After	Indicates when to retry after throttling	Retry-After: 120
API-specific	Location	Tracks long-running operations	Location: https://graph.microsoft.com/...

Headers ensure requests and responses are secure, formatted correctly, and provide necessary control information.

Advanced Microsoft Graph

Pagination

Microsoft Graph can handle large datasets efficiently by splitting results into smaller pages. Pagination makes responses faster and prevents timeouts.

Category	Server-side Pagination	Client-side Pagination
Page size	Uses default page size	You can specify number of items per page
Control	Managed by Graph	Controlled by the client
Use case	Quick access without extra setup	When you need custom page sizes or offsets

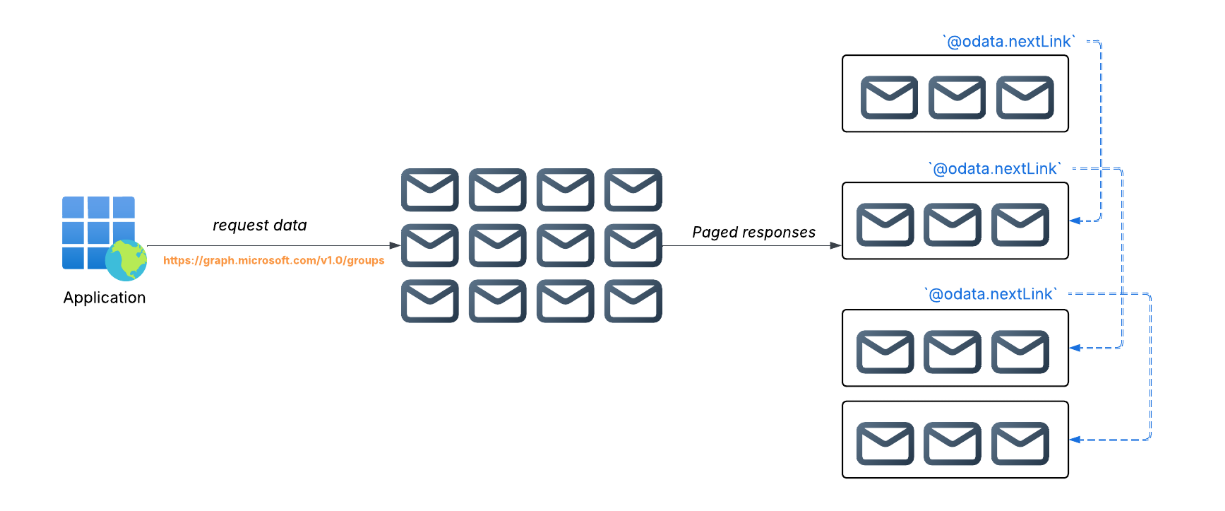

Server-side pagination returns a default number of items per page without specifying size.

For example:

GET /users

This returns 100 users per page. If more exist, Graph provides a continuation link called @odata.nextLink to fetch the next page.

Client-side pagination lets you set the number of items per page using query parameters like $top for page size and $skip to start after a certain number of items.

For example, to fetch two groups per page:

GET /groups?$top=2

Pagination ensures large datasets can be handled efficiently while keeping processing manageable.

Batching

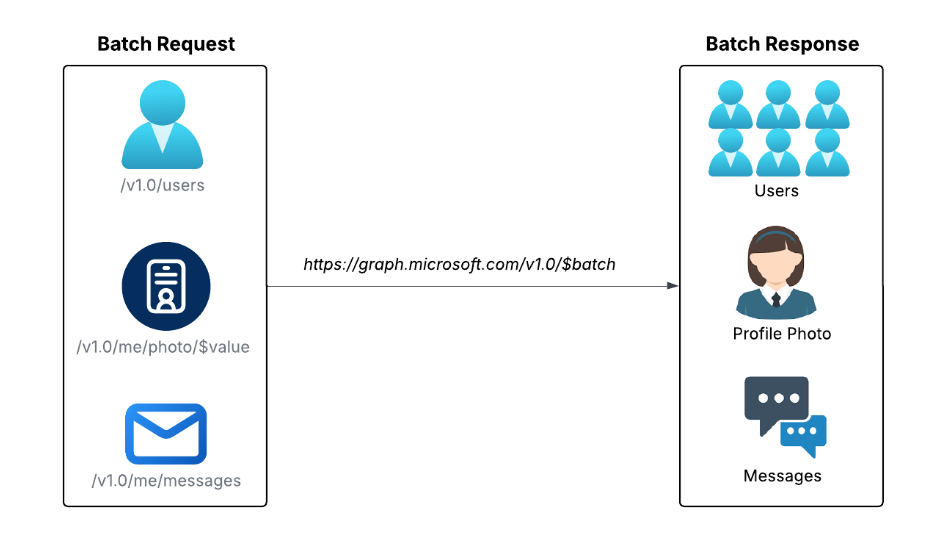

Batching allows combining multiple API requests into a single call. This reduces network trips and improves performance.

A single batch can include up to 20 requests. Each request in a batch has an:

• id
• method
• url
• Optional headers/body

To send a batch request:

POST /$batch
Content-Type: application/json

{
  "requests": [
    {
      "id": "1",
      "method": "GET",
      "url": "/users"
    },
    {
      "id": "2",
      "method": "GET",
      "url": "/groups"
    }
  ]
}

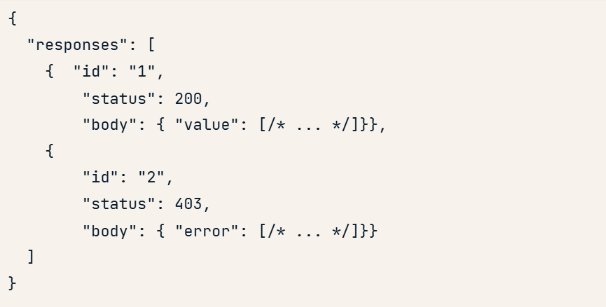

The response includes an array of responses, each with id, status, headers, and body containing data or errors.

info

Both pagination and batching help manage large datasets and multiple requests efficiently while keeping network traffic low and responses easy to handle.
