Analyzing DNS

Updated Jan 16, 2018 ·

How DNS Communicates

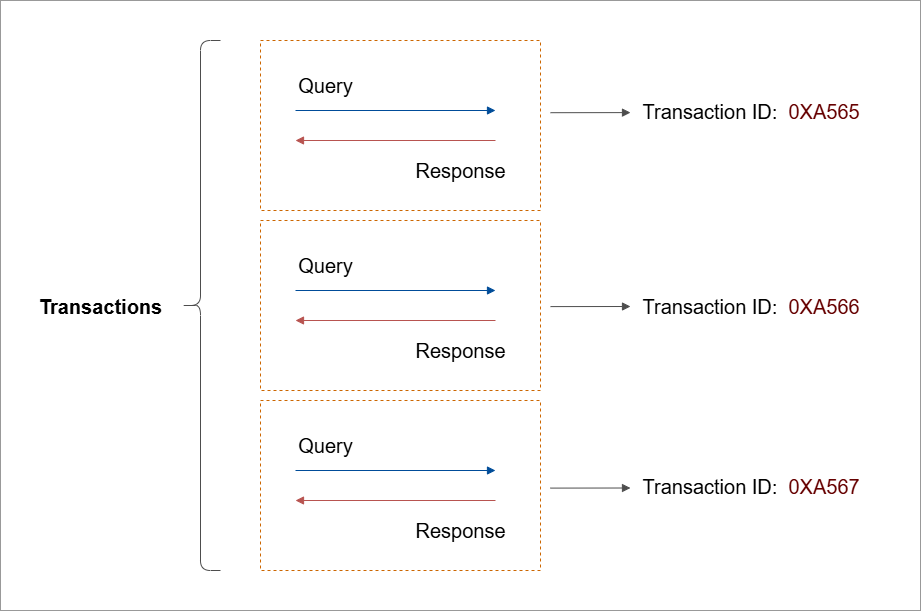

DNS lets clients find servers and exchange information using structured messages. Each exchange between client and server is called a transaction.

• Each DNS request from a client is called a query
• Each reply from a server is called a response
• Every transaction has a unique transaction ID
• Transaction IDs help match responses to the correct queries

This process ensures accurate tracking of requests and is useful for troubleshooting or analyzing network traffic.

Transport Protocols

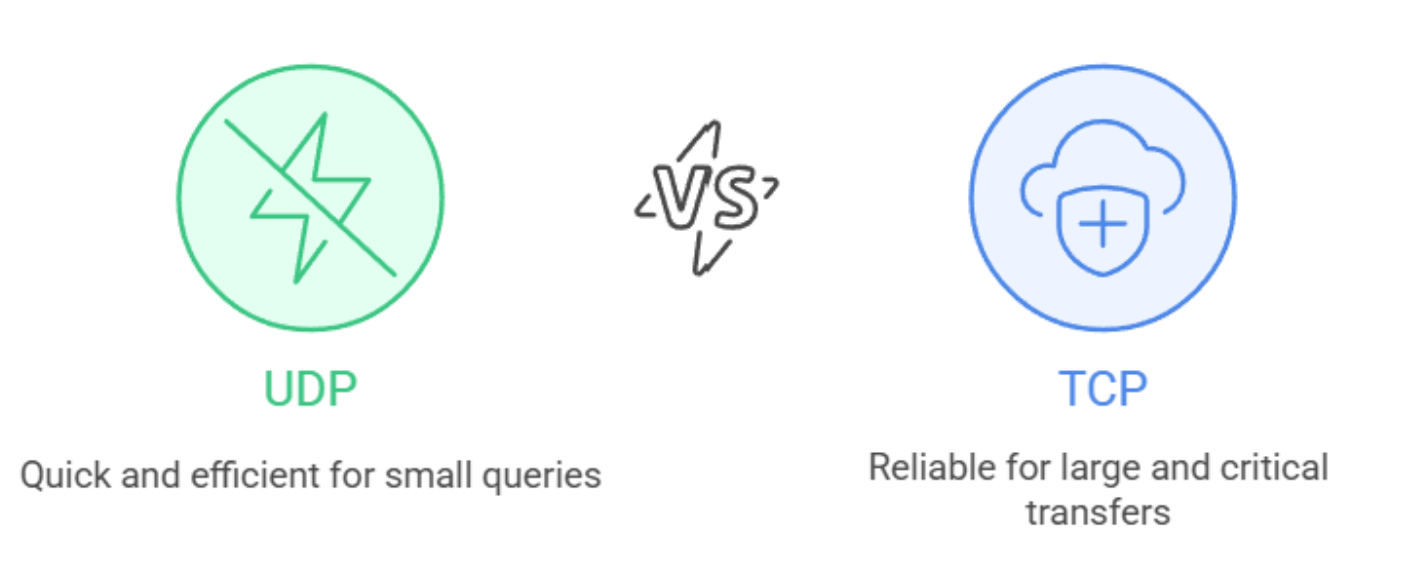

DNS relies on transport protocols to move messages between client and server. It uses both UDP and TCP depending on the situation.

• When it uses UDP:

  • Used for quick name resolution
  • Clients handle retries if responses are delayed
  • Retries are usually every 2 to 5 seconds

• When it uses TCP:

  • Used when reliable delivery is needed
  • When responses exceed 512 bytes
  • For Zone transfers and large queries

By using both, DNS stays fast for everyday lookups while still handling large or critical transfers reliably.

Message Size and Handling

DNS messages have size limits that affect how they are sent and retried.

• UDP messages are limited to 512 bytes
• If a response is larger, the message is truncated
• A special header bit signals truncation
• This prompts the client to retry over TCP

This ensures that large DNS responses are delivered correctly without overwhelming the network.

Ports and Special Messages

DNS uses standard ports and has additional message types for specific operations.

• Servers listen on port 53
• Clients use temporary ephemeral ports for requests
• Notify messages tell slave servers about zone changes
• Update messages add or remove records
• Can use UDP or TCP depending on size

Response Codes

When something fails, DNS uses response codes (RCODES) to explain what happened.

• RCODEs show if a query was successful or failed
• Each RCODE is a number linked to a condition
• A value of zero means no error and success

If the query works, the status shows no error and records are returned. Any other value means there was a problem that needs troubleshooting.

Code	Name	Meaning
0	No error	Query successful, records returned
1	Format error	Server could not understand the query
2	Server failure	Server had a problem processing the query
3	NXDOMAIN	The domain name does not exist
4	Not implemented	Server does not support the requested query type
5	Refused	Server rejected the query for policy reasons

info

Every DNS response includes an RCODE. Success is only shown with zero, while all other codes point to different types of failure.

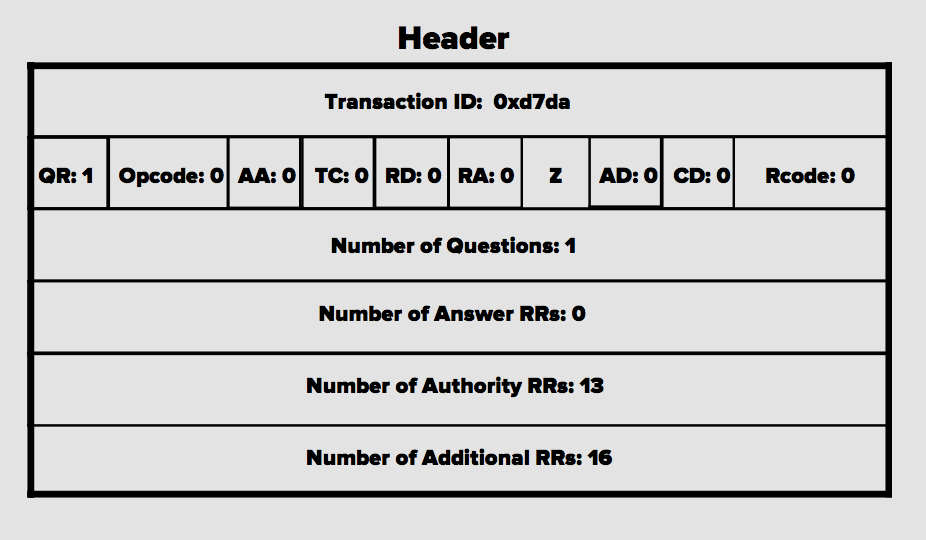

DNS Header

The DNS header contains several fields that control how queries and responses are handled.

• Transaction ID links queries to their responses
• Flags show details about query type and behavior
• Count fields show how many records are included

Each field plays a role in making sure the client and server understand each other during a DNS transaction.

Field	Description
Transaction ID	Unique number to match query with response
QR bit	0 for query, 1 for response
Opcode	Type of DNS query being made
AA (Authoritative)	Indicates the server is authoritative for the domain
TC (Truncated)	Set when the message is too long (over 512 bytes in UDP)
RD (Recursion Desired)	Client requests the server to resolve recursively
RA (Recursion Available)	Server confirms it supports recursion
Z	Reserved for future use, always set to zero
AD (Authentic Data)	Marks data as authentic (DNSSEC related)
CD (Checking Disabled)	Skips DNSSEC validation checks
RCODE	Response code indicating success or type of error
Query Count	Number of questions in the query
Answer Count	Number of answers in the response
NS Count	Number of authority records in the response
Additional Count	Number of additional records in the response

Lab: Capturing Network Traffic

There are two main ways to capture network traffic. Both depend on where and how you want to observe the data.

• Passive capture uses tools like tcpdump directly on the client or server
• Active capture places a proxy or a tap in the path if direct access is not possible

For this example, we'll use the lab environment that was setup for the DNS Lab.

Setting Up Capture Point

Once the method is chosen, the next step is deciding where to capture the traffic.

• The capture point is the exact location where traffic is recorded
• A client interface is a simple place to start for DNS queries

For our example, we'll setup our capture point at the client device which will contact the DNS resolver directly for its recursive queries.

Configuring DNS Resolver

To capture DNS traffic, the client must use a known resolver.

• Edit /etc/resolv.conf to set the DNS resolver
• Example: use 192.168.1.1 as the resolver

sudo vi /etc/resolv.conf
# Add this line at the bottom
nameserver 192.168.1.1

This ensures all DNS lookups go through the resolver we want to monitor.

Installing Tcpdump

Check if tcpdump is installed with

dpkg -s tcpdump

If missing, install it with

sudo apt-get install tcpdump -y

Building a Capture Filter

Filters help capture only useful traffic.

• Capture on specific interface (e.g. enp0s3)
• Specify port 53 for DNS
• Save output to a file for later analysis

In the example below, it captures only DNS packets and stores them in a file for review.

sudo tcpdump -i ens3 port 53 -s0 -w /var/log/dns_traffic.pcap

Generating DNS Traffic

To create DNS packets for capture, simply browse a website.

• Open a browser and visit a domain
• Stop tcpdump with Ctrl+C

The capture file now contains DNS traffic for the visited domain.

Analyzing With Wireshark

Wireshark is used to analyze captured traffic.

• Install Wireshark if needed

  sudo apt install wireshark -y

• Allow non-root users to run it

  sudo usermod -aG wireshark $(whoami)

• Reboot and open Wireshark

  sudo reboot

Captured files can now be inspected in detail with display filters.

Filtering DNS Queries in Wireshark

Filters make it easier to focus on specific DNS lookups.

• To filter by domain:

  dns.qry.name == "example.com"

• To filter by transaction ID:

  dns.id == 0xD1C3

These filters isolate exact queries and responses for review.
