DNS Tree

Updated Jan 19, 2018 ·

Centralized Systems​

A single database for all domain names would create major challenges.

  • Administrative Overhead
  • Poor Scalability
  • Uniqueness Issues

These limitations led DNS to adopt a distributed system, allowing better management and global uniqueness.

Hierarchical​

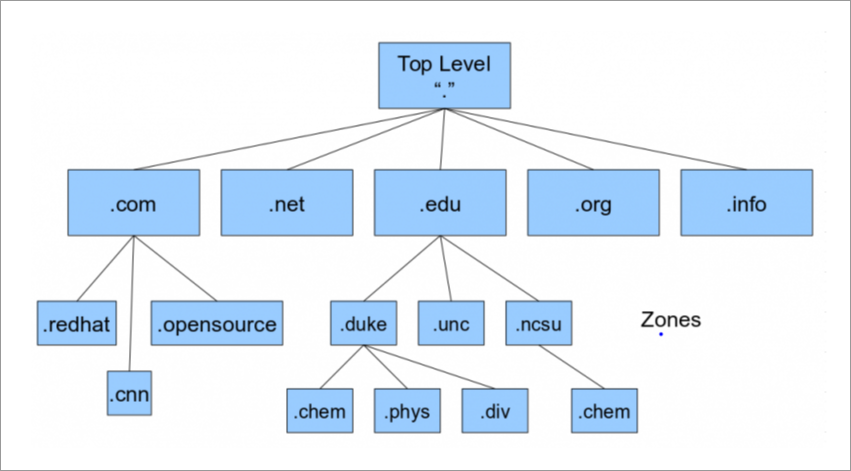

DNS organizes names like a tree, with multiple levels representing different domains and subdomains.

  • Distributed collection of databases forms a tree
  • Each domain name is a path in this tree
  • Organizations manage their own domains
  • Subdomains can be delegated to others

Domains can also can be divided and delegated to improve management.

  • Each domain can be split into subdomains
  • Delegated organizations can modify data freely
  • This allows scalability and easier administration

Delegation makes DNS flexible, scalable, and ensures uniqueness across the global namespace.

DNS Tree Structure​

The DNS system has multiple levels of servers that maintain the hierarchy.

  • Root Name Servers

    • At the top of the tree
    • Direct queries to appropriate top-level domain servers

  • Top-Level Domain Servers

    • Handle domains like .com, .org, .net
    • Forward requests to authoritative servers

  • Authoritative Name Servers

    • Hold the actual data for specific domains

Root Servers​

Root servers is the first point of contact of any DNS reqeust. They handle the initial queries and guide them to the correct top-level domain server.

  • Sit at the top of the DNS hierarchy
  • Receive the first DNS request from a user
  • Refer the query to the correct top-level domain server

When a user looks up a domain name, the root server sends the query to the TLD server based on the domain extension. For example, a query for example.com is directed to a .com TLD server.

info

There are 13 root servers named from A to M, but each has many copies worldwide to handle traffic.

Details about each server are available at root-servers.org

Top-Level Domain Name Servers (TLD)​

TLD name servers get referrals from root servers and help move DNS queries closer to the site’s server.

  • Provide the next level of authority
  • Forward referrals to the authoritative server
  • Only know what is needed to guide the query
  • Keep each query moving toward resolution

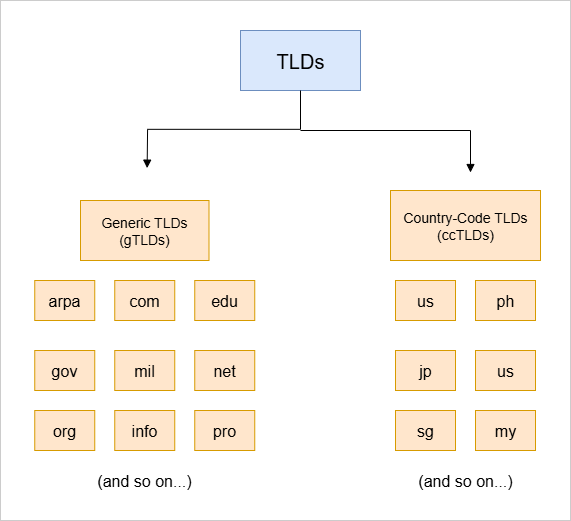

There are several types of top-level domains that indicate the type or location of an organization.

  • Generic TLDs (gTLDs)

    • Show the type of organization or industry
    • Examples: .com, .edu, .gov, .org, .info

  • Country Code TLDs (ccTLDs)

    • Represent specific countries
    • Examples: .gr for Greece, .jp for Japan, .pl for Poland

  • Organizational Subdomains in ccTLDs

    • Countries can create subdomains for companies
    • Examples: co.uk for UK companies, com.au for Australian companies

Authoritative Name Servers​

Authoritative name servers provide the final answer in the DNS process. They hold the IP addresses for specific domains and complete the query.

  • Hold the DNS records for a domain
  • Provide the IP address for requested sites
  • Complete the resolution without further referrals

After referrals from root and TLD servers, the authoritative server gives the final response, allowing users to reach the website.

info

Authority in DNS means control over a domain and responsibility to answer queries about it.
