Jenkins Plugins

Updated May 13, 2020 ·

Overview

From the official Jenkins documentation

Plugins are the primary means of enhancing the functionality of a Jenkins environment to suit organization- or user-specific needs.

Plugins can be automatically downloaded, with their dependencies, from the Update Center. The Update Center is a service operated by the Jenkins project which provides an inventory of open source plugins which have been developed and maintained by various members of the Jenkins community.

Install through the Plugin Manager

You can simply install the plugins through the Jenkins console. Just click the following tabs:

Manage Jenkins --> Manage Plugins ---> Available

As an example, let's install the Ansible plugin. Just search for "Ansible" and then check the box for that plugin. At the bottom, you'll see two options:

• Install without restart
• Download now and install without restart

So what's the difference between this two?

The main difference between 'with restart' and 'without restart' plugin installation is that you cannot upgrade or uninstall plugins without restart (because of the architectural choice made in Jenkins).

So, new plugin can be installed without restart (and when other builds are running as well).

Reference: Stackoverflow link

You could also read more about it through these links:

• It isn't clear if you should restart Jenkins after installing a plugin

• Install Jenkin's Plugin without Restart

Going back to our example, we'll just choose Install without restart for now. Once the install is done, go back to the plugins page. You should now see the Ansible plugin under the Installed tab.

Manage Jenkins --> Manage Plugins ---> Installed

Install by uploading the hpi file

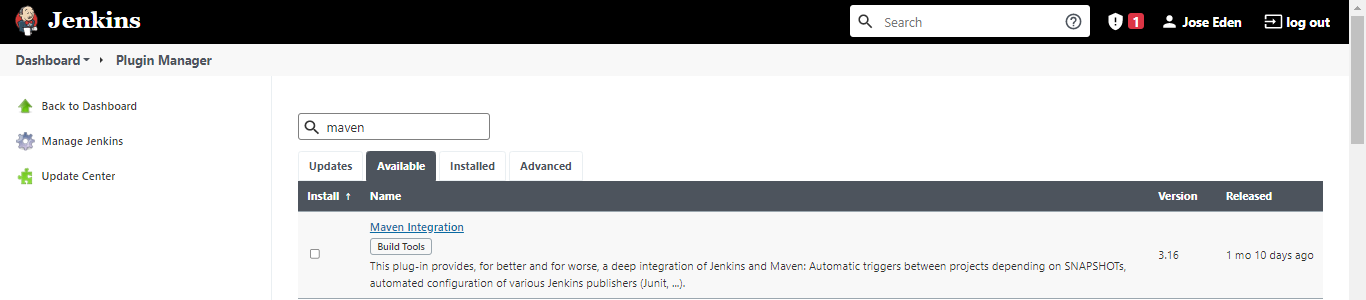

Let's say we want to install the Maven integration plugin. When we search for it, we see that the available version is the latest one which is 3.16. Notice that there is no option to select older releases here.

To select older releases of this plugin, click the plugin name. It should open a new window for the plugin documentation site. Here, click the Releases tab. This will show all the previous versions of the plugin.

To install the version 3.15.1 since its a stable version, just click the version number and it will download an hpi file to your machine. Going back to the main dashboard, click the following:

Manage Jenkins --> Manage Plugins ---> Advanced

Scroll down to the Upload Plugin section. Click Choose File* and select the hpi file you just downloaded. Click Upload

Going back to the Plugin Manager, you should now see the plugin under the Installed tab.

Install from the CLI

You can also install the plugin from the commandline. As an example, you can install the Docker plugin by running:

java -jar jenkins-cli.jar \
  -s http://localhost:8085 \
  -auth 'admin:Adm!n321' \
  install-plugin docker-plugin

Update the plugin

To update the plugin, simply go to the Plugin Manager. in the Updates tab, you should see all the plugins that has a new release

Manage Jenkins --> Manage Plugins ---> Updates

In our example, let's say that the Maven integration 3.16 were confirmed to be a stable version and we want to update it to the most recent one. Mark the box for the plugin and hit Download now and install after restart.

Uninstall the plugin

To uninstall a plugin, go back to the Plugin Manager then on the Installed tab, mark the box for the plugin and hit Uninstall

Manage Jenkins --> Manage Plugins ---> Installed
