Normal Forms

Updated Oct 15, 2019 ·

Overview

Normal forms are used in normalizing a database, which involves organizing the data to reduce redundancy and improve integrity. Each normal form builds on the previous one, introducing stricter rules for how data should be structured. By following these rules, databases become easier to maintain and less prone to errors, such as update anomalies or data inconsistencies.

To learn more about normalization, please see Schemas and Normalization.

Types of Normal Forms

First Normal Form (1NF)

First Normal Form ensures that each column contains atomic values and that there are no repeating groups of data. This means every entry in a column is indivisible, and each record must be unique.

Consider a table of students and their courses before 1NF:

Student_id	Name	Courses
101	Alice	Math, English
102	Bob	Science
103	Carol	Math, History

To convert this to 1NF, ensure that each course is in a separate row, splitting it into two tables:

Student Table

Student_id	Name
101	Alice
102	Bob
103	Carol

Student-Course Table

Student_id	Course
101	Math
101	English
102	Science
103	Math
103	History

Second Normal Form (2NF)

Second Normal Form builds on 1NF by removing partial dependencies, meaning all non-key attributes must be fully dependent on the primary key. In a table with a composite primary key, every non-key attribute should depend on the whole key, not just part of it.

• Must satisfy 1NF First
• If primary key is one column, then automatically satisfies 2NF
• If there is a composite primary key, then each non-key column must be dependent on all the keys

Consider a table that tracks student progress in various courses:

Student_id	Course_id	Instructor_id	Instructor	Progress
101	2021	301	Dr. Smith	85%
101	2042	302	Dr. Jones	90%
102	2021	301	Dr. Smith	75%
103	2053	303	Dr. Brown	88%

The primary keys are:

• Student_id
• Course_id

The non-key columns:

• Instructor

  • Dependent only on Course_id
  • Instructors depends on the courses, not the students taking the course.

• Instructor_id

  • Similar with Instructor in terms of dependency.
  • Dependent only on Course_id
  • Instructors depends on the courses, not the students taking the course.

• Progress

  • Dependent on both Student_id and Course_id

To achieve 2NF, separate the data into two tables:

Student-Course Table

Student_id	Course_id	Progress
101	2021	85%
101	2042	90%
102	2021	75%
103	2053	88%

Instructor-Course Table

Course_id	Instructor_id	Instructor
2021	301	Dr. Smith
2042	302	Dr. Jones
2053	303	Dr. Brown

In these tables:

• Student-Course Table:

  • The Progress is fully dependent on the composite key (Student_id, Course_id).

• Instructor-Course Table:

  • Course_id is the primary key here.
  • Instructor and Instructor_id is fully dependent on the Course_id.
  • This ensures there are no partial dependencies.

This separation resolves partial dependencies, ensuring that each non-key attribute is related to the entire primary key in its respective table, thus achieving 2NF.

Third Normal Form (3NF)

Third Normal Form eliminates transitive dependencies, ensuring non-key attributes are not dependent on other non-key attributes.

• Must satisfy 2NF first
• Non-key columns should not depend on other non-key columns.

In the sample table below, the primary key is the Course ID.

• Instructor is dependent on Instructor ID
• This creates a transitive dependency since Instructor can be derived from Instructor ID instead of directly from Course ID.

Course ID	Instructor ID	Instructor	Technology
2021	301	Dr. Smith	Python
2042	302	Dr. Jones	Java
2053	303	Dr. Brown	JavaScript
2064	304	Dr. White	C++
2075	305	Dr. Green	Ruby

To achieve 3NF, we separate the table into two tables to eliminate transitive dependencies:

Courses Table

Course ID	Instructor	Technology
2021	Dr. Smith	Python
2042	Dr. Jones	Java
2053	Dr. Brown	JavaScript
2064	Dr. White	C++
2075	Dr. Green	Ruby

Instructors Table

Instructor ID	Instructor
301	Dr. Smith
302	Dr. Jones
303	Dr. Brown
304	Dr. White
305	Dr. Green

In these tables:

• Courses Table:

  • Attributes Instructor and Technology are now directly related to Course ID without depending on any other non-key attribute.

• Instructors Table:

  • The instructor information is separated into its own table.
  • This removes the transitive dependency on Instructor ID.

This structure ensures that all non-key attributes in the Courses table are directly dependent on the primary key, Course ID, and eliminates transitive dependencies.

Other Normal Forms

The first three normal forms are commonly used in normalization, but there are other normal forms as well.

Boyce-Codd Normal Form (BCNF)

BCNF is a stricter version of 3NF, ensuring every determinant is a candidate key.

Consider a table where a professor can only teach one subject in a particular room, but a room can host different professors at different times:

Professor	Subject	Room
Dr. Smith	Math	101
Dr. Jones	English	102
Dr. Smith	Science	101

This table violates BCNF because Room determines the Subject. To achieve BCNF:

Room-Subject Table

Room	Subject
101	Math
102	English

Professor-Assignment Table

Professor	Room
Dr. Smith	101
Dr. Jones	102

Fourth Normal Form (4NF)

Fourth Normal Form eliminates multi-valued dependencies, ensuring that there are no non-trivial multi-valued dependencies other than a candidate key.

Suppose a student can have multiple hobbies and skills independently:

Student_id	Hobby	Skill
101	Cycling	Python
101	Painting	SQL
102	Cycling	Java
102	Drawing	Python

This table has a multi-valued dependency because hobbies and skills are independent attributes. To achieve 4NF, separate these into two tables:

Hobby Table

Student_id	Hobby
101	Cycling
101	Painting
102	Cycling
102	Drawing

Skill Table

Student_id	Skill
101	Python
101	SQL
102	Java
102	Python

Fifth Normal Form (5NF)

Fifth Normal Form focuses on eliminating join dependencies, ensuring that all join dependencies are implied by candidate keys.

Suppose a project requires multiple employees with different skills, and each skill needs specific tools:

Project	Employee	Skill	Tool
A	Alice	Coding	Laptop
A	Bob	Testing	Toolkit
B	Alice	Testing	Toolkit
B	Carol	Design	Sketchpad

To achieve 5NF, decompose this table:

Project-Employee Table

Project	Employee
A	Alice
A	Bob
B	Alice
B	Carol

Employee-Skill Table

Employee	Skill
Alice	Coding
Bob	Testing
Carol	Design

Skill-Tool Table

Skill	Tool
Coding	Laptop
Testing	Toolkit
Design	Sketchpad

More examples

1NF

Below is a denormalized table called customers containing car rental records:

customer_id	customer_name	cars_rented	invoice_id	premium_member	salutation
2871	Alex Johnson	7XY123	5498	false	Dr
3924	Mia Chen	3TH678	7623	false	Mr
4785	Noah Wilson	9JK234, 8LM567, 1BC890	1839, 9462, 2750	true	Ms
5648	Emma Garcia	2DE345, 6GH789	3847, 5129	true	Mrs

To-dos:

1. cars_rented holds one or more car_ids and invoice_id holds multiple values.
2. Create a new table to hold individual car_ids and invoice_ids of the customer_ids who've rented those cars.
3. Drop two columns from customers table to satisfy 1NF

Solution

Run the SQL commands below:

-- Create a new table to hold the cars rented by customers
-- Creating a Customer table schema
CREATE TABLE Customer (
    CustomerID INT PRIMARY KEY,
    FirstName VARCHAR(50) NOT NULL,
    LastName VARCHAR(50),
    Email VARCHAR(100) UNIQUE,
    Phone VARCHAR(15)
);

-- Drop two columns from customers table to satisfy 1NF
ALTER TABLE customers
DROP COLUMN cars_rented,
DROP COLUMN invoice_id;

SELECT * FROM customer_rentals;

We now have two tables:

• customers which holds customer information
• customer_rentals which holds the car_ids rented by different customer_ids.

This satisfies 1NF. In a real situation, we would need to fill the new table before dropping any columns.

2NF

Below is an expanded version of the customer_rentals table:

customer_id	car_id	start_date	end_date	model	manufacturer	type_car	condition	color
3210	7XM245	2020-05-10	2020-05-15	Focus 2020	Ford	sedan	good	white
4521	8QN365	2021-06-12	2021-06-18	Mustang 2021	Ford	convertible	excellent	black
3827	6LB457	2021-07-19	2021-07-21	RAV4 2021	Toyota	SUV	excellent	silver
3827	6LB457	2021-08-01	2021-08-12	RAV4 2021	Toyota	SUV	excellent	silver
3827	5ZX673	2020-09-05	2020-09-10	RAV4 2021	Toyota	SUV	good	black
4938	7XM245	2020-11-11	2020-11-15	Focus 2020	Ford	sedan	good	white
4938	7XM245	2021-01-04	2021-01-10	Focus 2020	Ford	sedan	fair	white

To-dos:

1. Create a new table for the non-key columns that were conflicting with 2NF criteria.
2. Drop those non-key columns from customer_rentals.

Solution

We can use the query below to check the primary keys in the given customer_rentals table:

SELECT
    kcu.column_name,
    tc.constraint_type
FROM
    information_schema.table_constraints AS tc
JOIN
    information_schema.key_column_usage AS kcu
ON
    tc.constraint_name = kcu.constraint_name
WHERE
    tc.table_name = 'customer_rentals'
    AND tc.constraint_type = 'PRIMARY KEY';

Based on the output above, the following columns are the primary keys:

• customer_id
• start_date
• car_id

The following non-key columns depend on car_id, but are independent of the other two primary keys:

• model
• manufacturer
• type_car
• conditions
• colors

The customer or start date cannot change these attributes. We can put these columns in a new table and dropped them from customer_rentals table.

Create the table to store details about each car:

CREATE TABLE cars (
  car_id VARCHAR(256) NULL,
  model VARCHAR(128),
  manufacturer VARCHAR(128),
  type_car VARCHAR(128),
  condition VARCHAR(128),
  color VARCHAR(128)
);

Modify the customer_rentals table by dropping the columns that were moved to the cars table. This will ensure the table satisfies 2NF by eliminating partial dependencies.

ALTER TABLE customer_rentals
  DROP COLUMN model,
  DROP COLUMN manufacturer,
  DROP COLUMN type_car,
  DROP COLUMN condition,
  DROP COLUMN color;

3NF

We have expanded the cars table from above and created the rental_cars table below which uses the car_id attributes as the primary key.

car_id	model	manufacturer	type_car	condition	color
6XZ123	Focus 2020	Ford	sedan	excellent	white
7PQ789	Accord 2019	Honda	sedan	good	silver
8LM456	Model S 2021	Tesla	electric	new	black
9AB654	Mustang 2020	Ford	convertible	fair	red

To-dos:

1. Create a new table for the non-key columns that were conflicting with 3NF criteria.
2. Drop those non-key columns from rental_cars.

Solution

Confirm the primary keys first:

SELECT
    kcu.column_name,
    tc.constraint_type
FROM
    information_schema.table_constraints AS tc
JOIN
    information_schema.key_column_usage AS kcu
ON
    tc.constraint_name = kcu.constraint_name
WHERE
    tc.table_name = 'rental_cars'
    AND tc.constraint_type = 'PRIMARY KEY';

Create a new table to satisfy 3NF:

CREATE TABLE car_model(
  model VARCHAR(128),
  manufacturer VARCHAR(128),
  type_car VARCHAR(128)
);

Drop columns in rental_cars to satisfy 3NF:

ALTER TABLE rental_cars
DROP COLUMN condition,
DROP COLUMN color;

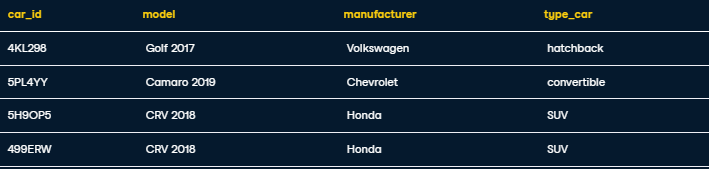

SELECT * FROM rental_cars;

From here we can see that creating 3NF tables help reduce data redundancy and potential data anomalies.
