Integration Patterns

Updated Sep 21, 2020 ·

Overview

Most real cloud systems do not operate alone.

They communicate with external APIs, internal services, partner platforms, identity providers, message buses, data stores, and legacy systems.

The integration pattern determines how these systems communicate and how failures affect the rest of the architecture.

Common approaches include:

• Synchronous request and response
• Asynchronous messaging
• Event-driven integration
• File or batch transfer
• Middleware or adapter layers

The right choice depends on whether an immediate response is required, how tightly the systems should be coupled, who produces the event, and whether legacy protocols need to be supported.

Integration Goals

Good integration design should keep systems secure, reliable, and maintainable.

The main goals are:

• Exchange data safely
• Keep failures isolated
• Avoid unnecessary coupling
• Handle different processing speeds
• Make retries and timeouts predictable
• Prevent duplicate processing where required
• Support authentication and authorization
• Provide logging, metrics, tracing, and alerting
• Leave an audit trail
• Allow individual services to evolve independently

Common Integration Patterns

Different integration requirements call for different patterns.

Pattern	Best Fit	Why It Helps	Main Trade-off
Synchronous API Call	Caller needs an immediate result	Simple and direct request and response	Caller depends on downstream availability and latency
Asynchronous Messaging	Systems operate at different speeds or multiple consumers need the same message	Decouples producers and consumers and isolates failures	Ordering, retries, deduplication, and debugging become more complex
Event-Driven Integration	Applications need to react automatically to state changes	Removes polling and provides managed event routing	Requires careful event and handler design
File or Batch Transfer	Scheduled exchange or legacy integration	Works when immediate processing is not required	Higher latency and additional file processing logic
Middleware or Adapter Layer	Legacy or heterogeneous systems	Isolates protocol and format differences	Adds another component that must be operated and maintained

The best pattern depends on latency, reliability, data volume, failure behavior, and the level of control you have over the other system.

Synchronous Integration

Synchronous communication follows a simple model:

Call ➜ Wait ➜ Receive Response

A common flow in GCP is:

1. The caller sends a request and remains waiting while the downstream service processes it.
2. The result then travels back through the same request path.

API Gateway with Apigee

Apigee can sit between the caller and the external or internal service and provide centralized API management.

It can handle:

• Authentication
• Rate limiting
• API versioning
• Observability
• Policy enforcement

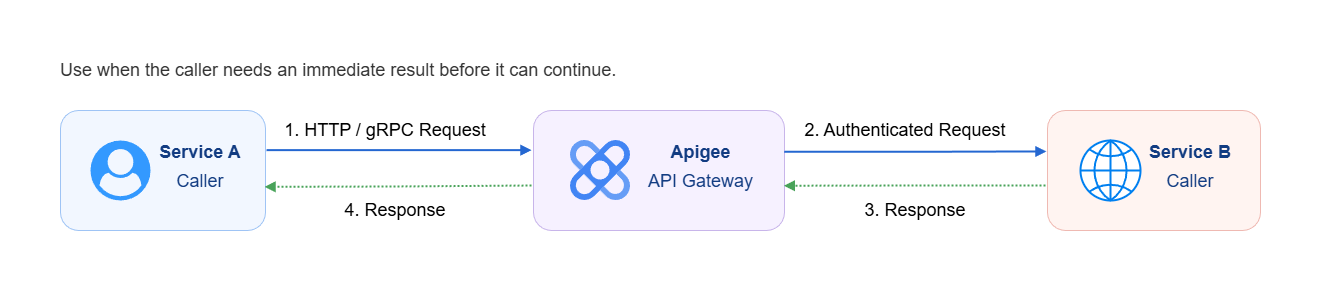

For example, Service A can call Apigee using HTTP or gRPC. Apigee authenticates and applies policies before forwarding the request to Service B.

When to Use Synchronous Communication

Use synchronous communication when:

• The caller needs the result immediately
• The next operation depends on the response
• The interaction is naturally request and response
• The downstream service normally responds quickly

A typical example is a checkout process:

Checkout ➜ Payment ➜ Order Confirmation

The payment must succeed or fail before the order can be confirmed.

Synchronous Trade-offs

The main disadvantage is that the caller is directly affected by the downstream system.

• If the downstream service becomes slow, the caller waits longer.
• If the downstream service becomes unavailable, the request can fail.

This makes timeout handling particularly important for synchronous integrations.

Asynchronous Messaging

Asynchronous communication follows a different model:

Publish ➜ Do Not Wait ➜ Continue

Use asynchronous messaging when systems operate at different speeds or when the same message needs to be processed by multiple consumers.

A typical Pub/Sub flow is:

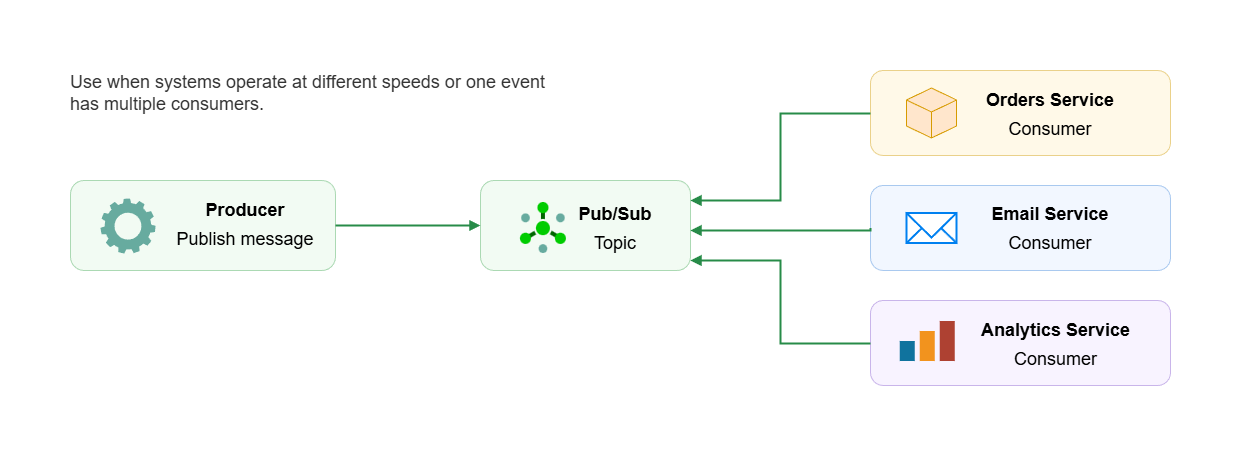

Producer ➜ Pub/Sub Topic ➜ Consumers

The producer publishes the message without directly calling each consumer.

This provides decoupling because the producer does not need to know how many consumers exist or how quickly they process the message.

Benefits of Asynchronous Messaging

Asynchronous messaging provides several advantages:

• Producer and consumer availability are decoupled
• Consumers can process messages independently
• Different consumers can operate at different speeds
• One event can fan out to multiple consumers
• Temporary downstream failures do not immediately fail the producer
• Consumers can scale independently
• Failures are better isolated

A key benefit is that a downstream failure does not necessarily cascade upstream.

Asynchronous Trade-offs

Asynchronous systems introduce additional concerns:

• Message ordering
• Duplicate delivery
• Idempotency
• Retry behavior
• Consumer failures
• Dead-letter handling
• Eventual consistency
• More difficult end-to-end debugging

The architecture should define what happens when processing succeeds, fails, times out, or receives the same message more than once.

Fan-Out Pattern

A common asynchronous architecture is the fan-out pattern.

A producer publishes one message to a Pub/Sub topic. Multiple independent subscribers can then consume that event.

Component	Responsibility
Producer	Creates and publishes the message
Pub/Sub Topic	Receives and distributes the message
Orders Service	Processes order-related work
Email Service	Sends notifications
Analytics Service	Processes analytics data

This allows new consumers to be added without requiring the producer to directly integrate with each one.

The producer should generally not need to know or care how many consumers exist.

Event-Driven Integration

Event-driven integration is useful when processing should happen automatically because something changed.

Instead of one service explicitly calling another service, an event represents something that has already happened.

Example events include:

• A file was uploaded
• A build completed
• An audit log entry was written
• A resource changed state
• A new user was created
• A new order was placed

The basic model is:

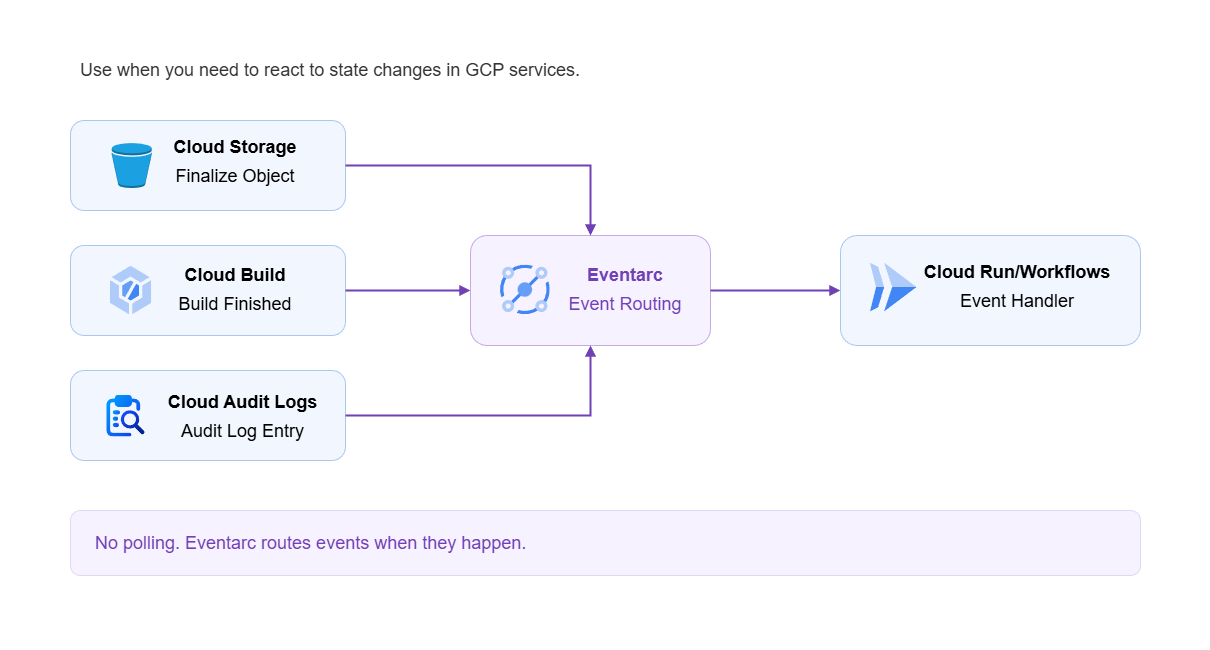

State Change ➜ Eventarc ➜ Handler

There is no need for the application to continuously poll the source to detect the change.

Eventarc

In GCP, Eventarc can listen for supported events and route them to an appropriate handler.

Event Source	Event	Destination	Action
Cloud Storage	Object finalized	Cloud Run	Process the uploaded file
Cloud Build	Build finished	Workflows	Trigger validation
Cloud Audit Logs	Audit log entry written	Cloud Run	Run a compliance handler

The important distinction is that Eventarc reacts to events that already occurred in another system.

Pub/Sub vs. Eventarc

Pub/Sub and Eventarc both support asynchronous architectures, but they solve different integration problems.

	Pub/Sub	Eventarc
Typical Source	Your application	GCP service or supported event source
Model	Application publishes a message	Service emits an event
Purpose	Custom messaging and event distribution	Managed event routing
Producer Control	Application controls message publishing	Event originates from the source service
Routing	Topics and subscriptions	Eventarc triggers
Useful When	You need a message bus and control over messaging behavior	You want to react to GCP state changes
Example	Order service publishes an order event	Cloud Storage upload triggers Cloud Run

A simple way to distinguish them is:

• Pub/Sub: Your application publishes something.

• Eventarc: Something happens in a service and your application reacts to it.

Legacy Integration and Adapter Pattern

Legacy systems often use protocols and formats that modern applications do not want to expose throughout the architecture.

Examples include:

• SFTP
• XML
• File-based exchange
• Proprietary protocols
• Systems without REST APIs
• Systems without Pub/Sub support

Instead of making every modern service understand the legacy system, introduce an adapter layer at the boundary.

For example:

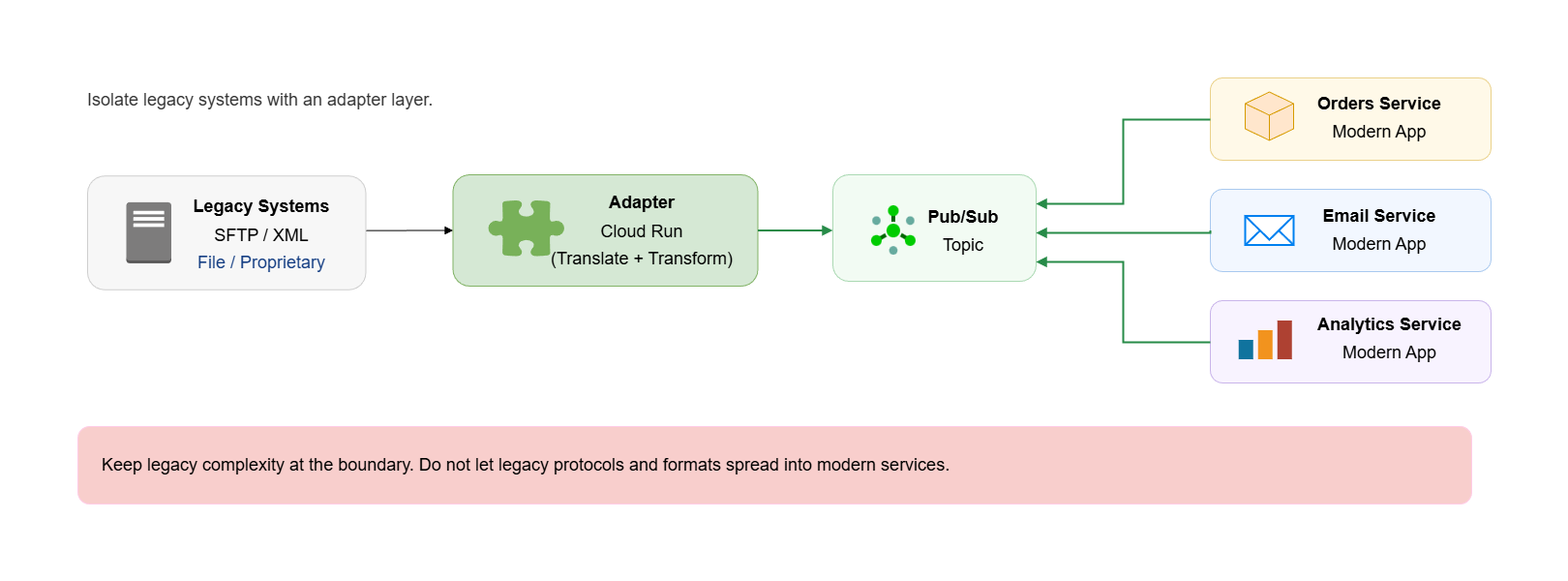

Legacy SFTP/XML ➜ Adapter on Cloud Run ➜ Pub/Sub ➜ Modern Services

The adapter reads or polls the legacy system, translates its data into a modern format, and publishes it to Pub/Sub.

Modern applications can then consume clean messages without knowing how the legacy system works.

Why Use an Adapter

The adapter isolates legacy complexity.

This provides several benefits:

• Legacy protocols stay at the system boundary
• Modern services remain simpler
• Format conversion happens in one place
• Legacy changes have less impact on downstream services
• Modern consumers can use scalable cloud-native interfaces

The principle is simple:

Do not allow legacy integration requirements to spread throughout the rest of the architecture.

Choosing an Integration Pattern

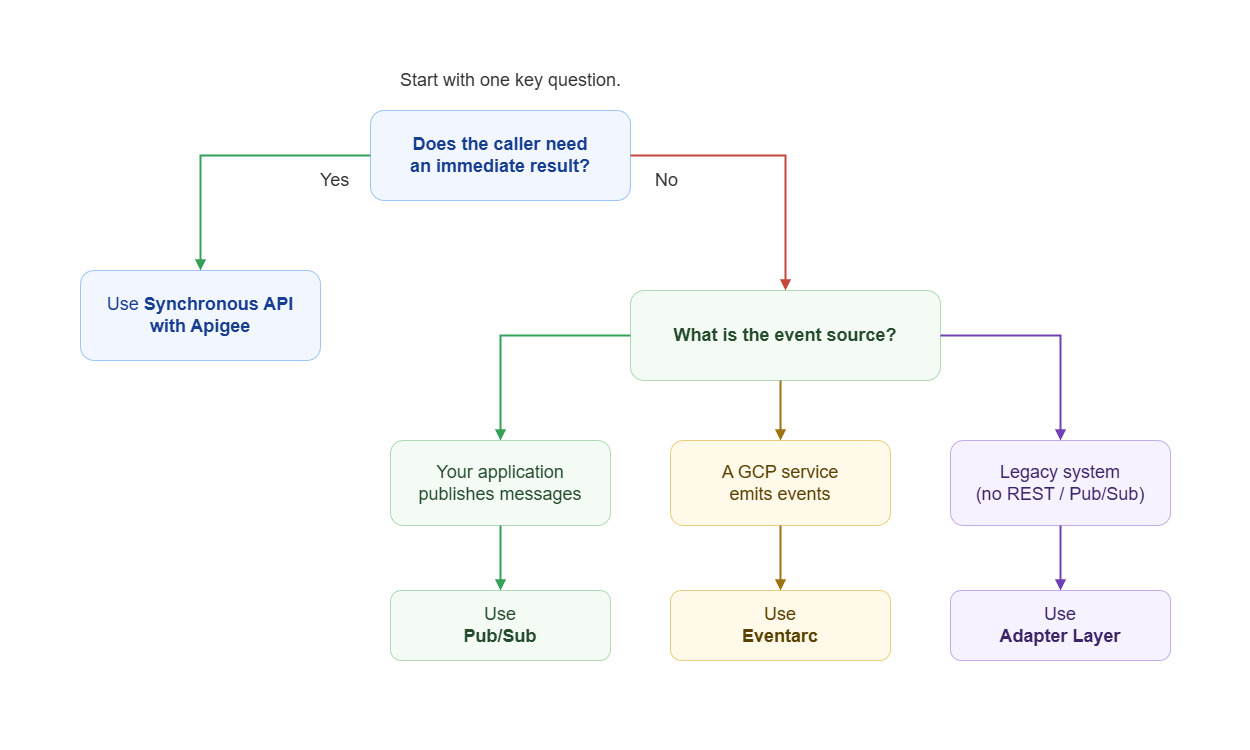

One of the most important questions is:

Does the caller need an immediate response?

Requirement	Recommended Pattern
Caller needs an immediate result	Synchronous API with Apigee
No immediate result is required and a custom message bus is needed	Asynchronous Pub/Sub
No immediate result is required and the event originates from a GCP service	Eventarc
External system is legacy and does not support REST or Pub/Sub	Adapter layer first
Data is exchanged periodically and immediate processing is unnecessary	File or batch transfer

External System Concerns

When you integrate with an external system, you inherit some of its behavior and limitations.

Concern	Potential Problem	Design Consideration
Availability	External service becomes unavailable	Retries, fallback behavior, asynchronous processing
Latency	Slow downstream responses affect callers	Timeouts, asynchronous processing, caching
Authentication	Credentials or tokens expire	Credential rotation and renewal
Rate Limits	Requests are throttled	Backoff, queues, rate limiting
Data Formats	API or schema changes	Validation, versioning, adapters
Retries	Same operation executes multiple times	Idempotency and deduplication
Partial Failure	Some operations succeed while others fail	Recovery logic and clear failure states
Observability	Failure occurs across several services	Centralized logs, metrics, traces, and correlation IDs

The important design decision is not simply how two systems connect.

It is also what happens when one of those systems becomes slow, unavailable, or behaves differently than expected.
