Resource Hierarchy

Updated Sep 21, 2020 ·

Overview

Google Cloud uses a resource hierarchy to organize cloud environments.

Think of it like a company structure.

A company has departments, departments have teams, and teams work on products. Google Cloud uses a similar structure for cloud resources.

At a high level, the hierarchy is:

1. Organization
2. Folders
3. Projects
4. Resources

This structure affects permissions, billing, ownership, and governance.

Hierarchy Levels

Each level has a different job.

Level	Purpose	Example
Organization	Represents the company or domain	example.com
Folder	Groups projects by department or environment	Engineering, Finance, or Production
Project	Contains actual cloud resources	web-app-prod or data-analytics-dev
Resource	The service object created inside a project	VM instance, storage bucket, or BigQuery set

Notes:

• The organization is the root container.
• Folders are optional, but they become important when many teams, applications, or environments exist.
• Projects are the main workspace for building.
• Every service resource belongs to a project.

Organization

The organization node represents the company behind the Google Cloud account.

It is linked to a Google Workspace or Cloud Identity account, and it acts as the top-level parent for folders and projects.

Use the organization level for broad controls that should apply across the business.

Examples:

• Grant billing visibility to finance teams.
• Apply security guardrails across all projects.
• Define high-level ownership and administration boundaries.
• Prevent unmanaged personal projects from becoming the center of production systems.

Note: A personal Gmail account can use Google Cloud, but it does not provide a Google Cloud organization by itself.

Folders

Folders group projects inside an organization.

They can represent business units, teams, environments, regions, or compliance boundaries.

Common folder patterns include:

• Engineering
• Finance
• Production
• Development
• EU-Data
• Shared-Services

Folders can also contain other folders.

For example:

Organization
  Engineering
    Web-Team
      Production
      Development

This structure makes access control and governance easier to manage at scale.

Projects

A project is the fundamental container for Google Cloud resources.

This is where most day-to-day cloud work happens.

A project controls:

• Which APIs are enabled.
• Which billing account is attached.
• Which IAM permissions apply.
• Which resources are created.
• Which logs, quotas, and labels apply.

Use projects to separate workloads, teams, environments, and billing concerns.

Example project names:

• corporate-website-prod
• corporate-website-dev
• data-platform-test
• shared-network-prod

Project Identifiers

Google Cloud projects have several identifiers.

Identifier	Purpose	Can Change
Project name	Human-friendly display name	Yes
Project ID	Globally unique project identifier	No
Project number	Google-generated numeric identifier	No

The project name is like a nickname.

The project ID is the permanent identifier used by commands, APIs, service accounts, logs, and resource names.

Choose the project ID carefully before creating the project.

Policy Inheritance

Policy inheritance means that policies applied to a parent are inherited by children.

For example:

• A role granted at the organization level can apply across all folders and projects.
• A role granted at a folder level can apply to projects inside that folder.
• A policy set at a parent level can affect resources below that parent.

This makes the hierarchy a security and governance tool, not only an organization tool.

tip

Apply broad, safe permissions high in the hierarchy, and apply powerful or specific permissions closer to the workload that needs them.

Example Hierarchy

A company could structure folders and projects like this:

Organization: example.com
  Engineering
    web-app-prod
    web-app-dev
  Finance
    finance-reporting-prod
  EU-Data
    customer-analytics-prod

Possible access patterns:

Target	Role or Policy	Effect
Organization	Billing Viewer role	Finance can view billing across all projects.
Engineering folder	Developer role	Engineers can manage engineering projects only.
EU-Data folder	Regional guardrail	EU data projects follow stricter controls.

This keeps broad governance centralized while still allowing teams to manage their own work.

Creating a Project

In the Google Cloud console, the current project appears near the top of the page. This tells you which project is currently selected.

All resources you view, create, or change in the console are scoped to the selected project unless the service uses a broader scope.

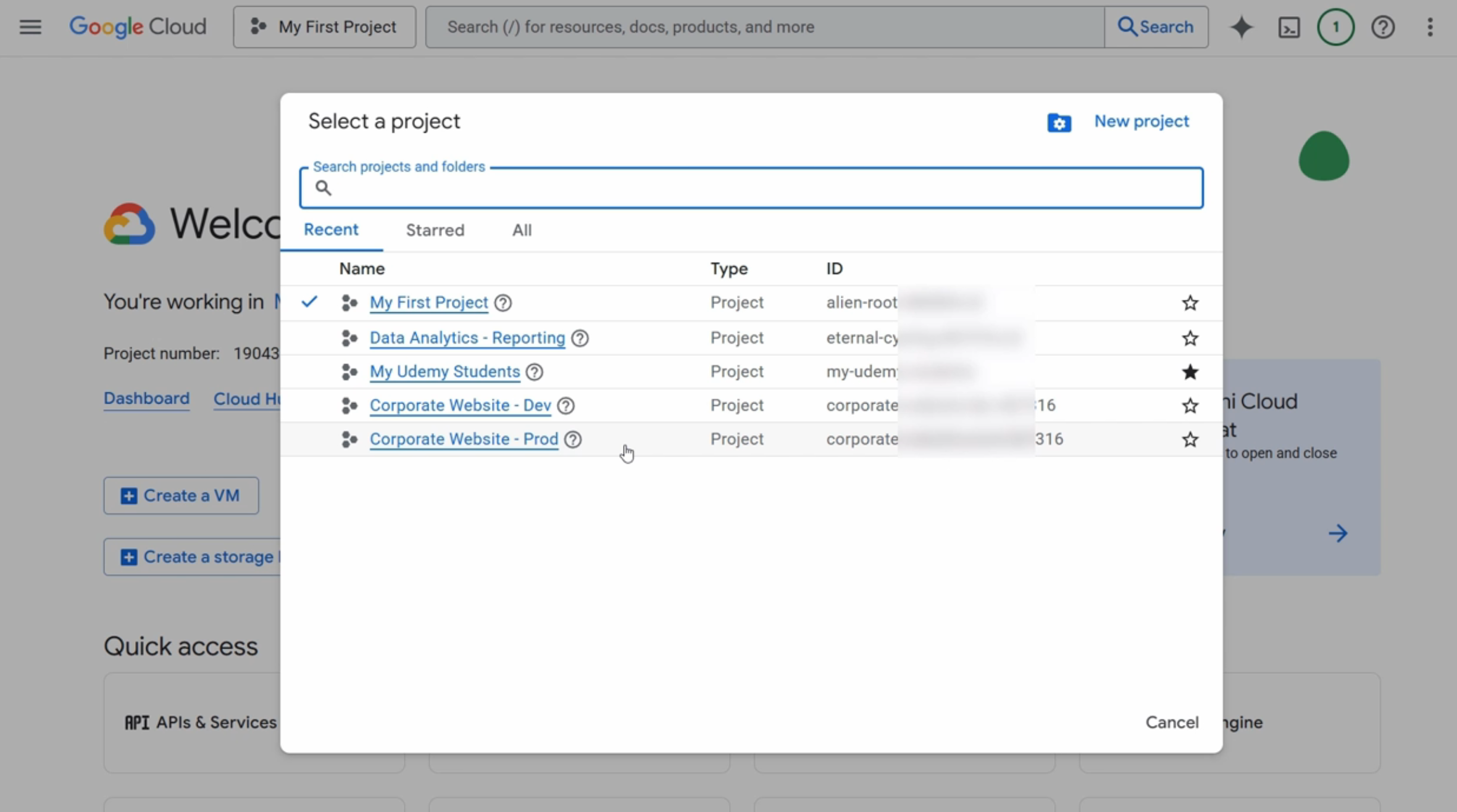

1. Open the project picker.

   Click the current project name near the top of the console.

   This opens the project picker, where you can see recent projects, search for projects, or create a new project.



2. Select New Project.

   This opens the project creation screen.

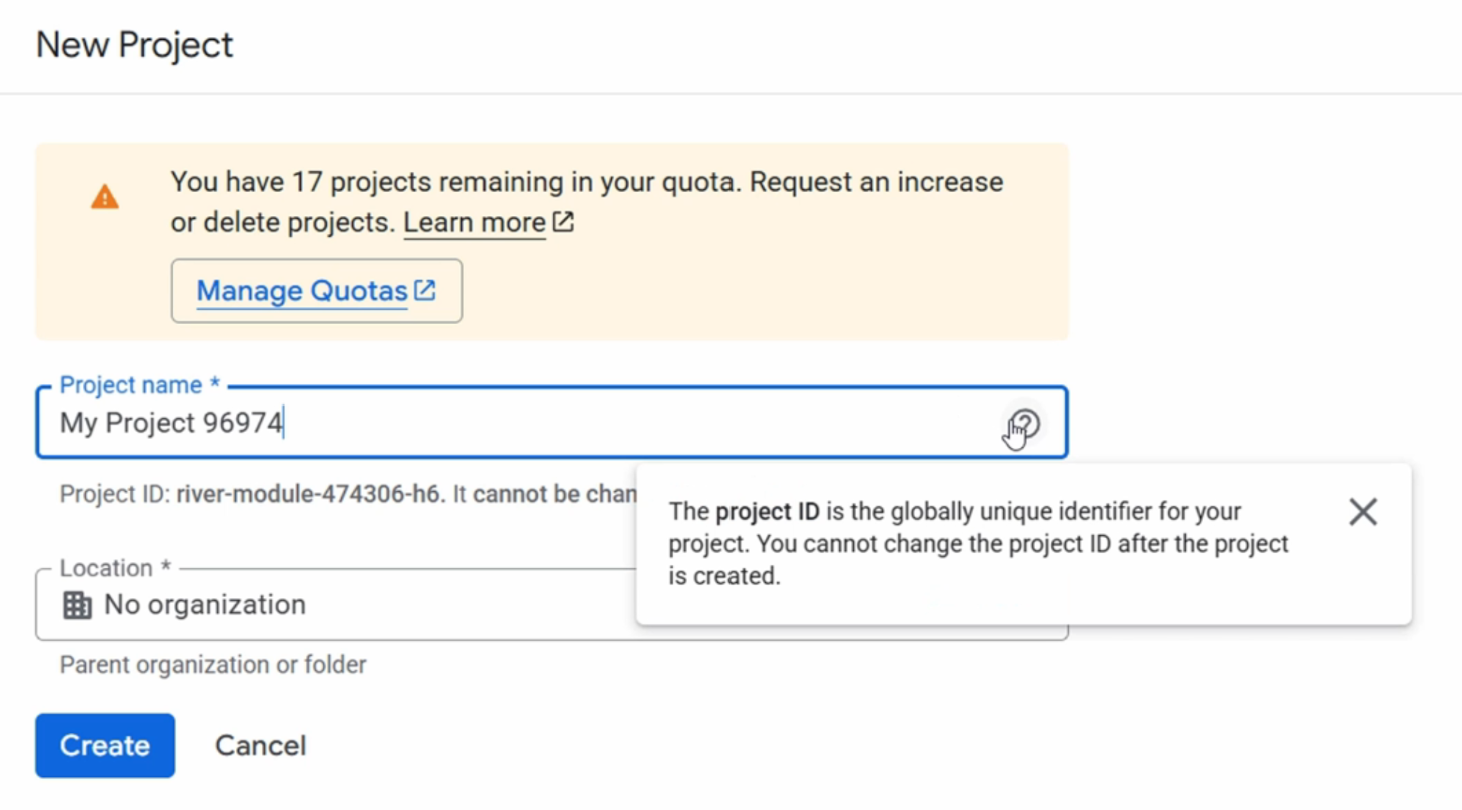

3. Review the project fields.

   Each field affects how the project is identified, organized, or billed.

   Field	Purpose	Notes
   Project name	Human-friendly display name	Can be changed later, so use a clear name for people.
   Project ID	Globally unique project identifier	Cannot be changed after creation.
   Location	Parent organization or folder for the project	Controls where the project sits in the resource hierarchy.
   Manage quota message	Shows project creation quota for the account	New or trial accounts may have a limit on how many projects exist.



4. Choose a project name.

   The project name is like a nickname.

   It should be descriptive enough that people can understand the purpose of the project in the console.

   Examples:

   • Corporate website production
   • Data analytics development

5. Confirm the project ID.

   The project ID is more important than the project name.

   It is the permanent identifier used by Google Cloud APIs, CLI commands, service accounts, logs, and resource paths.

   Google Cloud can suggest a project ID, but you should review it before creating the project.

   warning

   The project ID cannot be changed after the project is created. If the ID is wrong, you usually need to create a new project with the correct ID.

6. Choose the project location.

   The location field decides where the project belongs in the hierarchy.

   • For a company account, the project can be placed under the organization or inside a folder.

   • For a personal account, the location may show No organization.

7. Create the project.

   After a moment, the project is created and becomes available in the project picker.

8. Switch to the new project.

   Use the project picker to select the new project.

9. Confirm the project details.

   Check the project dashboard and confirm:

   • Project name
   • Project ID
   • Project number

   The project number is another unique identifier generated by Google Cloud.

   You may need it when working with APIs, service agents, audit logs, or support cases.

Shutting Down a Project

Google Cloud projects are shut down before they are permanently deleted.

This provides a recovery window for accidental deletion.

Typical steps:

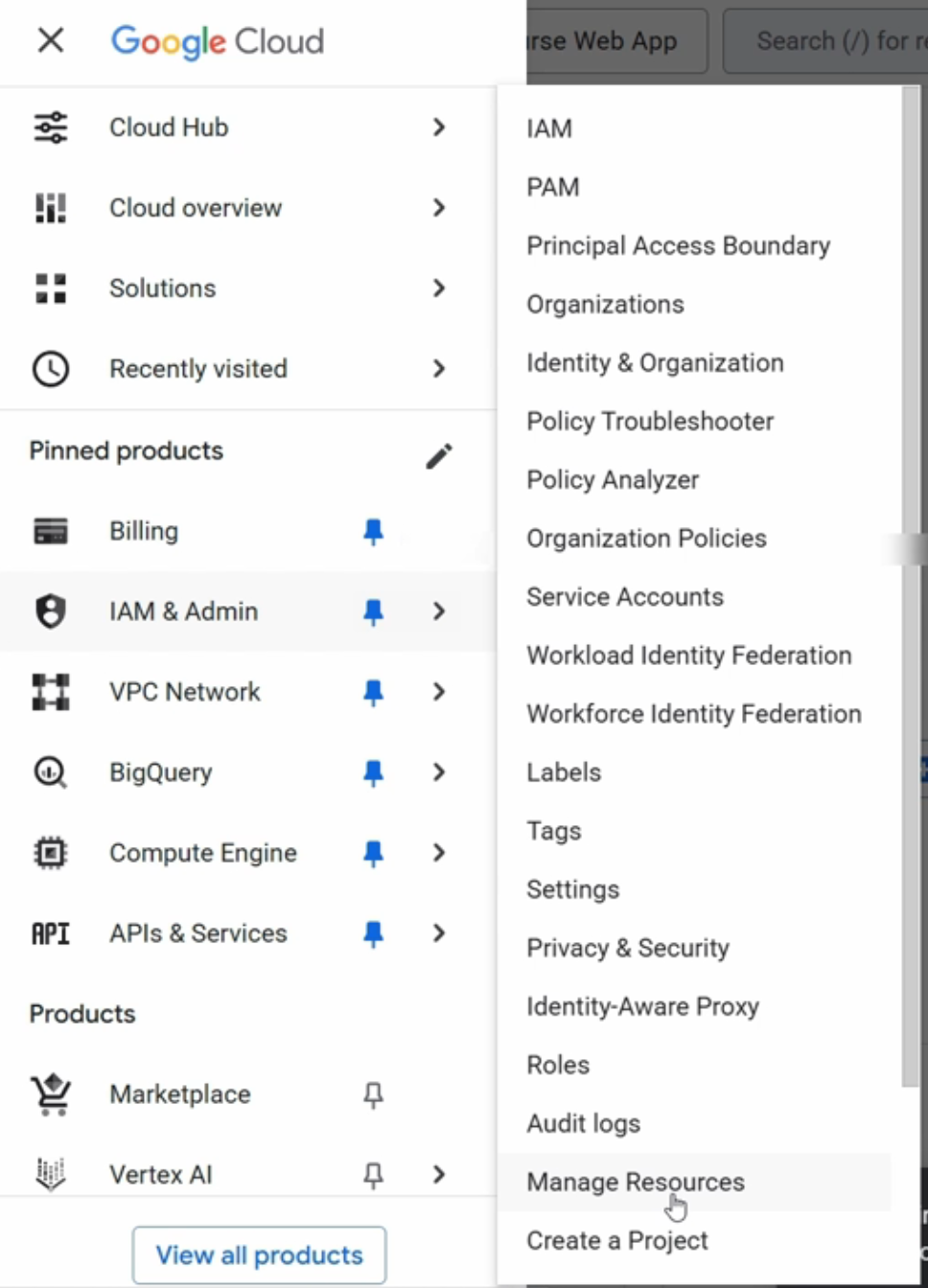

1. Go to IAM and Admin.

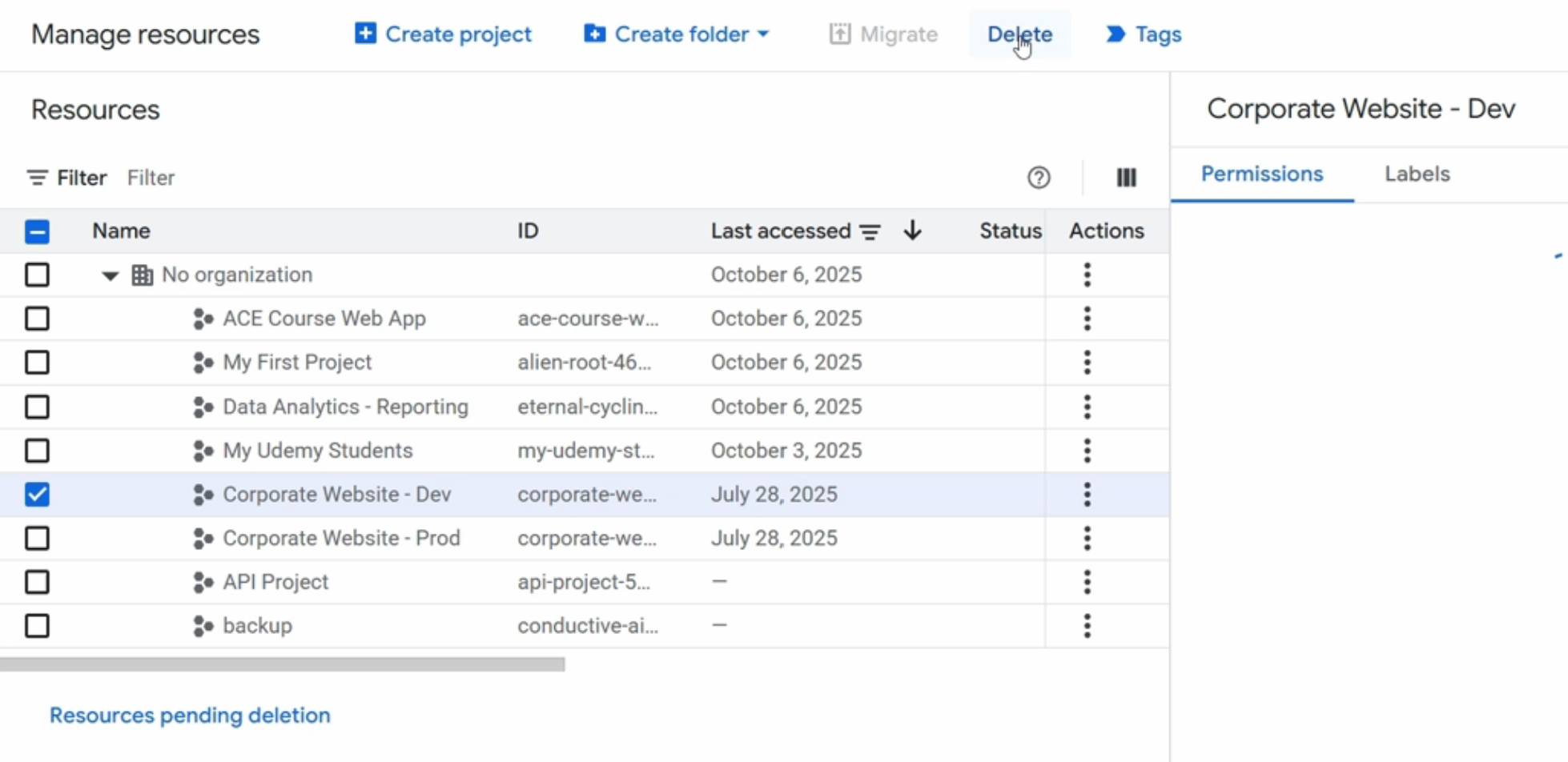

2. Open Manage Resources.

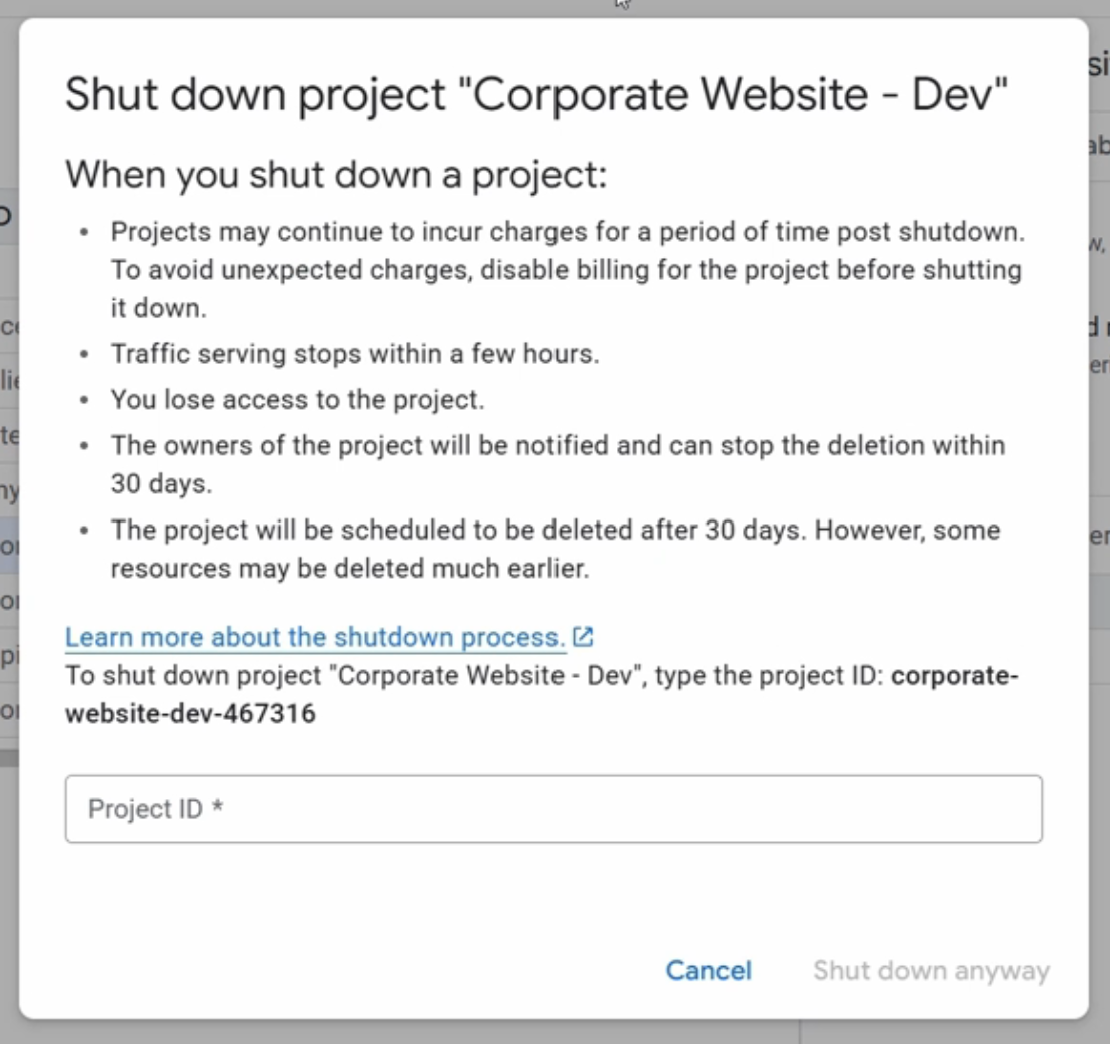

3. Select the project and choose Delete or Shut down.



4. Type the project ID to confirm.

   warning

   Project shutdown is a destructive action.

   Confirm that required resources, logs, data, and billing records are no longer needed before shutting down a project.



References

• Google Cloud resource hierarchy
• Resource hierarchy for IAM access control
