Advanced VPC with Cloud Native Application
Overview
In this lab, we'll create the following:
- A VPC spanning two availability zones
- each AZ will have a public and private subnet
- An internet gateway and a NAT gateway
- Public and private routes established
- An Application load BalAncer (ALB) which will loadbalance traffic across
- An autoscaling group of t3.micro instances with NGINX installed, and
- A Cloud-native application consisting of a front-end and an API,
- A database instance running MongoDB

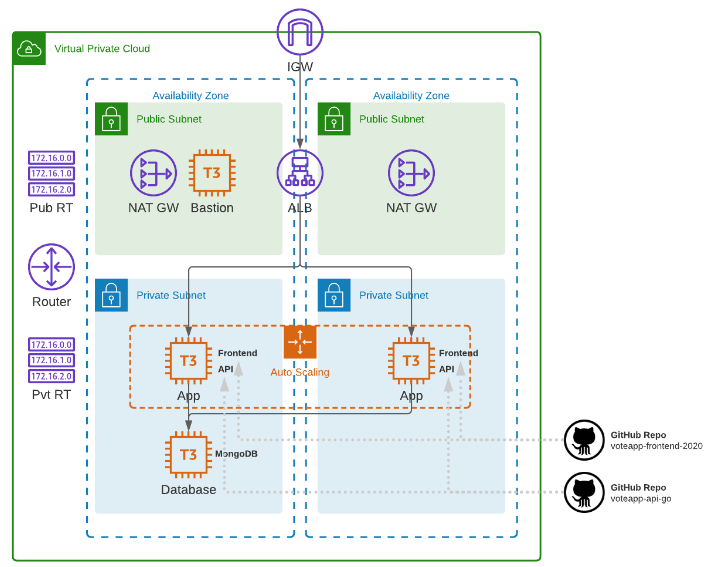

Diagram:
Local environment used for this lab.
- Windows machine/laptop
- Visual Studio Code v1.67.2 (VSCode)
- WSL on Visual Studio Code
- Amazon Web Services (AWS) resources
Pre-requisites
- Setup Keys and Permissions
- Setup your Local Environment and Install Extensions
- Configure the Credentials File
- Install Terraform
Create the Config Files
From Hashicorp's documentation on AWS Provider:
Use the Amazon Web Services (AWS) provider to interact with the many resources supported by AWS. You must configure the provider with the proper credentials before you can use it.
provider.tf
### provider.tf
terraform {
required_version = ">= 0.12"
required_providers {
aws = {
source = "hashicorp/aws"
version = ">= 4.16.0"
}
}
}
provider "aws" {
region = var.aws_region
shared_credentials_files = var.my_credentials
profile = var.my_profile
}
In addition to this, we can also create the following files inside the project directory. We'll leave them blank for now as we will be configuring them later.
touch main.tf
touch terraform.tfvars
touch variables.tf
touch datasources.tf
touch outputs.tf
Modularize Terraform Configuration files
In the previous labs, we've done all the core configurations in the main.tf file. This is alright if you're building a fairly simple system, but it gets messy (and increasingly long) as you build more and more complex setups.
To keep our main.tf file clutter-free and easy to read, we will utilize Terraform AWS modules which will help us modularize the parts and keep each one in their respective directories.
Create the modules directory and child modules inside it. The modules that we'll be using are:
- application
- bastion
- network
- security
- storage
mkdir -p modules/{application,bastion,network,security,storag
e}
Inside each of the child modules, create the main.tf, outputs.tf, and vars.tf. These will be the core config files for each module.
touch modules/{application,bastion,network,security,storage}/
{main.tf,outputs.tf,vars.tf}
The project directory should now look like this.
tree
├── datasources.tf
├── main.tf
├── modules
│ ├── application
│ │ ├── main.tf
│ │ ├── outputs.tf
│ │ └── vars.tf
│ ├── bastion
│ │ ├── main.tf
│ │ ├── outputs.tf
│ │ └── vars.tf
│ ├── network
│ │ ├── main.tf
│ │ ├── outputs.tf
│ │ └── vars.tf
│ ├── security
│ │ ├── main.tf
│ │ ├── outputs.tf
│ │ └── vars.tf
│ └── storage
│ ├── main.tf
│ ├── outputs.tf
│ └── vars.tf
└── outputs.tf
├── provider.tf
├── terraform.tfvars
└── variables.tf
6 directories, 21 files
Let's now create the global main.tf file.
main.tf
### main.tf
module "network" {
source = "./modules/network"
availability_zones = var.availability_zones
cidr_block = var.cidr_block
}
module "security" {
source = "./modules/security"
vpc_id = module.network.vpc_id
workstation_ip = var.my_ip
depends_on = [
module.network
]
}
module "bastion" {
source = "./modules/bastion"
instance_ami = var.instance_ami
instance_type = var.bastion_instance_type
key_name = var.key_pair
subnet_id = module.network.public_subnets[0]
sg_id = module.security.bastion_sg_id
depends_on = [
module.network,
module.security
]
}
module "storage" {
source = "./modules/storage"
instance_ami = var.instance_ami
instance_type = var.db_instance_type
key_name = var.key_pair
subnet_id = module.network.private_subnets[0]
sg_id = module.security.mongodb_sg_id
depends_on = [
module.network,
module.security
]
}
module "application" {
source = "./modules/application"
instance_type = var.app_instance_type
key_name = var.key_pair
vpc_id = module.network.vpc_id
public_subnets = module.network.public_subnets
private_subnets = module.network.private_subnets
webserver_sg_id = module.security.application_sg_id
alb_sg_id = module.security.alb_sg_id
mongodb_ip = module.storage.private_ip
depends_on = [
module.network,
module.security,
module.storage
]
}
Notice that in the main file, it references the modules, starting with network. Next to it, the security module defines the configurations for the security groups.
It's important to note that in the security block, there's a depends_on block which states that it needs an "output" from the network module.
This means that you can only reference values from modules if the module has defined an output for that value.
Network Module
Looking inside the network module, we inspect the three files. The first one is the main.tf which si where we configure the VPC.
The modules's main.tf uses variables that are pulled from the global main.tf file. These variables are defined in the module's vars.tf file. Lastly, it also returns output values which are defined in the outputs.tf file.
main.tf
# Creates the vpc.
module "vpc" {
source = "terraform-aws-modules/vpc/aws"
name = "lab06-vpc"
cidr = var.cidr_block
azs = var.availability_zones
public_subnets = ["10.0.1.0/24", "10.0.2.0/24"]
private_subnets = ["10.0.101.0/24", "10.0.102.0/24"]
enable_nat_gateway = true
enable_vpn_gateway = false
tags = {
Name = "lab06-vpc"
}
}
vars.tf
variable "availability_zones" {}
variable "cidr_block" {}
outputs.tf
output "vpc_id" {
description = "The ID of the VPC"
value = module.vpc.vpc_id
}
output "public_subnets" {
description = "List of IDs of public subnets"
value = module.vpc.public_subnets
}
output "private_subnets" {
description = "List of IDs of private subnets"
value = module.vpc.private_subnets
}
For more details, check out the Hashicorp documentation on AWS VPC Terraform module.
Security Module
These contain all the configurations for the security groups. In the module's main.tf file, we can see that we have four security groups:
- security group for the bastion
- security group for the Application load balancer
- security group for the application itself
- security group for the MongoDB database
We can also see the main.tf file that the security module is dependent on the success of the network module as it references the vpc_id output which will be returned by the network module.
main.tf
resource "aws_security_group" "lab06-sg-bastion" {
name = "lab06-sg-bastion"
description = "bastion network traffic"
vpc_id = var.vpc_id
ingress {
description = "22 from workstation"
from_port = 22
to_port = 22
protocol = "tcp"
cidr_blocks = [var.workstation_ip]
}
egress {
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
}
tags = {
Name = "allow traffic"
}
}
resource "aws_security_group" "lab06-sg-alb" {
name = "lab06-sg-alb"
description = "alb network traffic"
vpc_id = var.vpc_id
ingress {
description = "80 from anywhere"
from_port = 80
to_port = 80
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
egress {
from_port = 0
to_port = 0
protocol = "-1"
security_groups = [aws_security_group.lab06-sg-application.id]
}
tags = {
Name = "allow traffic"
}
}
resource "aws_security_group" "lab06-sg-application" {
name = "lab06-sg-application"
description = "application network traffic"
vpc_id = var.vpc_id
ingress {
description = "80 from alb"
from_port = 80
to_port = 80
protocol = "tcp"
cidr_blocks = ["10.0.1.0/24", "10.0.2.0/24"]
#security_groups = [aws_security_group.alb.id]
}
ingress {
description = "8080 from alb"
from_port = 8080
to_port = 8080
protocol = "tcp"
cidr_blocks = ["10.0.1.0/24", "10.0.2.0/24"]
#security_groups = [aws_security_group.alb.id]
}
ingress {
description = "22 from bastion"
from_port = 22
to_port = 22
protocol = "tcp"
security_groups = [aws_security_group.lab06-sg-bastion.id]
}
egress {
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
}
tags = {
Name = "application allow traffic"
}
}
resource "aws_security_group" "lab06-sg-mongodb" {
name = "lab06-sg-mongodb"
description = "mongodb network traffic"
vpc_id = var.vpc_id
ingress {
description = "27017 from application"
from_port = 27017
to_port = 27017
protocol = "tcp"
#cidr_blocks = ["10.0.0.0/16"]
security_groups = [aws_security_group.lab06-sg-application.id]
}
ingress {
description = "22 from bastion"
from_port = 22
to_port = 22
protocol = "tcp"
security_groups = [aws_security_group.lab06-sg-bastion.id]
}
egress {
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
}
tags = {
Name = "lab06-sg-mongodb"
}
}
Like the previous one, the security module also uses variables which are declared in the vars.tf and returns output values defined in the outputs.tf.
vars.tf
variable "vpc_id" {}
variable "workstation_ip" {}
outputs.tf
output "application_sg_id" {
description = "web server sg id"
value = aws_security_group.lab06-sg-application.id
}
output "alb_sg_id" {
description = "alb sg id"
value = aws_security_group.lab06-sg-alb.id
}
output "mongodb_sg_id" {
description = "mongodb sg id"
value = aws_security_group.lab06-sg-mongodb.id
}
output "bastion_sg_id" {
description = "bastion sg id"
value = aws_security_group.lab06-sg-bastion.id
}
Bastion Module
Here we have three config files as well. This module will launch a jumpbox that will allow us to access the instances in the private subnets.
The bastion will be deployed onto the first public subnet which is configured with a security group. The main.tf file defines all the "specs" for the instance.
Notice that the module is also dependent on the success of the previous two module as it references the private_subnet output and mongodb_sg_id output from the network and security modules, respectively.
The module's main.tf file uses variables that are defined in the vars.tf. This module also returns the bastion's public IP as output values declared in the outputs.tf.
main.tf
resource "aws_instance" "lab06-bastion" {
ami = var.instance_ami
instance_type = var.instance_type
key_name = var.key_name
subnet_id = var.subnet_id
vpc_security_group_ids = [var.sg_id]
associate_public_ip_address = true
tags = {
Name = "lab06-bastion"
}
}
vars.tf
variable "instance_type" {}
variable "key_name" {}
variable "subnet_id" {}
variable "sg_id" {}
variable "instance_ami" {}
outputs.tf
output "public_ip" {
description = "public ip address"
value = aws_instance.lab06-bastion.public_ip
}
Storage Module
This module defines the configuration of the MongoDB database.From the main.tf file, we can see that this database instance won't be assigned with a public IP (unlike the bastion instance) as seen with the lack of the associate_public_ip_address field. This is because the database will be launched on a private subnet.
Note that we only configured a single database instance for our lab purposes only. it is best practice to configure replicasets for the database and the data stored in EBS that's provisioned with IOPS.
main.tf
resource "aws_instance" "lab06-mongo" {
ami = var.instance_ami
instance_type = var.instance_type
key_name = var.key_name
subnet_id = var.subnet_id
vpc_security_group_ids = [var.sg_id]
user_data = filebase64("${path.module}/setup-mongodb.sh")
tags = {
Name = "lab06-mongo"
}
}
To bootstrap the instance with MongoDB, the module uses user_data to run the setup-mongodb.sh.
setup-mongodb.sh
#!/bin/bash
# Download and install mongoDB package
wget -qO - https://www.mongodb.org/static/pgp/server-4.2.asc | sudo apt-key add -
echo "deb [ arch=amd64,arm64 ] https://repo.mongodb.org/apt/ubuntu bionic/mongodb-org/4.2 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-4.2.list
apt-get -y update
apt-get install -y mongodb-org
# Configure the conf file
cat > /etc/mongod.conf << EOF
storage:
dbPath: /var/lib/mongodb
journal:
enabled: true
systemLog:
destination: file
logAppend: true
path: /var/log/mongodb/mongod.log
net:
port: 27017
bindIp: 0.0.0.0
processManagement:
timeZoneInfo: /usr/share/zoneinfo
EOF
# Start the mongodb service
echo starting mongo...
systemctl start mongod
echo preparing mongodb data population script...
mkdir -p /tmp/lab06-app
cd /tmp/lab06-app
# Generates a file containing sample data which will populate the DB
cat > db.setup.js << EOF
use langdb;
db.languages.insert({"name" : "csharp", "codedetail" : { "usecase" : "system, web, server-side", "rank" : 5, "compiled" : false, "homepage" : "https://dotnet.microsoft.com/learn/csharp", "download" : "https://dotnet.microsoft.com/download/", "votes" : 0}});
db.languages.insert({"name" : "python", "codedetail" : { "usecase" : "system, web, server-side", "rank" : 3, "script" : false, "homepage" : "https://www.python.org/", "download" : "https://www.python.org/downloads/", "votes" : 0}});
db.languages.insert({"name" : "javascript", "codedetail" : { "usecase" : "web, client-side", "rank" : 7, "script" : false, "homepage" : "https://en.wikipedia.org/wiki/JavaScript", "download" : "n/a", "votes" : 0}});
db.languages.insert({"name" : "go", "codedetail" : { "usecase" : "system, web, server-side", "rank" : 12, "compiled" : true, "homepage" : "https://golang.org", "download" : "https://golang.org/dl/", "votes" : 0}});
db.languages.insert({"name" : "java", "codedetail" : { "usecase" : "system, web, server-side", "rank" : 1, "compiled" : true, "homepage" : "https://www.java.com/en/", "download" : "https://www.java.com/en/download/", "votes" : 0}});
db.languages.insert({"name" : "nodejs", "codedetail" : { "usecase" : "system, web, server-side", "rank" : 20, "script" : false, "homepage" : "https://nodejs.org/en/", "download" : "https://nodejs.org/en/download/", "votes" : 0}});
db.languages.find().pretty();
EOF
until mongo < db.setup.js; do sleep 5; done
echo fin v1.00!
This module also has variables and output values defined in the vars.tf and outputs.tf, respectively.
vars.tf
variable "instance_type" {}
variable "key_name" {}
variable "subnet_id" {}
variable "sg_id" {}
variable "instance_ami" {}
outputs.tf
output "private_ip" {
description = "private ip address"
value = aws_instance.lab06-mongo.private_ip
}
Application Module
This module is another important component as this setups the ALBs, Autoscaling group and the application itself.
The application load balancer (ALB) uses two target groups:
- target group for the frontend webservers - listens to port 80
- target group for the API - listens to port 8080
The ALB is configured to listen on port 8080 and will forward the traffic to the target group based on the configured listener rules. This ensures traffice is loadbalanced across the instances in the auto caling group (ASG).
main.tf
#====================================
resource "aws_launch_template" "lab06-apptemplate" {
name = "lab06-application"
image_id = data.aws_ami.ubuntu.id
instance_type = var.instance_type
key_name = var.key_name
vpc_security_group_ids = [var.webserver_sg_id]
user_data = base64encode(data.template_cloudinit_config.config.rendered)
tag_specifications {
resource_type = "instance"
tags = {
Name = "lab06-frontend-app"
Owner = "Eden-Jose"
}
}
}
#====================================
resource "aws_lb" "lab06-alb" {
name = "lab06-alb"
internal = false
load_balancer_type = "application"
security_groups = [var.alb_sg_id]
subnets = var.public_subnets
enable_deletion_protection = false
tags = {
Environment = "Prod"
}
}
resource "aws_alb_target_group" "lab06-tg-webserver" {
name = "lab06-tg-webserver"
vpc_id = var.vpc_id
port = 80
protocol = "HTTP"
health_check {
path = "/"
interval = 10
healthy_threshold = 3
unhealthy_threshold = 6
timeout = 5
}
}
resource "aws_alb_target_group" "lab06-tg-api" {
name = "lab06-tg-api"
vpc_id = var.vpc_id
port = 8080
protocol = "HTTP"
health_check {
path = "/ok"
interval = 10
healthy_threshold = 3
unhealthy_threshold = 6
timeout = 5
}
}
resource "aws_alb_listener" "lab06-listener-front_end" {
load_balancer_arn = aws_lb.lab06-alb.arn
port = "80"
protocol = "HTTP"
default_action {
type = "forward"
target_group_arn = aws_alb_target_group.lab06-tg-webserver.arn
}
tags = {
Name = "lab06-listener-front_end"
}
}
resource "aws_alb_listener_rule" "lab06-listener-frontend_rule1" {
listener_arn = aws_alb_listener.lab06-listener-front_end.arn
priority = 100
condition {
path_pattern {
values = ["/"]
}
}
action {
type = "forward"
target_group_arn = aws_alb_target_group.lab06-tg-webserver.arn
}
tags = {
Name = "lab06-listener-frontend_rule1"
}
}
resource "aws_alb_listener_rule" "lab06-listener-api_rule1" {
listener_arn = aws_alb_listener.lab06-listener-front_end.arn
priority = 10
condition {
path_pattern {
values = [
"/languages",
"/languages/*",
"/languages/*/*",
"/ok"
]
}
}
action {
type = "forward"
target_group_arn = aws_alb_target_group.lab06-tg-api.arn
}
tags = {
Name = "lab06-listener-api_rule1"
}
}
#====================================
resource "aws_autoscaling_group" "lab06-asg" {
name = "lab06-asg"
vpc_zone_identifier = var.private_subnets
desired_capacity = var.asg_desired
max_size = var.asg_max_size
min_size = var.asg_min_size
target_group_arns = [
aws_alb_target_group.lab06-tg-webserver.arn,
aws_alb_target_group.lab06-tg-api.arn
]
launch_template {
id = aws_launch_template.lab06-apptemplate.id
version = "$Latest"
}
}
The module also depends on the output values returned by the network, security, and storage modules.
In addition to this, we can see that the main file uses some data sources which allows using data that are defined outside of Terraform or are define by another separate file. We've placed all the data sources in its separate file.
datasources.tf
data "aws_ami" "ubuntu" {
most_recent = true
filter {
name = "name"
values = ["ubuntu/images/hvm-ssd/ubuntu-focal-20.04-amd64-server-*"]
}
filter {
name = "virtualization-type"
values = ["hvm"]
}
# Canonical
owners = ["099720109477"]
}
data "template_cloudinit_config" "config" {
gzip = false
base64_encode = false
#userdata
part {
content_type = "text/x-shellscript"
content = file("${path.module}/install-frontend-api.sh")
}
}
data "aws_instances" "application" {
instance_tags = {
Name = "lab06-frontendApp"
Owner = "Eden Jose"
}
instance_state_names = ["pending", "running"]
depends_on = [
aws_autoscaling_group.lab06-asg
]
}
The bootstraping process is done within the template_cloudinit_config data source. It uses a script to install the frontend application and API onto the instances.
install-frontend-api.sh
#! /bin/bash
apt-get -y update
apt-get -y install nginx
apt-get -y install jq
# Creates the variables
# ALB_DNS defined where the frontend will forward the API requests to.
# MONGODB_PRIVATEIP defines where the data will be written to
ALB_DNS=${aws_lb.lab06-alb.dns_name}
MONGODB_PRIVATEIP=${var.mongodb_ip}
mkdir -p /tmp/cloudacademy-app
cd /tmp/cloudacademy-app
echo ===========================
echo FRONTEND - download latest release and install...
mkdir -p ./voteapp-frontend-react-2020
pushd ./voteapp-frontend-react-2020
curl -sL https://api.github.com/repos/cloudacademy/voteapp-frontend-react-2020/releases/latest | jq -r '.assets[0].browser_download_url' | xargs curl -OL
INSTALL_FILENAME=$(curl -sL https://api.github.com/repos/cloudacademy/voteapp-frontend-react-2020/releases/latest | jq -r '.assets[0].name')
tar -xvzf $INSTALL_FILENAME
rm -rf /var/www/html
cp -R build /var/www/html
cat > /var/www/html/env-config.js << EOFF
window._env_ = {REACT_APP_APIHOSTPORT: "$ALB_DNS"}
EOFF
popd
echo ===========================
echo API - download latest release, install, and start...
mkdir -p ./voteapp-api-go
pushd ./voteapp-api-go
curl -sL https://api.github.com/repos/cloudacademy/voteapp-api-go/releases/latest | jq -r '.assets[] | select(.name | contains("linux-amd64")) | .browser_download_url' | xargs curl -OL
INSTALL_FILENAME=$(curl -sL https://api.github.com/repos/cloudacademy/voteapp-api-go/releases/latest | jq -r '.assets[] | select(.name | contains("linux-amd64")) | .name')
tar -xvzf $INSTALL_FILENAME
#start the API up...
MONGO_CONN_STR=mongodb://$MONGODB_PRIVATEIP:27017/langdb ./api &
popd
systemctl restart nginx
systemctl status nginx
echo fin v1.00!
In this script, we can see the following lines which pulls the latest frontend release from the Github repo and stores into the NGINX default serving directory.
echo ===========================
echo FRONTEND - download latest release and install...
mkdir -p ./voteapp-frontend-react-2020
pushd ./voteapp-frontend-react-2020
curl -sL https://api.github.com/repos/cloudacademy/voteapp-frontend-react-2020/releases/latest | jq -r '.assets[0].browser_download_url' | xargs curl -OL
INSTALL_FILENAME=$(curl -sL https://api.github.com/repos/cloudacademy/voteapp-frontend-react-2020/releases/latest | jq -r '.assets[0].name')
tar -xvzf $INSTALL_FILENAME
rm -rf /var/www/html
cp -R build /var/www/html
cat > /var/www/html/env-config.js << EOFF
window._env_ = {REACT_APP_APIHOSTPORT: "$ALB_DNS"}
EOFF
popd
The lines that follow then pulls the latest API release, starts up, and points to the MongoDB's private IP addresses on port 27017.
echo ===========================
echo API - download latest release, install, and start...
mkdir -p ./voteapp-api-go
pushd ./voteapp-api-go
curl -sL https://api.github.com/repos/cloudacademy/voteapp-api-go/releases/latest | jq -r '.assets[] | select(.name | contains("linux-amd64")) | .browser_download_url' | xargs curl -OL
INSTALL_FILENAME=$(curl -sL https://api.github.com/repos/cloudacademy/voteapp-api-go/releases/latest | jq -r '.assets[] | select(.name | contains("linux-amd64")) | .name')
tar -xvzf $INSTALL_FILENAME
#start the API up...
MONGO_CONN_STR=mongodb://$MONGODB_PRIVATEIP:27017/langdb ./api &
popd
Next, the vars.tf file contains all the variables that will be passed by the global main.tf (this is the main.tf outside of the modules directory) to the modules.
vars.tf
variable "instance_type" {}
variable "key_name" {}
variable "vpc_id" {}
variable "public_subnets" {}
variable "private_subnets" {}
variable "webserver_sg_id" {}
variable "alb_sg_id" {}
variable "mongodb_ip" {}
variable "asg_desired" {
type = number
default = 2
}
variable "asg_max_size" {
type = number
default = 2
}
variable "asg_min_size" {
type = number
default = 2
}
Lastly, the outputs.tf declares the outputs that are returned when the module is ran.
outputs.tf
output "dns_name" {
description = "alb dns"
value = aws_lb.lab06-alb.dns_name
}
output "private_ips" {
description = "application instance private ips"
value = data.aws_instances.application.private_ips
}
Configure the variables file
Now that we understand the main config file and the modules it uses, there's only two more config file to complete our setup. Since our templates uses a ton of variables, we have to declare them in the variables.tf file
After that, we can then assign the values onto these variables through the terraform.tfvars file.
variables.tf
# Variables for setting up terraform
variable "aws_region" {
description = "AWS region"
type = string
}
variable "my_profile" {
description = "Profile to be used to connect to AWS"
type = string
}
variable "my_credentials" {
description = "Credentials to be used to connect to AWS"
type = list(string)
}
# Variables for creating the VPC and EC2 instances
variable "key_pair" {
description = "Key name"
type = string
}
# AMI for bastion and mongodb
variable "instance_ami" {
type = string
}
variable "bastion_instance_type" {
type = string
}
variable "app_instance_type" {
type = string
}
variable "db_instance_type" {
type = string
}
variable "availability_zones" {
type = list(any)
}
variable "cidr_block" {
type = string
}
variable "my_ip" {
type = string
}
terraform.tfvars
# Variables for setting up terraform
aws_region = "ap-southeast-1"
my_credentials = ["/mnt/c/Users/Eden.Jose/.aws/credentials"]
my_profile = "vscode-dev"
key_pair = "tf-user-keypair"
# Variables for creating the VPC and EC2 instances
availability_zones = ["ap-southeast-1a", "ap-southeast-1b", "ap-southeast-1c"]
cidr_block = "10.0.0.0/16"
bastion_instance_type = "t3.micro"
app_instance_type = "t3.micro"
db_instance_type = "t3.micro"
# AMI for bastion and mongodb
# Ubuntu Server 22.04 LTS (HVM), SSD Volume Type
instance_ami = "ami-04d9e855d716f9c99"
Configure the outputs file
One more thing, we have to configure the outputs.tf file with the expected output values that will be returned once we run the template.
outputs.tf
output "alb_dns" {
description = "alb dns"
value = module.application.dns_name
}
output "bastion_public_ip" {
description = "bastion public ip"
value = module.bastion.public_ip
}
output "application_private_ips" {
description = "application instance private ips"
value = module.application.private_ips
}
output "mongodb_private_ip" {
description = "mongodb private ip"
value = module.storage.private_ip
}

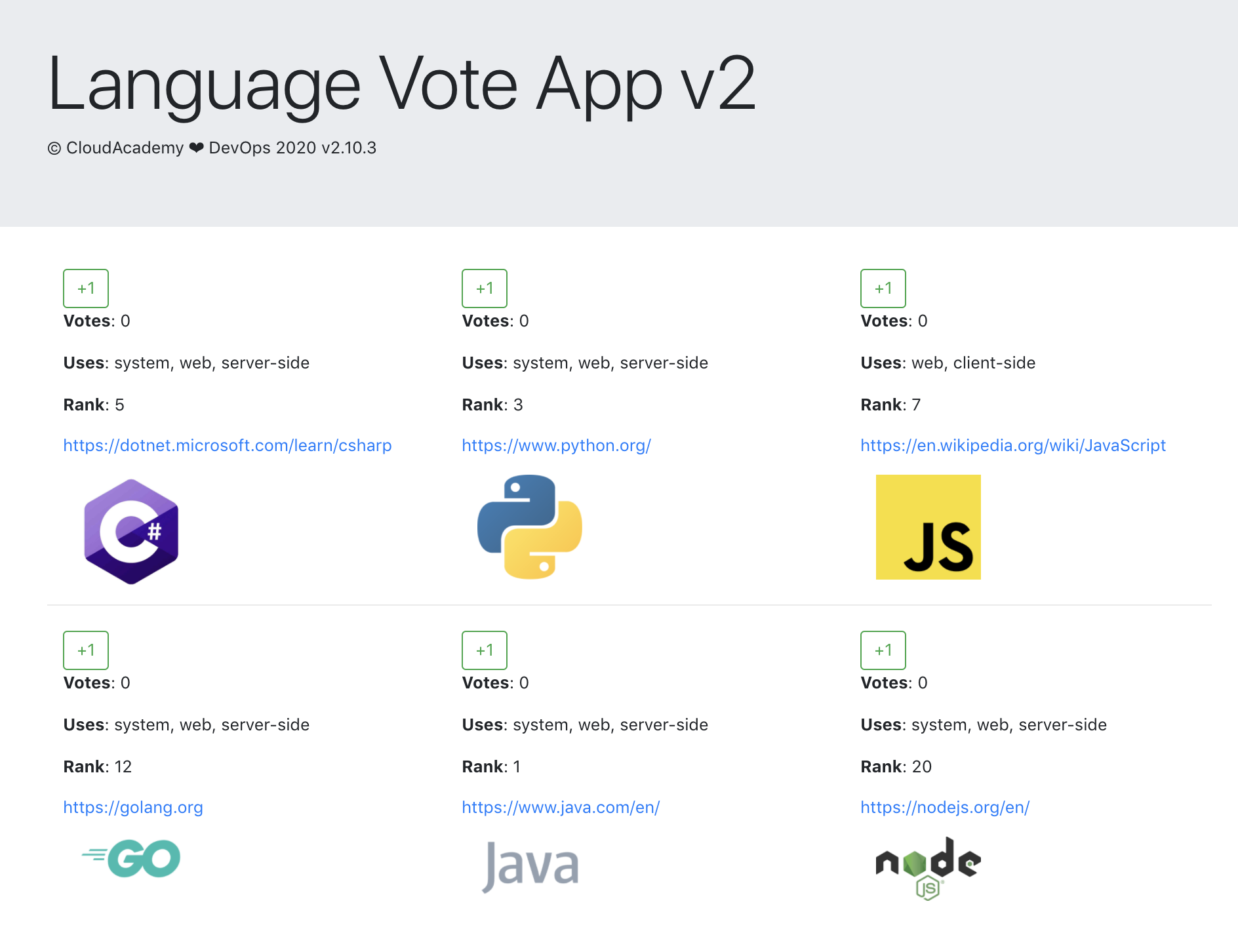

About the Cloud-native Application
Here are some details about the cloud-native application:
- It allows you to vote for your programming language
- Votes are then stored in a MongoDB database (launched on a private subnet)
- Data can be called to the frontend through API using Ajax calls
- This API will then read and write to the MongoDB database.
- The weblayer where the autoscaling group is launched will run both the frontend and API
- The application will be pulling the the latest release from the repo below
The repo for the applications:
Time to Apply!
But first, let's export our machine's IP as a variable that'll be use by the Terraform template.
export TF_VAR_my_ip=1.2.3.4/32
Initialize the working directory.
terraform init
Check the formatting of the config files and then verify if the the configurations are syntactically valid.
terraform fmt
terraform validate
Next, do a dry-run of the changes before actually applying the changes
terraform plan
If there are no errors, it should return this message
Plan: 34 to add, 0 to change, 0 to destroy.
──────────────────────────────────────────────────────────
Note: You didn't use the -out option to save this plan, so Terraform can't guarantee to take exactly these actions if
you run "terraform apply" now.
Finally, apply the changes. It should return output values once it's successfully provisioned the resources.
terraform apply -auto-approve
Apply complete! Resources: 34 added, 0 changed, 0 destroyed.
Outputs:
alb_dns = "lab06-alb-2087422437.ap-southeast-1.elb.amazonaws.com"
application_private_ips = tolist([
"10.0.102.206",
"10.0.101.107",
])
bastion_public_ip = "13.212.219.198"
mongodb_private_ip = "10.0.101.232"
Do a cURL on the ALB DNS name to check if it will return a "200 OK" response.
curl -I lab06-alb-2087422437.ap-southeast-1.elb.amazonaws.com
HTTP/1.1 200 OK
Date: Sat, 11 Jun 2022 15:21:15 GMT
Content-Type: text/html
Content-Length: 2505
Connection: keep-alive
Server: nginx/1.18.0 (Ubuntu)
Last-Modified: Sat, 11 Jun 2022 15:12:35 GMT
ETag: "62a4b0e3-9c9"
Accept-Ranges: bytes
Verify this response by checking the DNS name through a web browser. We can now vote on the language and these votes will be forwarded downstream onto the ALB then to the API target groups.
NOTE: As of 2022, there seems to be a bug on the application because it doesn't load the full webpage. As such, we can only test up to this point. The important thing is we're able to provision the resources and deploy the application
The webpage should look like this.

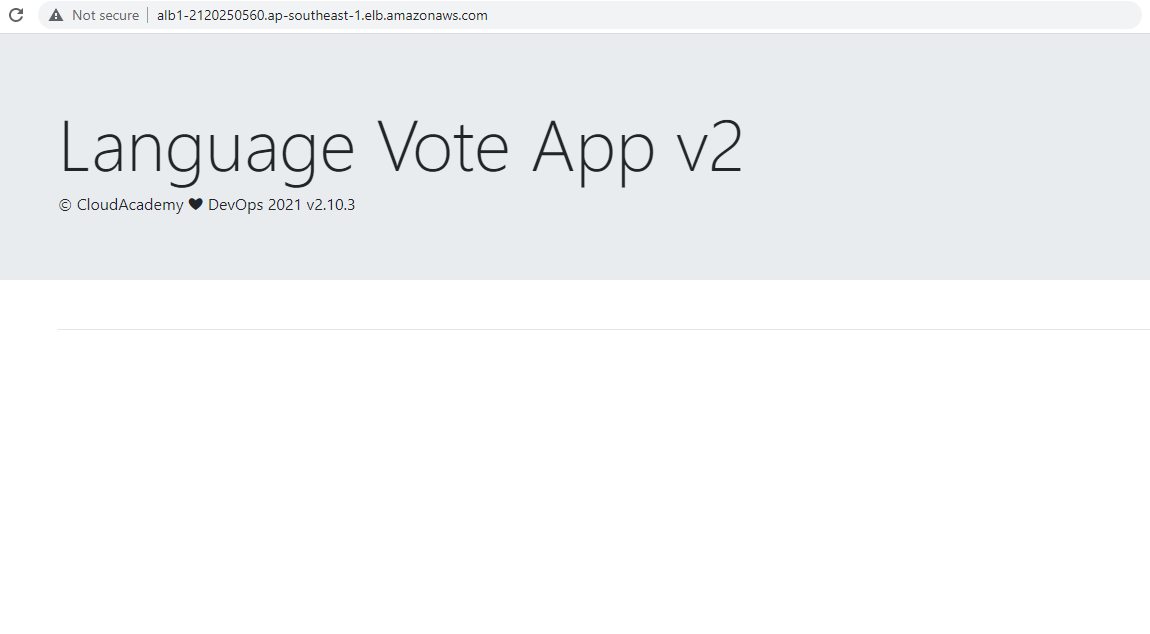

However when I try to open the ALB's DNS name in the browser, I'm getting an incomplete webpage which doesn't display the voting tick boxes for the languages.
In case the bug in the voting app is resolved
Tried deploying the applications in different regions, and using different keypairs and API keys but it still doesn't display the "buttons".
In the event that this get resolved in the distant future, here's some ways to further test the application.
- Inspect the traffic through the browser.
Click the three dots in the upper right --> More tools --> Developer tools
-
When you vote, a "vote" HTTP request will appear on the lower left. Click the Header.
-
Connect to the bastion host then to the mongodb instance
ssh -i "keypair.pem" ubuntu@<public-ip-bastion>
ssh ubuntu@<private-ip-mongodb>
- Run the DB client and check the data stored in it.
mongo
> use langdb
> db.languages.find().pretty()
Cleanup
To delete all the resources, just run the destroy command.
terraform destroy -auto-approve
