Create the Virtual Networks

Updated Sep 15, 2023 ·

Overview

In VirtualBox, you will need to create the networks that will be used by the nodes.

VirtualBox Network Type	Network Name	Purpose / Network Type	CIDR / Address	DHCP
Host-Only Adapter	ManagementNetwork	Management (Controller ↔ Nodes)	10.0.0.0/24	Disabled
NAT Network	ProviderNetwork	Provider / VM traffic	10.10.10.0/24	Disabled (manual IPs optional)
NAT Network	Internet	Internet access / Updates	10.0.2.0/24	Enabled

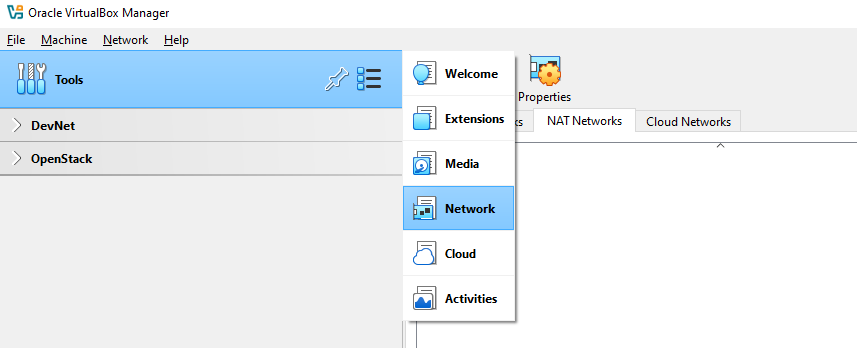

To create the networks, go to Tools → Network → NAT Network.

Host-Only Adapter (Management Network)

Note: You cannot rename Host-Only adapters in VirtualBox on Windows. VirtualBox does not allow renaming in the GUI, because it links directly to a network interface in Windows.

1. Click + to create a new host-only adapter.

2. Select the adapter → click Edit:

   • IPv4 Address: 10.0.0.1
   • IPv4 Network Mask: 255.255.255.0
   • DHCP: Disabled (we’ll assign static IPs for the VMs)

3. Click Apply to save.

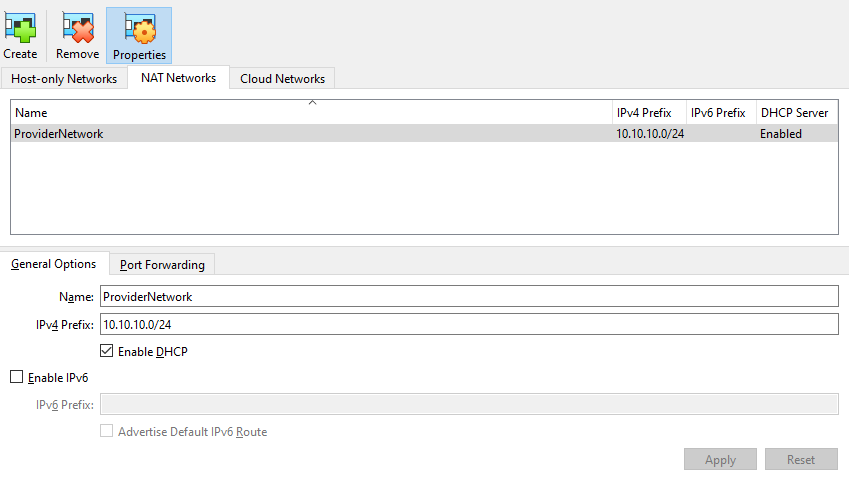

NAT Network (Provider Network)

1. Click + to create a new NAT network.

2. Click the Edit (gear icon) and update based on the table above.

3. Click Apply to save.

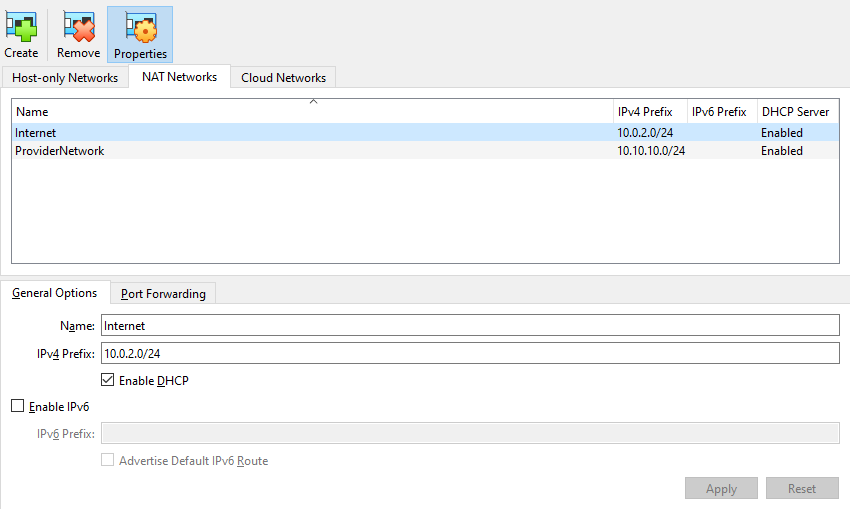

NAT Network (Internet)

1. Click + to create a new NAT network.

2. Click the Edit (gear icon) and update based on the table above.

3. Click Apply to save.



Next Steps

Next, create the virtual machines and configure the VM settings.

See Create the VMs.
