Advanced Model Settings

Updated Jun 13, 2026 ·

Overview

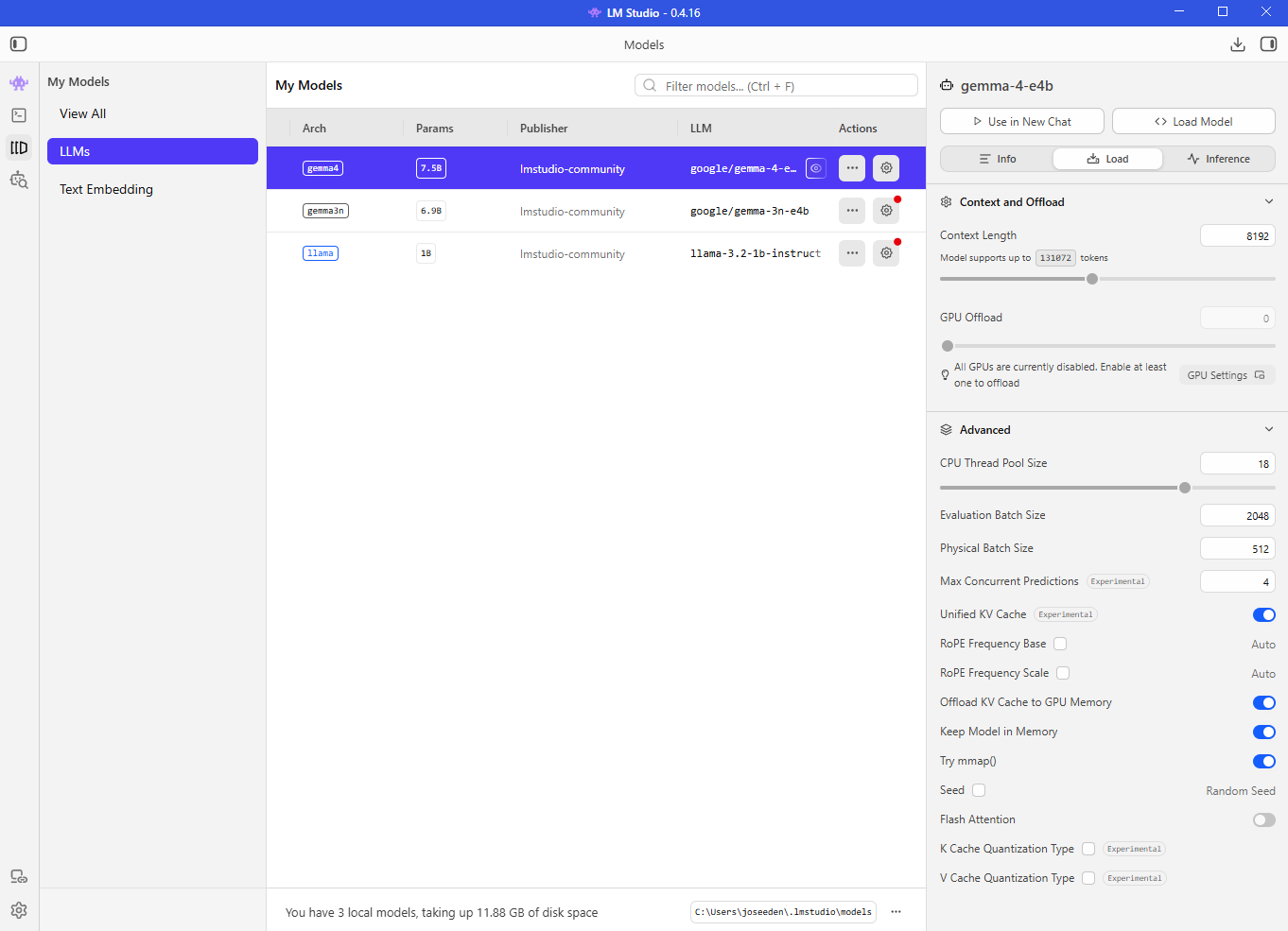

Most users can keep the defaults, but the LM Studio provides more advanced options for tuning performance and memory usage.

Setting	Description
Context Length	Controls how much conversation and information the model can remember at one time. Larger values use more memory.
GPU Offload	Controls how much of the model runs on the GPU. Higher values use more GPU memory and can improve performance.
Batch Size	Controls how many tokens are processed together. Larger batch sizes can improve performance but use more memory.
Flash Attention	An optimized attention mechanism that can improve inference speed and reduce memory usage on supported hardware.
Default Settings	Usually provide a good balance between performance, memory usage, and stability for most users.

These settings mainly affect memory usage, performance, and hardware utilization

Most of the time, only the context length setting needs occasional adjustment.

Context Length

Context length determines how many tokens a model can process at one time. This includes your current prompt, previous messages, uploaded documents, and the model's generated responses.

• Controls how much information the model can work with
• Larger context windows require more memory
• Use only what you need

Models do not have unlimited memory. Every model has a maximum context length that defines how many tokens it can process.

Context Length	Approximate Words
4,000 tokens	~3,000 words
20,000 tokens	~15,000 words
100,000+ tokens	Very large documents

A rough estimate is:

1 token ≈ 0.75 words

For example, a context length of 4,000 tokens can hold roughly 3,000 words of text. This is usually enough for normal conversations and smaller documents.

Context Length and Memory Usage

A larger context window allows the model to process more information, but it also requires more memory.

Context Length	Memory Usage
4,000 tokens	Lower
20,000 tokens	Higher
100,000+ tokens	Very high

Even if a model supports a very large context window, using the maximum value all the time is usually unnecessary. The model must reserve memory for the configured context size, even if you do not use all of it.

Because of this, it is generally better to choose a context length that matches your workload.

Choosing the Context Length

The ideal context length depends on the task you are performing.

• Small chats need fewer tokens
• Long reports need more tokens
• Large PDFs may require larger context windows
• Very large tasks may need to be split into smaller parts

If a document is too large for your available RAM or VRAM, consider processing it in smaller sections and combining the results afterward.

In many cases, breaking a large task into smaller tasks produces better results while using significantly less memory.

GPU Offload

GPU Offload determines how much work is performed by the GPU.

• Uses GPU acceleration
• Improves generation speed
• Reduces CPU workload
• Usually left at maximum

In most cases:

GPU Offload = 100%

GPUs are designed for highly parallel workloads, which makes them much faster than CPUs for model inference.

Unless you have a specific reason, leave GPU Offload at the highest value.

EDIT: In my personal lab, my Dell Tower has an older GPU (NVIDIA Quadro K2000) that uses an older architecture that LM Studio may not fully optimize for.

When I try to load the model, CUDA attempts to launch kernels on unsupported hardware, which causes the load to fail with the following error:

CUDA error: no kernel image is available for execution on the device

In this case, setting GPU Offload to 0% (CPU only) provides better performance. Your mileage may vary based on your hardware.

Evaluation Batch Size

Batch size controls how many tokens are processed together.

• Higher values increase speed
• Higher values require more memory
• Lower values use less memory

Increasing batch size can improve performance if enough memory is available.

info

Most users can leave this setting unchanged.

RoPE Settings

RoPE settings are related to handling long context windows.

• Used for long documents
• Helps with extended context
• Advanced tuning option

For very large workloads, it is often better to split tasks into smaller chunks rather than relying on extremely large contexts.

info

Most users can leave this setting unchanged.

Flash Attention and KV Cache

Flash Attention and KV Cache help speed up text generation.

• Improves inference speed
• Reduces repeated calculations
• Can lower memory usage
• May not work perfectly on all models

These features help the model reuse previous calculations instead of recomputing everything repeatedly.

KV Cache

Without caching, the model repeatedly processes previous tokens while generating new tokens.

For example:

Token 1
Token 2
Token 3
Token 4

To generate Token 5, the model must consider the previous tokens.

Without caching:

Recalculate Token 1
Recalculate Token 2
Recalculate Token 3
Recalculate Token 4
Generate Token 5

With KV Cache:

Load cached results
Generate Token 5

This reduces the amount of work required and improves generation speed.

Flash Attention

Flash Attention works together with KV Cache.

• Speeds up token generation
• Helps with larger contexts
• Requires model support

Not every model supports these optimizations equally well.

As an example, enabling Flash Attention can increase generation speed on some models.

Configuration	Speed
Flash Attention Disabled	~23 tokens/sec
Flash Attention Enabled	~31 tokens/sec

Actual results vary, but enabling Flash Attention often provides faster generation speeds.

When to Enable Flash Attention

Flash Attention is worth testing when:

• You generate long responses
• You process large documents
• You want faster inference
• Your model supports it

If output quality remains good, keeping it enabled can provide better performance.

Recommended Settings

For most users:

Setting	Recommendation
Context Length	Use only what you need
GPU Offload	Maximum
Evaluation Batch Size	Default
RoPE Settings	Default
Flash Attention	Enable and test
KV Cache	Enable and test

These settings provide a good balance between performance, memory usage, and stability.
