Combining Tables

Updated May 25, 2024 ·

Overview​

Data analysis often requires merging multiple files. Instead of writing code, Tableau lets you combine data with drag-and-drop. Two common methods are:

  • Unions – Stacking data vertically
  • Joins – Linking tables based on relationships

Unions​

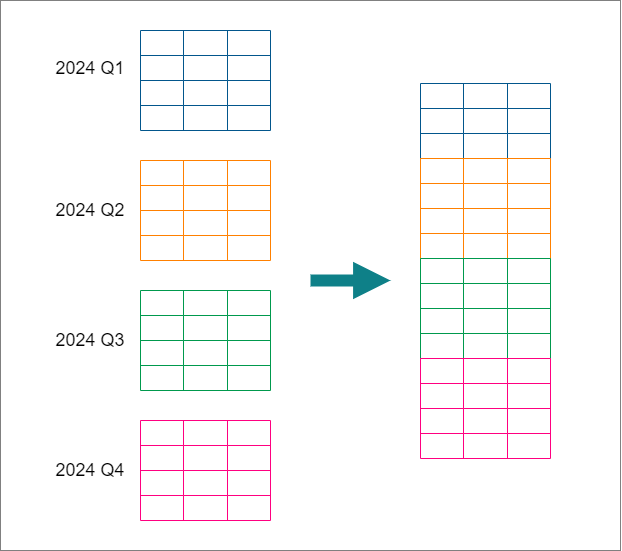

Unions combine data by stacking rows. Useful when data is stored in separate files by time period, like:

  • Monthly sales reports
  • Quarterly customer data

Example: A company provides trip data in separate quarterly files. To analyze yearly trends, these files can be stacked together as long as they have the same column structure.

Joins​

Joins combine tables with related information using a common key. Often used in relational databases to avoid redundancy.

Example: Two tables:

  1. Employees – Names, department, email, and location ID
  2. Offices – Location ID and office address

To match employees with their office address, use a join on Location ID as the key. Employees without a matching office get a NULL value.

Types of Joins​

Different join types return different results:

  • Inner Join – Only matched rows
  • Left Join – All left table rows + matched right table rows
  • Right Join – All right table rows + matched left table rows
  • Full Outer Join – All rows from both tables

Lab: Superstore Dataset​

We'll use a fictional Superstore dataset with 7 tables:

  • Orders (2016-2020) – Order details (who, what, where, when)
  • Returns – IDs of returned orders
  • Sales Reps – Sales representatives by region

Using Union​

Download the files here:

Problem​

  1. Determine the total row count after merging the 2016 to 2020 sheets.
  2. Identify the year with the fewest orders in the South Region.

Steps​

Load the data:

  • Open Tableau Public.
  • Click Microsoft Excel to open the file
  • The sheets appear under Connections

Create the union by stacking the data from multiple sheets into one table.

  • Drag Orders 2018 into the workspace amd double-click it.
  • Drag Orders 2019 and Orders 2020 into "Drag Table to Union".
  • Right-click → Edit Union → Add Orders 2016 and 2017 one by one.

Since our table now includes multiple years, we should rename it.

  • Close Edit Union.
  • Right-click the table → Rename → Enter Orders 2016-2020

Now, let’s verify the data in a worksheet.

  • Open a new worksheet.
  • Under Tables, drag the Orders 2016-2020 to the Text card.

Next, create a new worksheet that displays the order date and region.

  • Click the New Worksheet button at the bottom.
  • Drag Profit to Columns.
  • Drag Order Date and Region to rows in that order.
  • Drag Region to Color in the Marks card.
  • Hover the data for the South region for each year.

Solution​

Findings​

  1. There are a total of 11,979 rows after combining the sheets.
  2. The South region had its least number of orders in 2018.

Using Join​

We'll now use joins to add a dataset containing return orders to our worksheet to better analyze customer satisfaction.

Download the files here:

Problem​

  1. Find the region with the most returns from 2016 to 2020.

Steps​

Go to the Datasource:

  • Double-click Orders 2016-2020.
  • Drag Returns to the right and drop it.
  • A join icon will appear — click it and select "Left Join".
  • Go to Sheet 1 to ensure the row count remains unchanged.

Create a chart for returned orders:

  • In Sheet 1, drag Order Date and Region to Rows.
  • Drag Orders 2016-2020 to Columns.
  • Set Marks type to "Bar".
  • Drag Returned to Color in the Marks card.
  • Right-click the "Null" legend → Edit Alias → Rename to "No".
  • Hover over the graph to find the region with the most returns.

Solution​

Findings​

  1. The West region has the highest number of orders but also the most returns each year.

Adding a Join​

We'll enhance our analysis by adding a dataset with regional sales representatives.

Download the files here:

Problem​

  1. Determine the sales representative who has the least amount of return orders.

Steps​

Go back to the Datasource tab to do the second join:

  • Double-click Orders 2016-2020.
  • Drag Sales Reps to the right and drop it.
  • Click the join icon, select "Left Join," and join on "Region."

Create the chart for the returned orders per sales representative:

  • Create a new worksheet and rename it Returned Orders by Sales Rep.
  • Drag Orders 2016-2020 to Columns and Order Date to Rows.
  • Set Marks type to "Bar".
  • Drag Person to Color in the Marks card.
  • Drag Returned to Filters → Select "Yes" → Click OK.
  • Click Label in the Marks card → Enable Show Marks Label.
  • Change the view from "Standard" to "Entire View".

Solution​

Findings​

  1. Cassandra Brandow has the lowest number of return orders
