Install and Configure Tomcat as the Staging Environment
Overview
This lab installs and configures Tomcat as a staging environment for application deployment.
Diagram:
The tree-structure of our Project One currently looks like this. Don't worry if you see that there's already a lot of files in the directory. These are the files from the previous labs in this series. The only ones we'll really really need are provided below.
Project One
ansible.cfg
[defaults]
# E: variables for my personal lab
inventory = ~/proj-ansible-1/one/inventories/edendev.inv
remote_user = eden
private_key_file = ~/.ssh/id_rsa
host_key_checking = False
retry_files_enabled = False
timeout = 24
gather_facts = smart
[privilege_escalation]
become_method = sudo
become=True
become_user=root
become_ask_pass=True
#ansible_managed = "# This file is managed by Ansible, all local changes will be lost !"
#allow_world_readable_tmpfiles = True
#precedence = all_plugins_play, all_inventory, groups_plugins_play, groups_inventory, all_plugins_inventory, groups_plugins_inventory
#any_errors_fatal = True
#timeout = 24
[paramiko_connection]
#record_host_keys = False
[ssh_connection]
scp_if_ssh = True
pipelining = True
symlink in root directory pointing to projects folder
$ ls -la | grep "\->"
lrwxrwxrwx 1 joseeden joseeden 70 Jan 14 23:03 proj-ansible-1 -> /mnt/c/Users/Eden Jose/4-Projects
edenjen.inv
[webservers]
app1 ansible_host=13.251.146.254
app2 ansible_host=122.248.203.239
app3 ansible_host=52.76.189.254
app4 ansible_host=54.255.28.202
[jenkins]
jenkinsmaster ansible_host=13.228.99.157
[local]
localhost ansible_connection=local
This lab is build on top of the previous lab and is also a part of the Jenkins lab series. For this one, we'll be deploying a Tomcat server. At this point, you should have deployed Jenkins which is using the port 8080. This is important to note because the default port of Tomcat is also 8080 and this will cause conflict. We'll be changing the Tomcat port to 8081 in our playbook.
Following this two useful links online:
From the steps in the links above, we build our playbook.
install-tomcat.yml
# installs tomcat - needed for Jenkins lab
---
- name: Install tomcat
hosts: jenkins
become: true
tasks:
- name: Ensure group "tomcat" exists
ansible.builtin.group:
name: tomcat
state: present
system: true
- name: Add user+group for Tomcat
ansible.builtin.user:
name: tomcat
shell: /bin/false
groups: tomcat
home: /usr/local/tomcatlink
state: present
- name: Get latest version of Tomcat and set in variable
set_fact:
ver: 9.0.58
- name: Download files for Tomcat
get_url:
url: https://archive.apache.org/dist/tomcat/tomcat-9/v{{ ver }}/bin/apache-tomcat-{{ ver }}.tar.gz
dest: /usr/local
- name: Extract downloaded archive for Tomcat
ansible.builtin.unarchive:
src: /usr/local/apache-tomcat-{{ ver }}.tar.gz
dest: /usr/local
remote_src: yes
owner: tomcat
group: tomcat
- name: Create symbolic link for Tomcat - Getting error so create dir dirst
ansible.builtin.file:
src: /usr/local/apache-tomcat-{{ ver }}
name: /usr/local/tomcatlink
state: directory
# force: yes
- name: Empty dir
ansible.builtin.file:
src: /usr/local/apache-tomcat-{{ ver }}
name: /usr/local/tomcatlink
state: absent
# force: yes
- name: Create symbolic link for Tomcat
ansible.builtin.file:
src: /usr/local/apache-tomcat-{{ ver }}
name: /usr/local/tomcatlink
state: link
owner: tomcat
group: tomcat
force: yes
- name: Set ownership of symbolic link for Tomcat
ansible.builtin.file:
name: /usr/local/tomcatlink
state: link
owner: tomcat
group: tomcat
- name: Create /etc/systemd/system/tomcat.service
copy:
dest: "/etc/systemd/system/tomcat.service"
content: |
[Unit]
Description=Apache Tomcat Server
After=syslog.target network.target
[Service]
Type=forking
User=tomcat
Group=tomcat
Environment=CATALINA_PID=/usr/local/tomcatlink/temp/tomcat.pid
Environment=CATALINA_HOME=/usr/local/tomcatlink
Environment=CATALINA_BASE=/usr/local/tomcatlink
ExecStart=/usr/local/tomcatlink/bin/catalina.sh start
ExecStop=/usr/local/tomcatlink/bin/catalina.sh stop
RestartSec=10
Restart=always
[Install]
WantedBy=multi-user.target
- name: Change tomcat port to use 8081
ansible.builtin.replace:
path: /usr/local/apache-tomcat-{{ ver }}/conf/server.xml
regexp: '(\s+)<Connector port="8080"(\s+.*)'
replace: '\1<Connector port="8081"\2'
# Uncomment play below if you have firewalld
# - name: FirewallD rules
# firewalld:
# permanent: yes
# immediate: yes
# port: 8081/tcp
# zone: public
# state: enabled
- name: Configure users on tomcat-users.xml
ansible.builtin.lineinfile:
path: /usr/local/tomcatlink/conf/tomcat-users.xml
insertbefore: "^</tomcat-users>"
line: |
<role rolename="admin-gui"/>
<role rolename="manager-gui"/>
<user username="tomcat1" password="tomcat1993" roles="admin-gui,manager-gui,manager-script"/>
- name: Enable Remote Access to Tomcat Manager
ansible.builtin.lineinfile:
path: /usr/local/apache-tomcat-{{ ver }}/webapps/manager/META-INF/context.xml
regexp: 'allow="127\.\d+\.\d\+\.\d\+|::1|0:0:0:0:0:0:0:1" />'
line: ' allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1 |.*" />'
state: present
- name: Enable Remote Access to Tomcat Host-manager
ansible.builtin.lineinfile:
path: /usr/local/apache-tomcat-{{ ver }}/webapps/host-manager/META-INF/context.xml
regexp: 'allow="127\.\d+\.\d\+\.\d\+|::1|0:0:0:0:0:0:0:1" />'
line: ' allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1 |.*" />'
state: present
- name: Force systemd to reread configs
systemd:
daemon_reload: yes
- name: Ensures Tomcat is started
systemd:
name: tomcat
enabled: yes
state: started

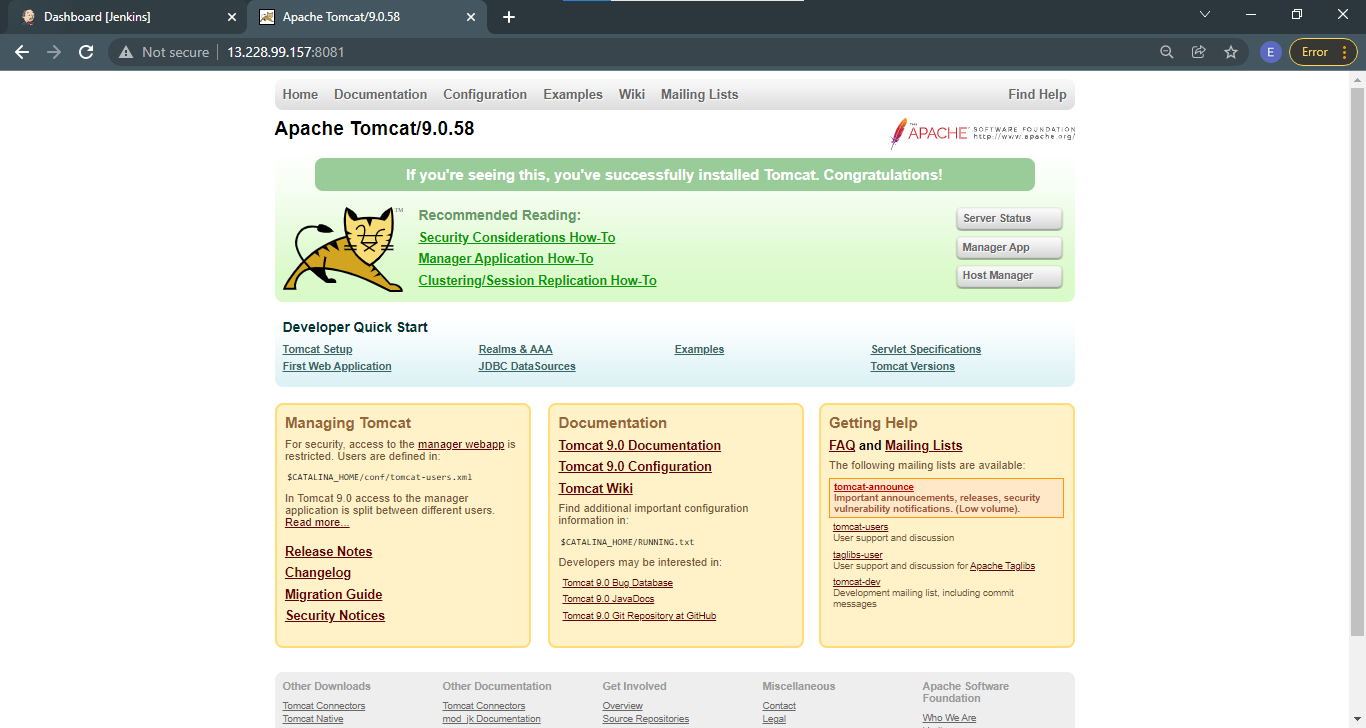

Now to test, get the IP of the Jenkins server and paste it on your browser, followed by ":8081"
http://13.228.99.157:8081/

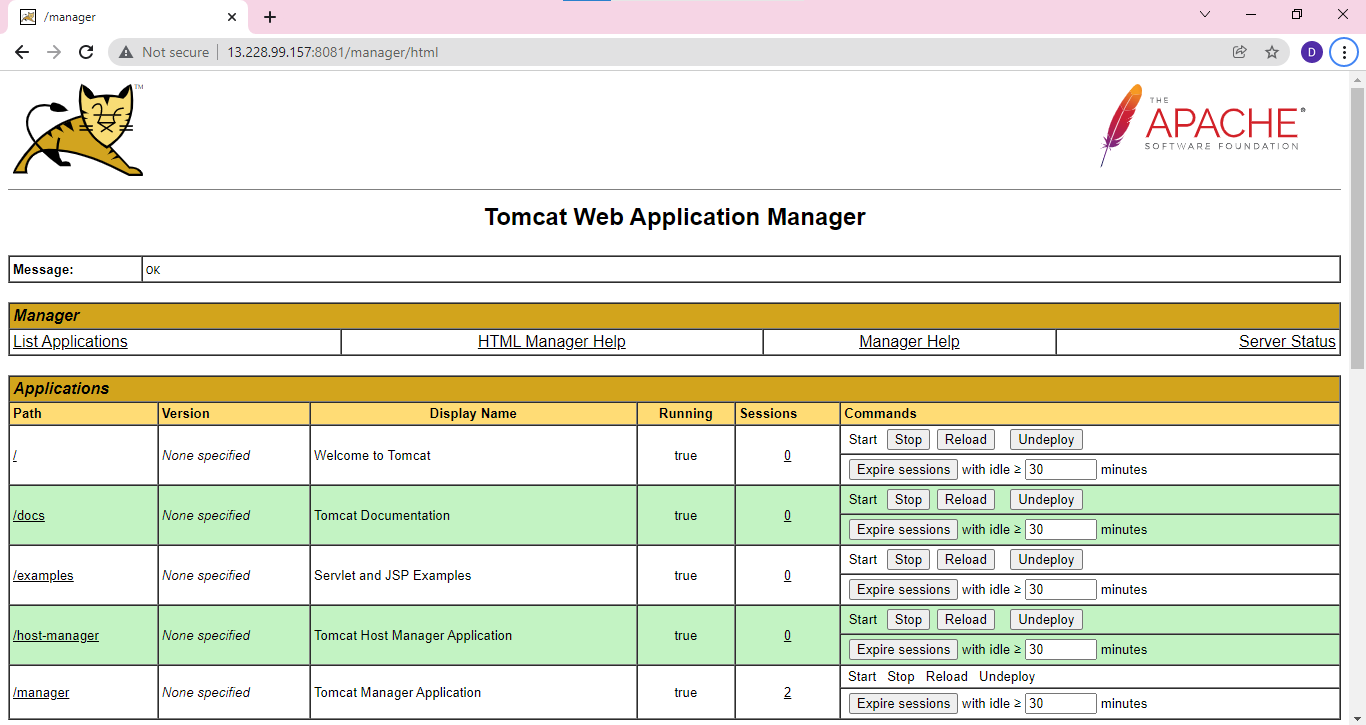

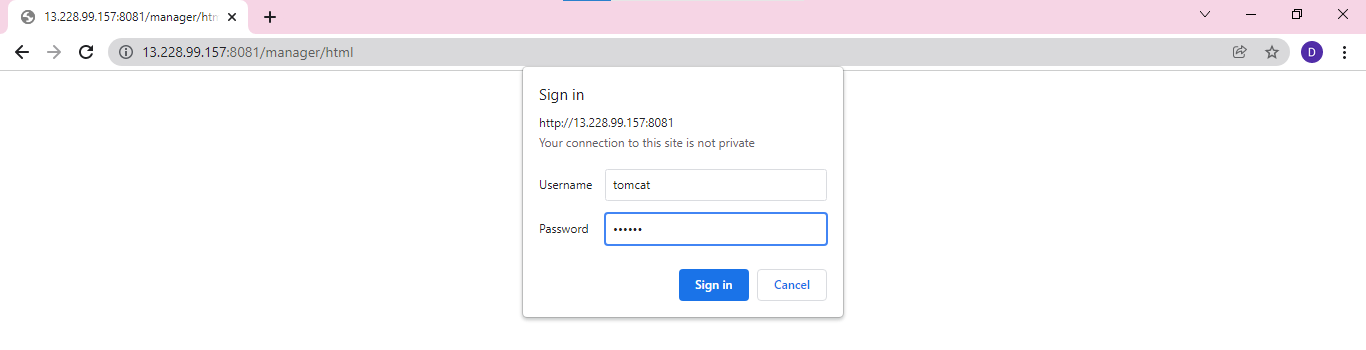

Check if you're able to access the Manager App by clicking the button on the right. You may also go to this link below. It should prompt you with the tomcat username and password. We set this in the playbook. Note that there are correct ways to set credentials and fetching them through runtime.
http://13.228.99.157:8081/manager

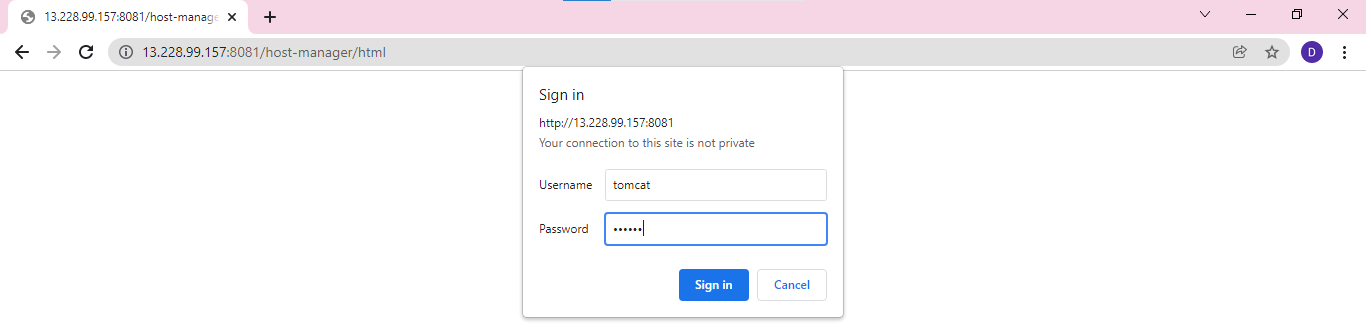

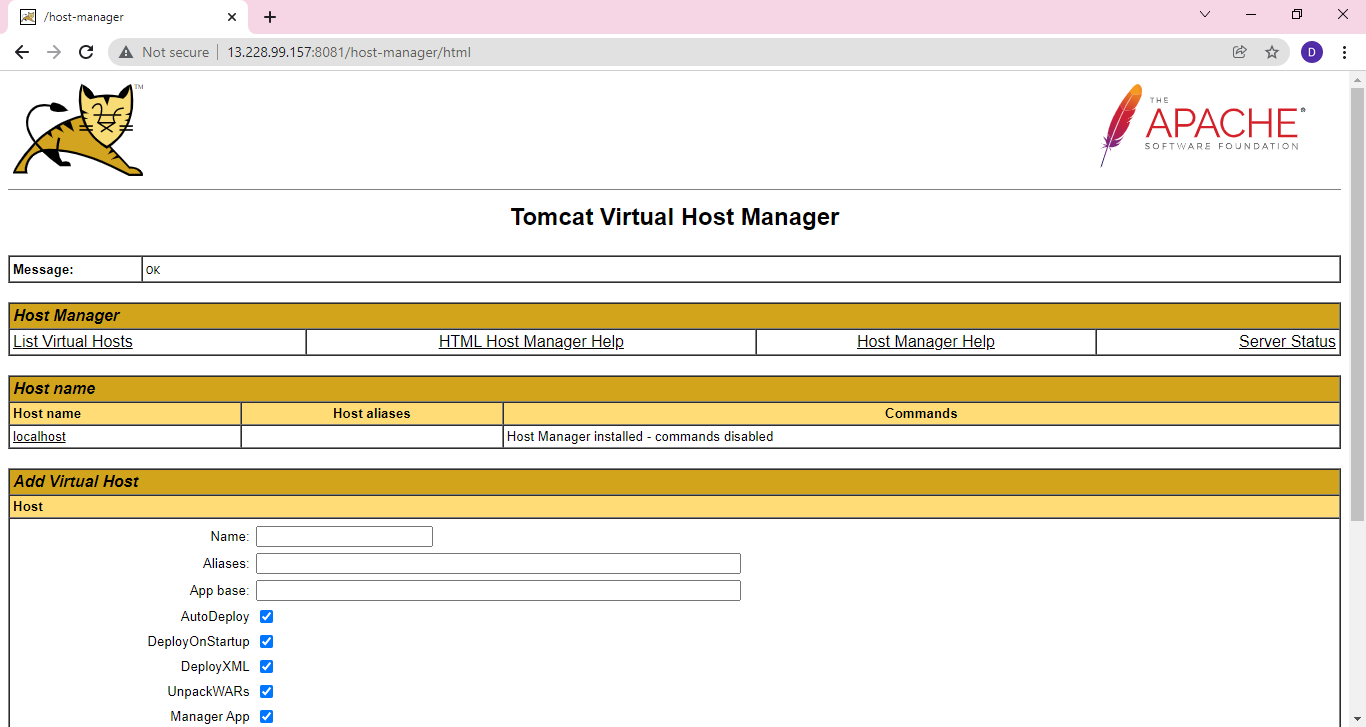

Do the same for the Host-manager. Enter the tomcat username and password.
http://13.228.99.157:8081/host-manager/html
